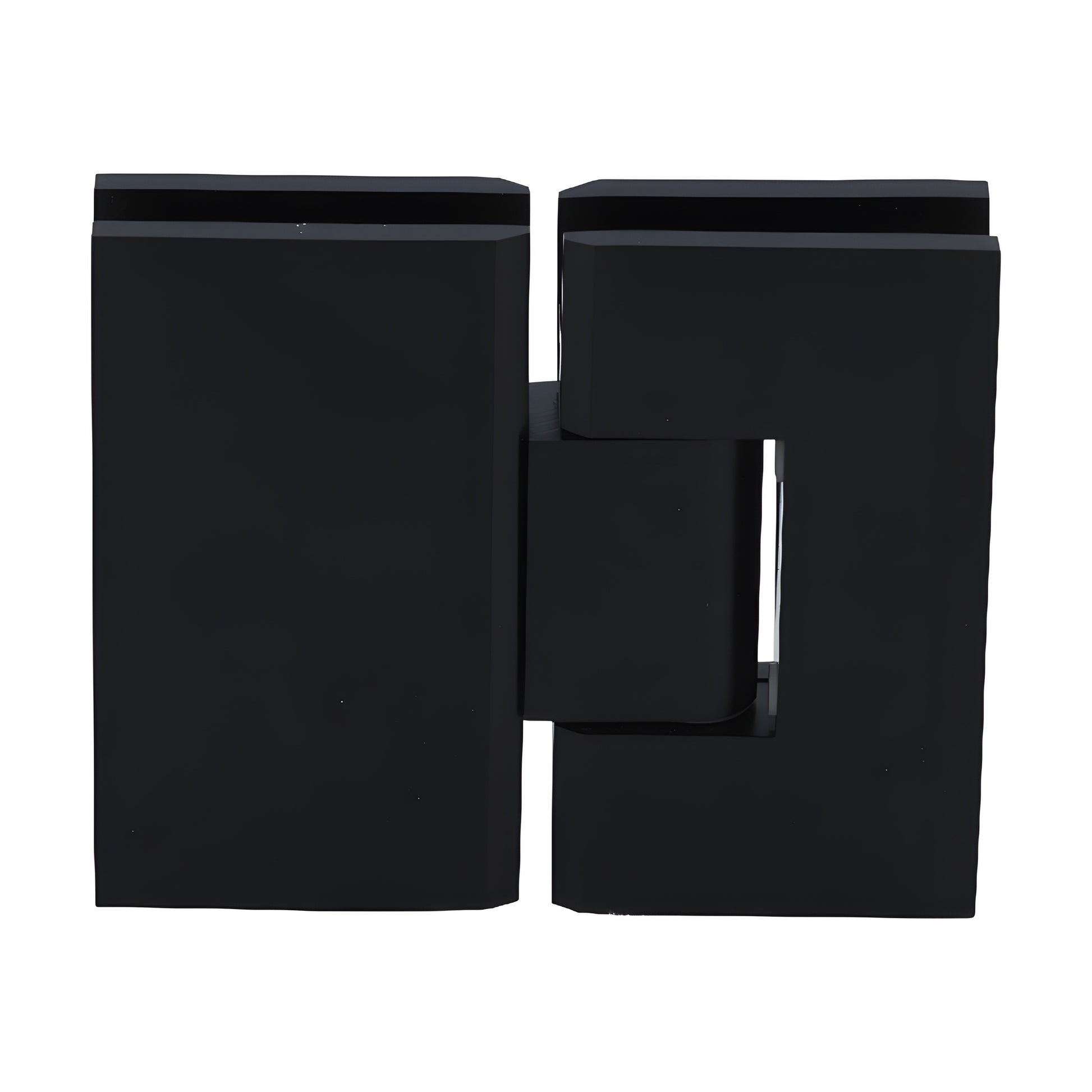

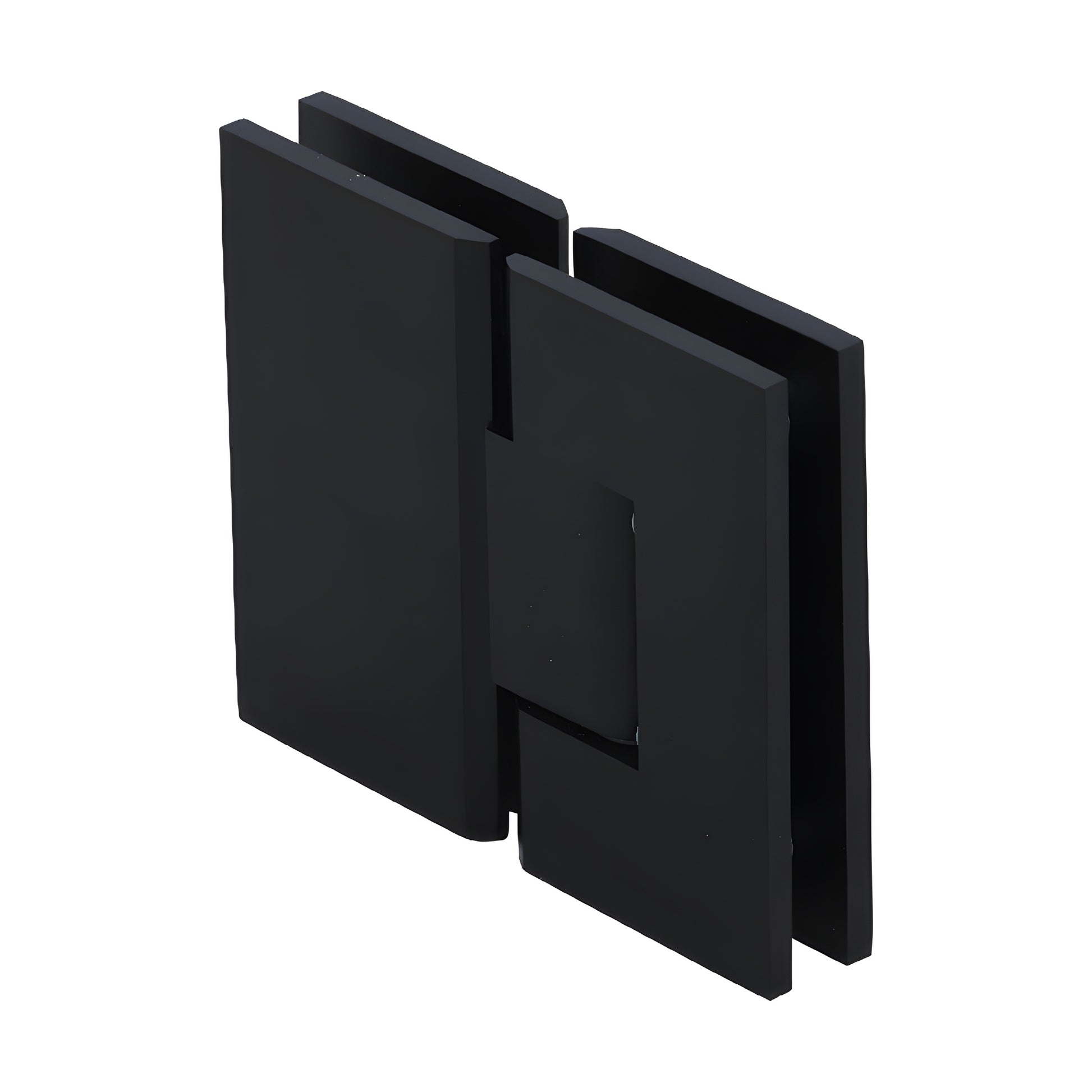

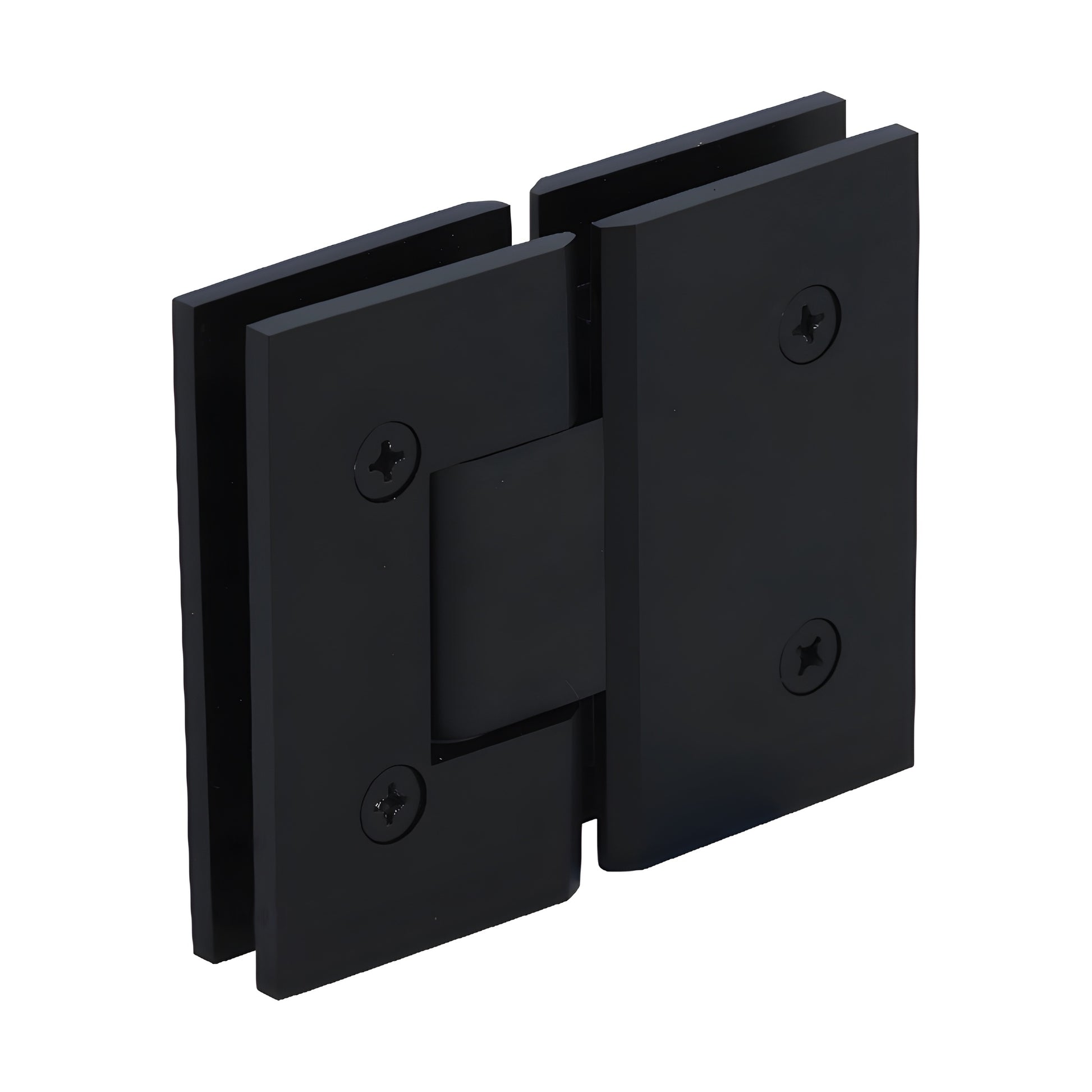

CRL Vienna 180° Oil Rubbed Bronze Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges — SKU: V1E1800RB are heavy-duty shower door hinges engineered for wider, heavier frameless glass shower doors where traditional hinges fail. Two internal steel pins provide mounting template flexibility: leave both pins in for CRL "mouse-ears" cut-outs, or remove them for rectangular, square-cornered cut-outs (including some competitive profiles). These features make the Vienna Hinge a versatile choice for custom frameless glass shower door installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; pre-set models ship at 85° for a 5° tighter closure toward the shower interior. Rotate (do not flip) the pin to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins up to 45° are available to accommodate off-angle walls and non-90° installations—ideal for custom frameless shower door projects.

PERFORMANCE:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact CRL Technical Sales, Shower Door Department, for finish and custom pivot pin options.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
