CRL Oversize Thru-Wall Transaction Drawer - Extra Large Pass-Through
Item# TD1727TW
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Code Compliances
UL 752
Depth
27 in. (685.8 mm)
Finish/Color
Brushed Stainless Steel
Height
14-5/8 in. (371.5 mm)
Material
Stainless Steel
Protection Level
1
Width
17 in. (431.8 mm)
- Popular Thru-wall and In-Counter Models
- Level 1 Bullet Resistant Protection

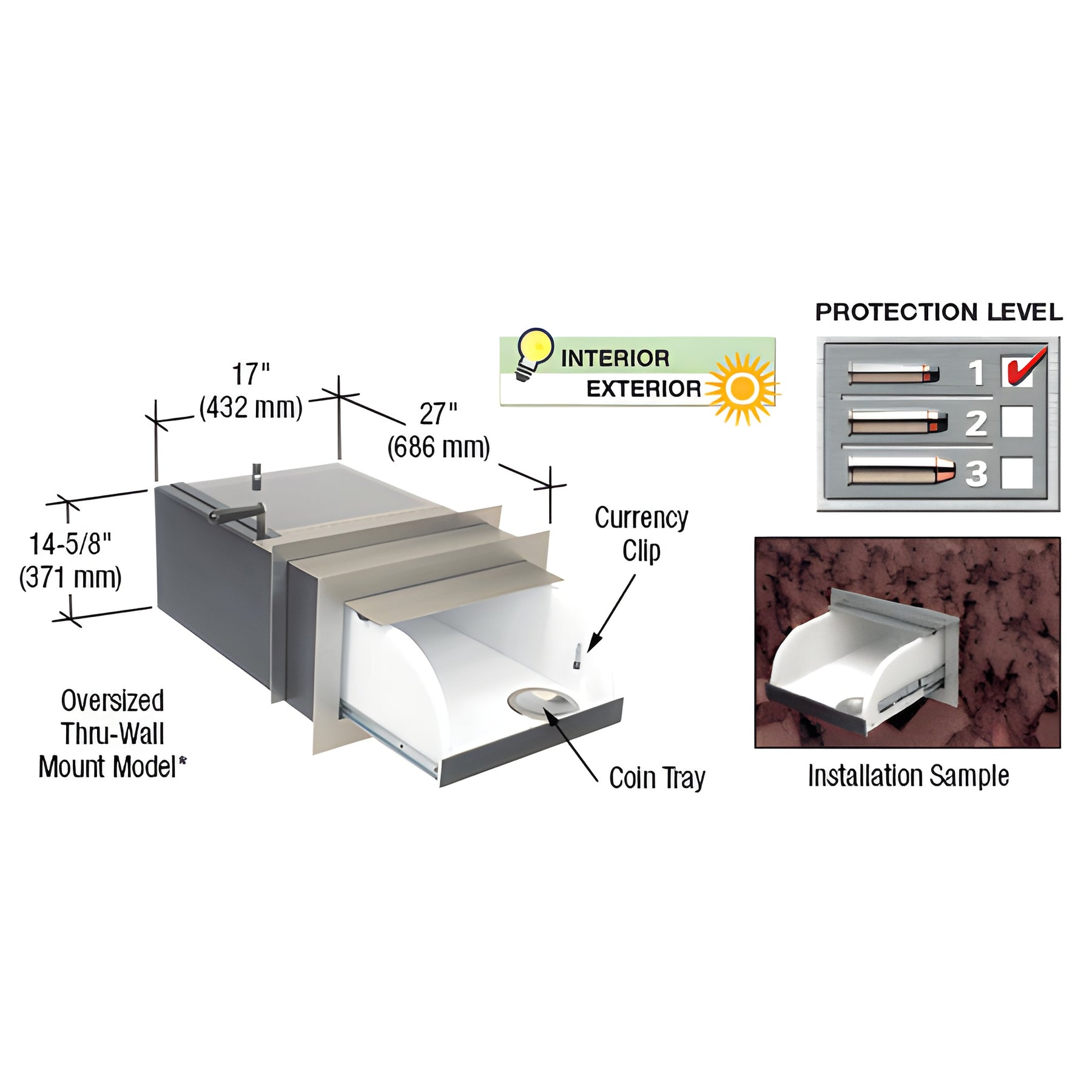

Offering the same features as our Large Capacity Transaction Drawer, the CRL Oversized Transaction Drawer (SKU: TD1727TW) accepts larger items and is designed for secure pass-through applications. Available for in-counter mount or thru-wall installation, this heavy-duty pass-through drawer is ideal for banks, convenience stores, fast food restaurants, pharmacies, and other high-throughput environments. A latching knob secures the lid when closed. Interior dimensions: 12-7/8" (327 mm) W x 23-3/4" (603 mm) D x 11" (279 mm) H. Custom sizes and Level 3 bullet resistant versions are available by special order.
SPECIFICATIONS:
Materials: Stainless Steel; Lexan; Bullet Resistant Plastic; Bullet Resistant Fiberglass/Wood Composite
Finish: 11 Gauge Brushed Stainless Steel (Face Plate Only) #4 Finish; Black Plastic Laminate
Instructions Included
Counter or Wall Fabrication Required
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary by monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care details.
Contact CRL Customer Service to request a quote or to order SKU TD1727TW today.
CAD Drawings - dwg
