CRL
CRL P1 Series Brushed Stainless Gate Post 2.5" Post Mount with 2" Cap
CRL P1 Series Brushed Stainless Gate Post 2.5" Post Mount with 2" Cap
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SG25P1BS20C
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Rail Type
Standard
Cap Rail Diameter
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Overview
- 16 Configurations to Choose From
- Wall or Post Mount models
- Four handing options
- Stainless steel, anodized, and painted finishes
- Every swinging gate is custom fabricated to your requirements
- Optional locks available

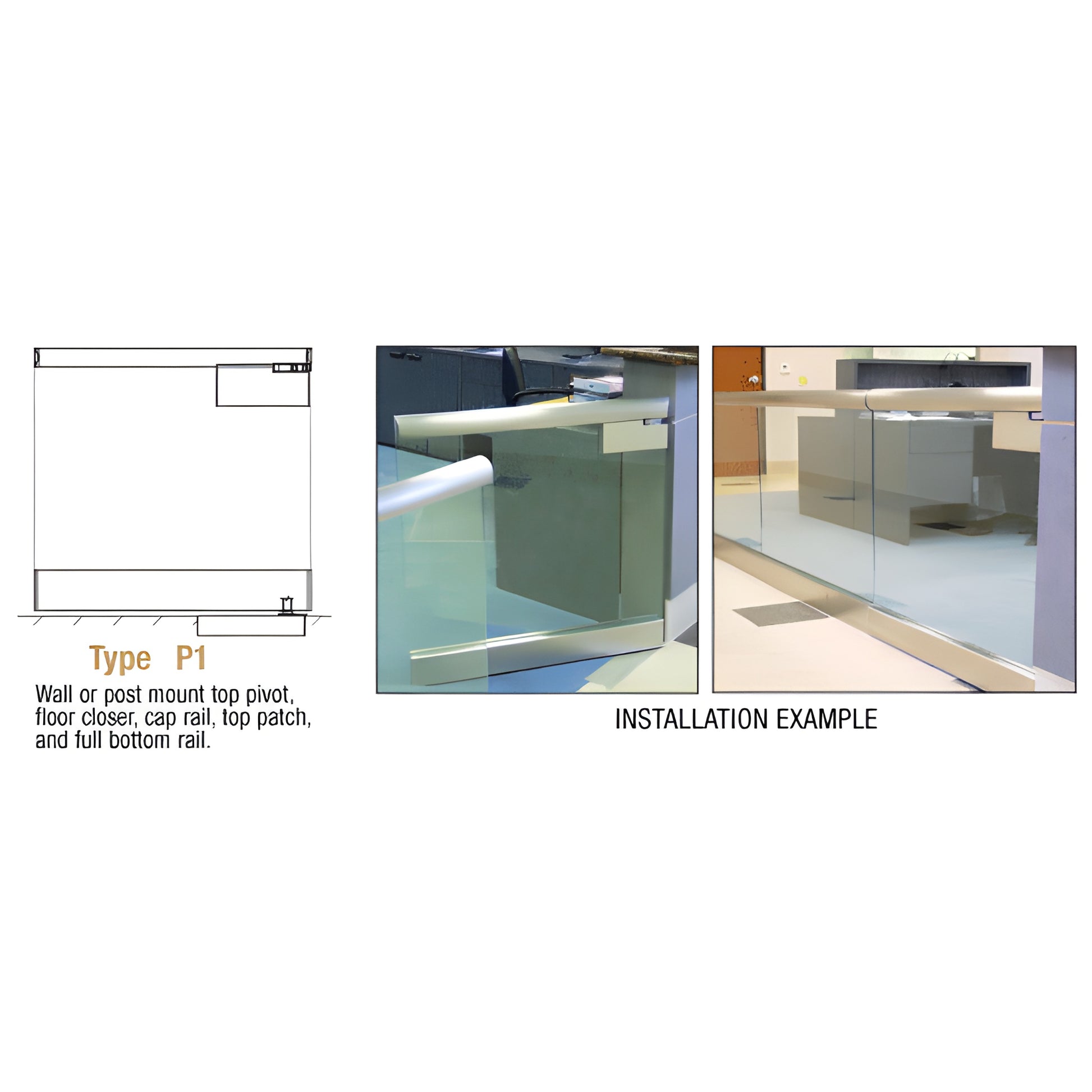

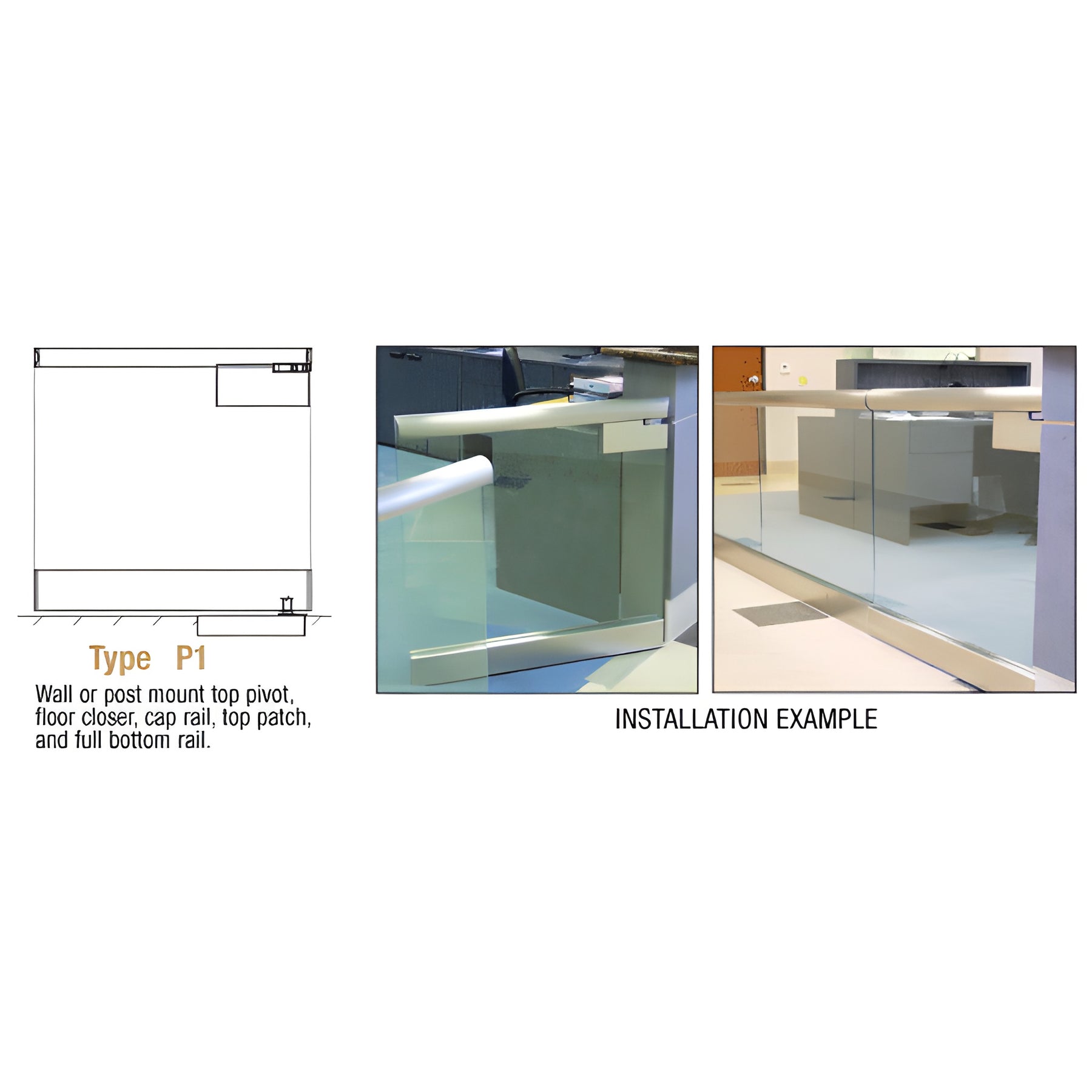

We offer the CRL Series of Swinging Gates (SKU: SG25P1BS20C) engineered for commercial and residential applications, including integration with HRS Glass Rail System and HRS Cap Rails. These custom-fabricated swinging gates are derived from our Wedge-Lock® Door Rail System and can be modified to match adjacent fixed railing Base Shoe widths. The upper patch fitting is adapted for mounting to a stainless steel bracket or accommodating a cap rail. The top pivot uses a heavy-duty ball bearing while the bottom uses a floor-mounted commercial door closer that always returns the gate to the closed position; the closing speed is fully adjustable. Available as wall-mounted or post-mounted models—ideal for a custom stainless steel swinging gate for glass rail installations and other long-tail use cases.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Please contact CRL Technical Sales for specifications, lead times, or a quote.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for care and maintenance guidance.
Get a custom quote or specification sheet for SKU SG25P1BS20C — contact CRL Technical Sales today.
Specifications
CAD Drawings - pdf
