CRL P2 Series Polished Stainless Steel Left-Hand End Post Railing Kit
CRL P2 Series Polished Stainless Steel Left-Hand End Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P236LEPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

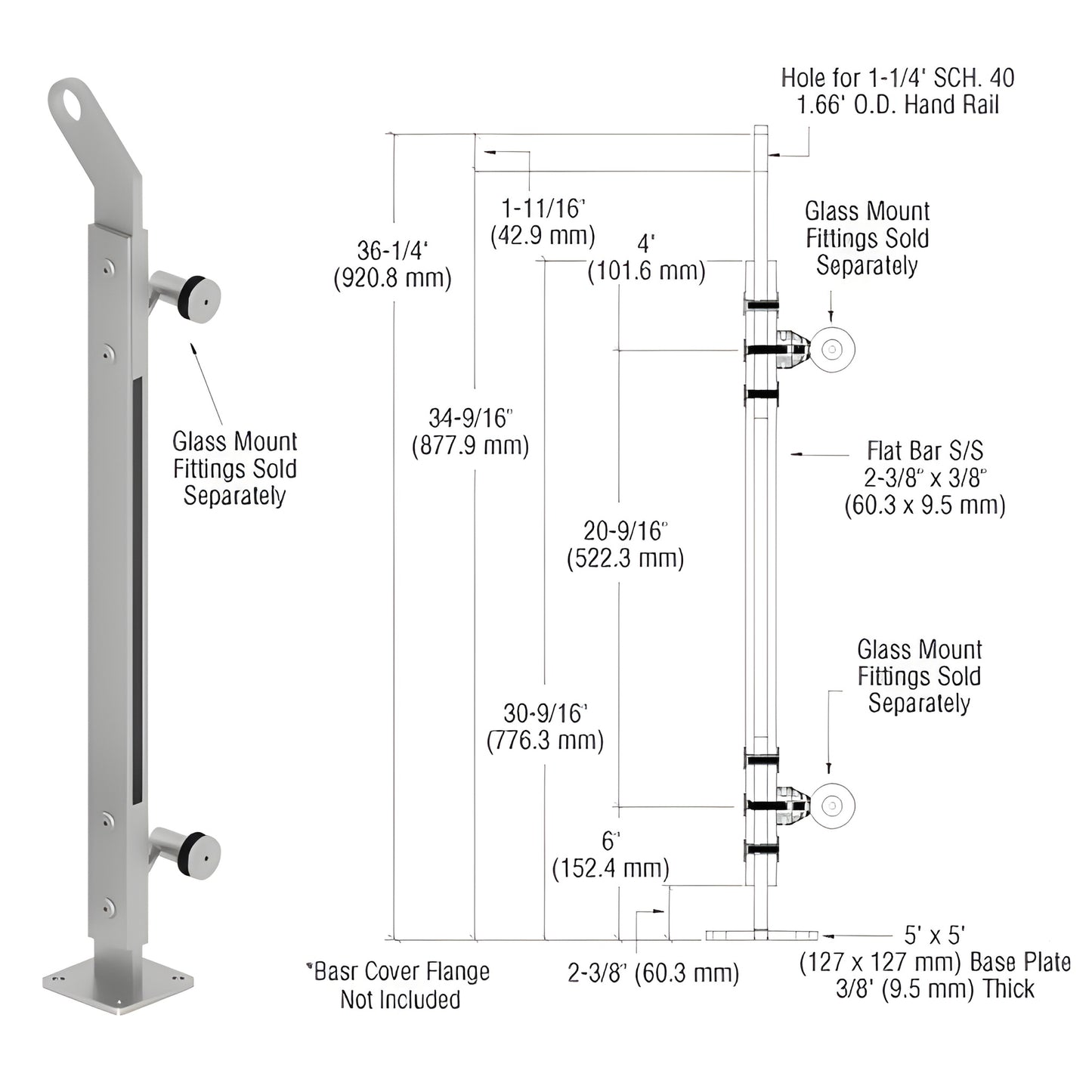

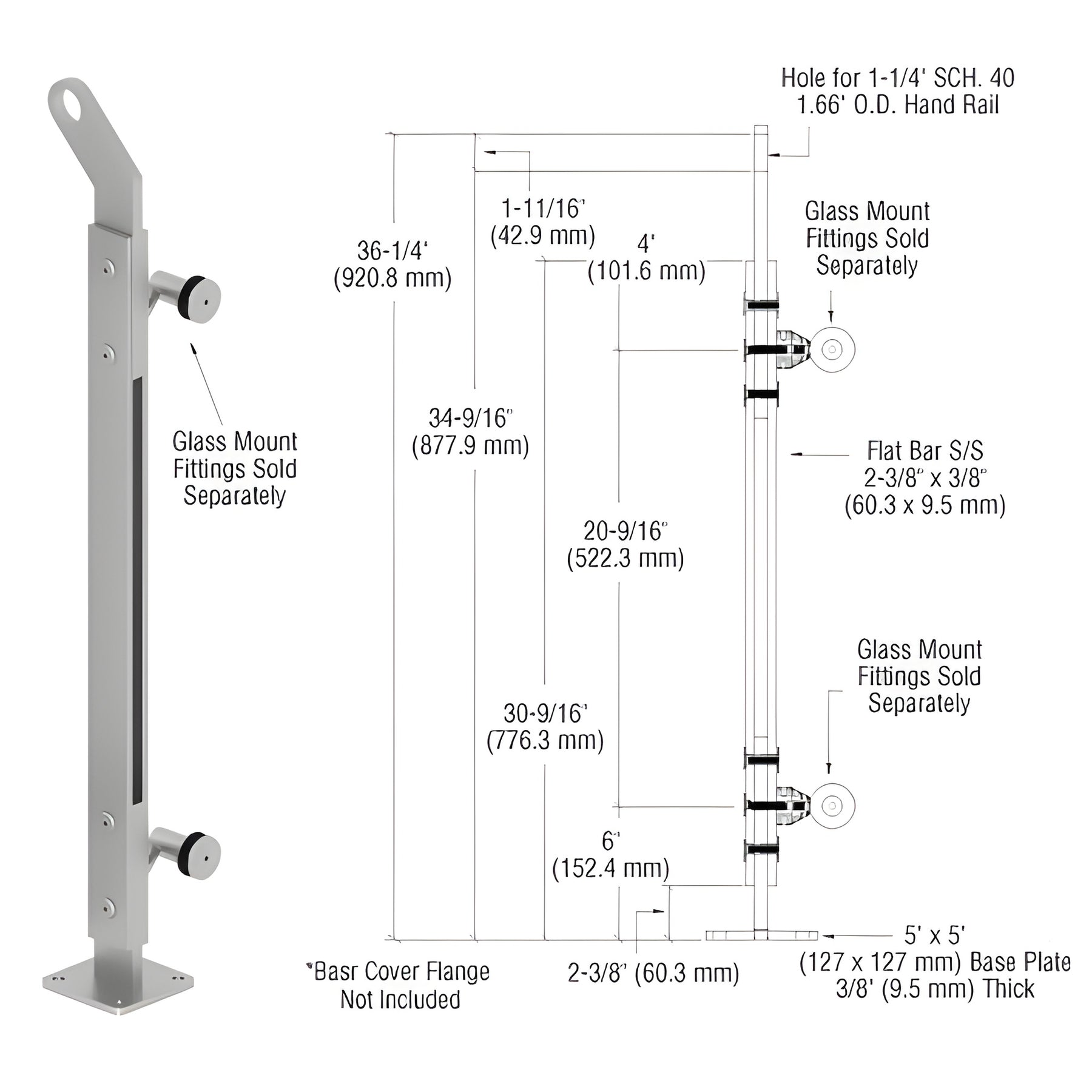

Description
Alloy
304
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail code standards
- Supports 1-1/4" (32 mm) Schedule 40 (1.66" OD) horizontal handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1067 mm); custom heights available
- Two standard stainless finishes; custom powder coat finishes also available
CRL P2 Post Railing Kits are surface-mounted stainless steel post railing kits for commercial and residential guardrail applications. Manufactured from stainless steel flat bars, the P2 kits include a base plate and are prepped for CRL standard glass mount fittings—ideal for glass panel railing systems that meet or exceed code standards.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass mount fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more details.
Optimize your project with P2 surface-mounted stainless steel post railing kits—contact CRL or order accessories now.
