CRL P3 Polished Stainless Steel 180° Center-Post Railing Kit
CRL P3 Polished Stainless Steel 180° Center-Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P336CPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Angle
180
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Glass Included
No
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Meets or exceeds guardrail and handrail code standards
- Standard post heights: 36" (914 mm) and 42" (1067 mm); custom heights available
- Two standard stainless steel finishes; custom powder-coated finishes available
- Glass attachment fittings and handrail brackets sold separately

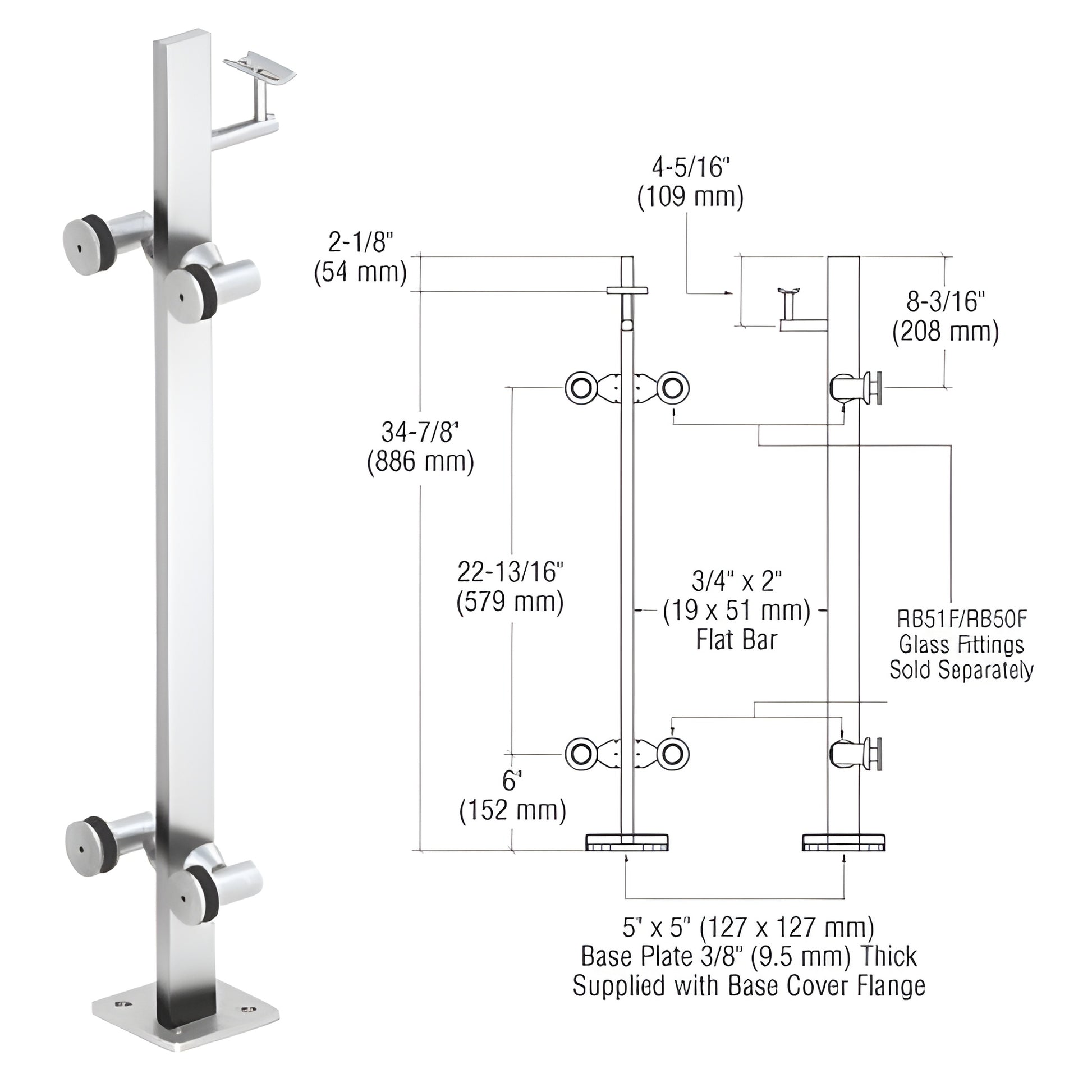

CRL P3 Surface Mounted Post Railing Kits (SKU: P336CPSC) are engineered for commercial and residential glass railing installations that meet or exceed applicable code. Manufactured from 3/4" x 2" (19 x 51 mm) stainless steel flat bar, each kit includes a 5" x 5" (127 x 127 mm) base plate and base plate cover. Handrail brackets and fixed or swivel glass mount fittings are available separately for configurable glass-panel installations.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; purchase glass fittings separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need help selecting the right stainless steel surface mounted post railing kit for your glass balcony or stair system? Contact CRL or order SKU P336CPSC today.
