CRL P5 Series 180° Center Post Stainless Steel Glass Railing Kit
CRL P5 Series 180° Center Post Stainless Steel Glass Railing Kit
Regular price
$1,806.54 CAD
Regular price
Sale price
$1,806.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P542CPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick glass or panel infill
- Glass fabrication required (glass attachment fittings sold separately)
- Meets or exceeds guardrail code standards
- Supports 1-1/4" or 1-1/2" (32 or 38 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available

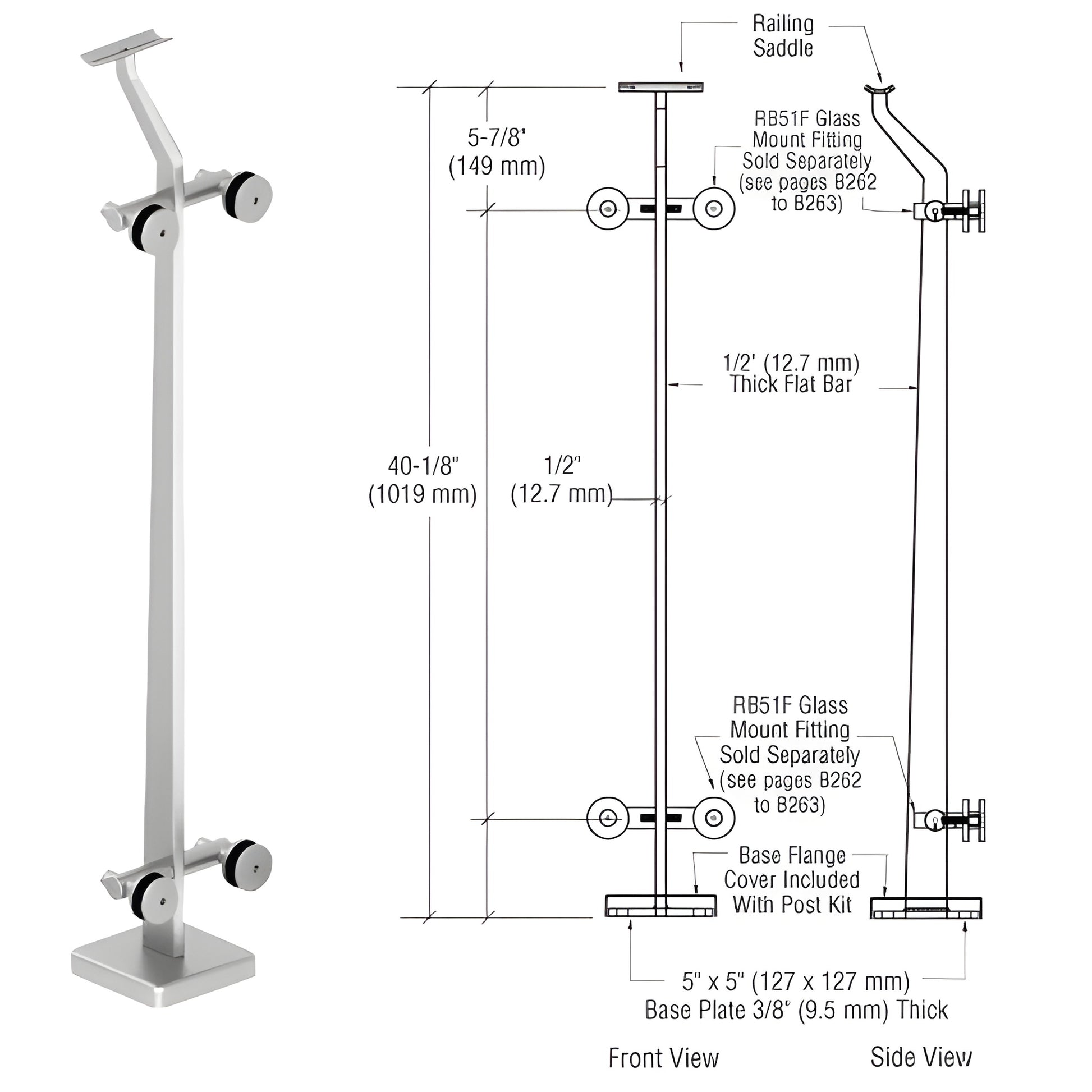

CRL P5 Series Post Railing Kits (SKU: P542CPS) are engineered stainless steel glass railing posts for commercial and residential applications. Manufactured from flat bar stainless steel, P5 posts are designed to support Schedule 40 horizontal tubing and provide a code-compliant solution for frameless and semi-frameless glass railing systems.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Glass attachment fittings must be purchased separately and require professional glass fabrication and installation.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Need a custom height or finish for your glass railing project? Contact CRL for pricing and lead times.
