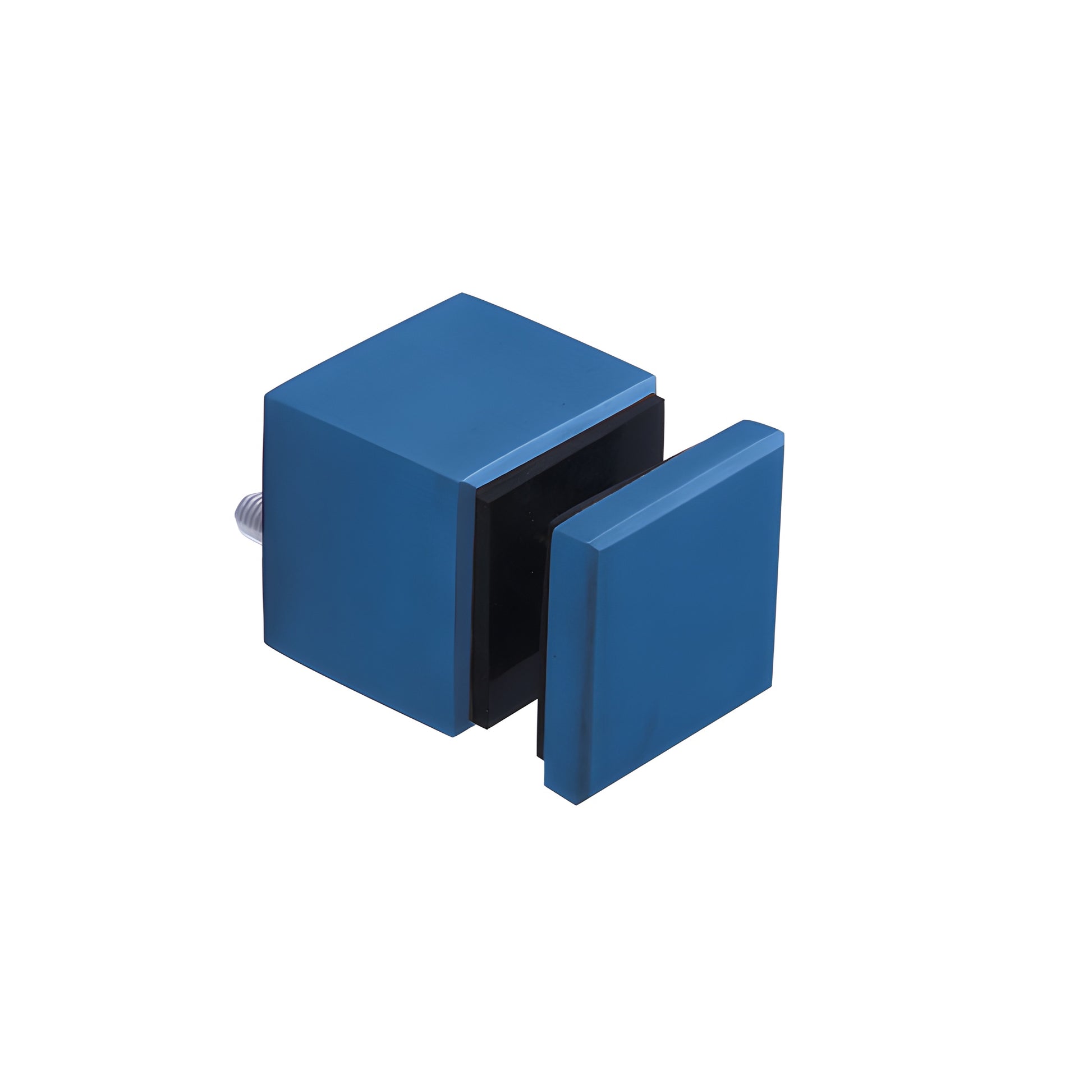

CRL Painted Square Glass Standoff Base & Cap — 1-3/4 in Projection

• Compact 2" square standoff fitting with base, cap, and mounting stud for secure attachment to steel, concrete, or wood substrate
• Compatible with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
• Heavy-duty Type 316 stainless steel construction for corrosion resistance in coastal and exterior applications

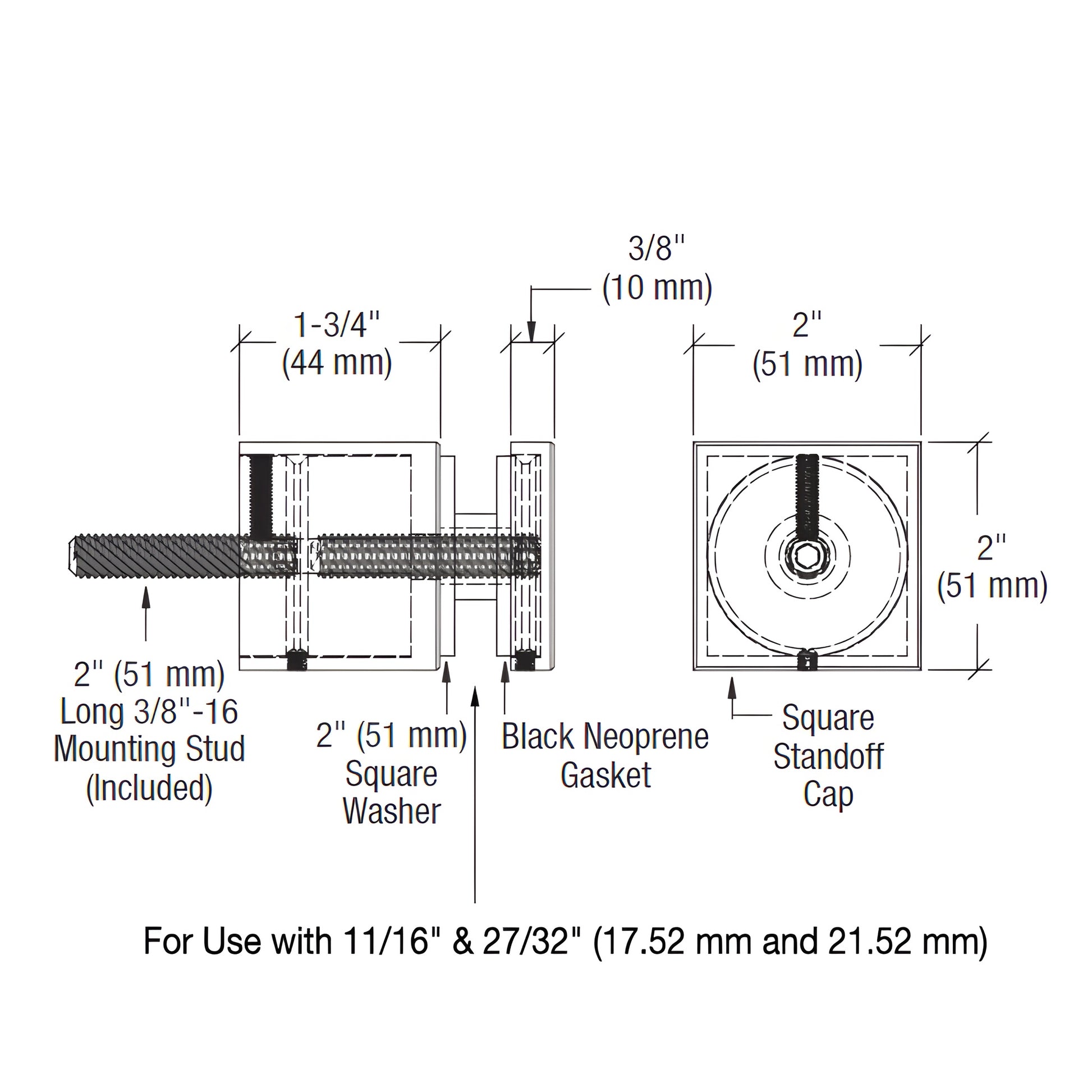

These heavy-duty CRL Glass Rail Standoff Base and Caps (SKU: SS0B2134PT) are engineered for hand and guard rail systems. The standoff fitting is 2" (51 mm) square with a 1-3/4" (44.5 mm) base and includes a 3/8"-16 x 2" Allen stud for mounting to steel, plus the required gaskets and grommet. Use Cat. No. SSW12 Spanner Wrench to tighten the cap. Available in brushed or polished 316 stainless steel finishes for durable, attractive glass railing hardware.

SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) tempered monolithic or tempered laminated glass (Do not use with raw or annealed glass).
Glass fabrication: One 3/4" (19 mm) diameter hole per fitting.
Spacing: Maximum spacing between fittings depends on application and mounting conditions; minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available upon request.

Product Warning:

For use only with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. Note: Bracket spacing and maximum glass panel widths vary by application and mounting conditions—consult engineering guidelines for glass rail and standoff mounting.

Order SS0B2134PT for durable 316 stainless steel glass standoffs—contact us or add to cart to get started.
