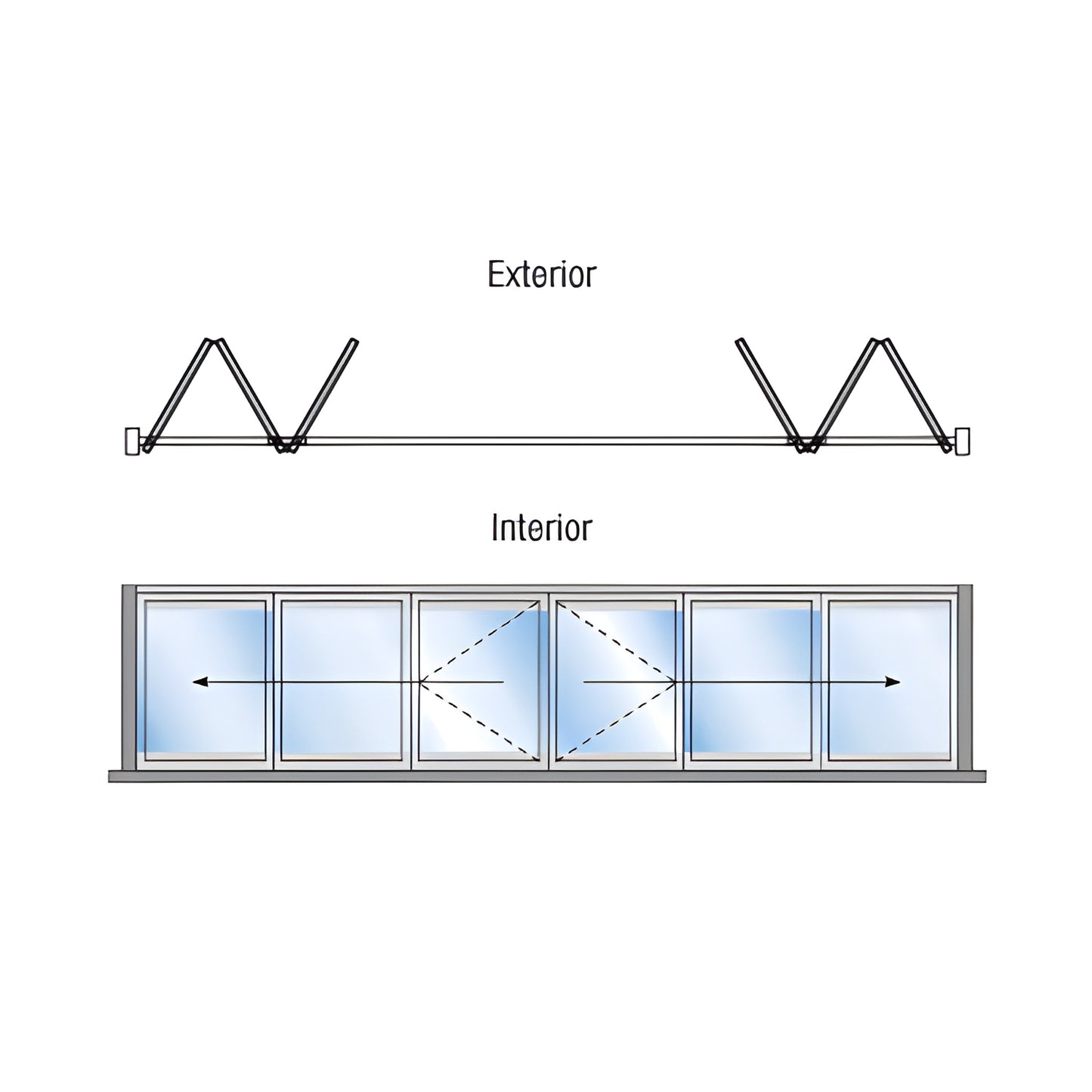

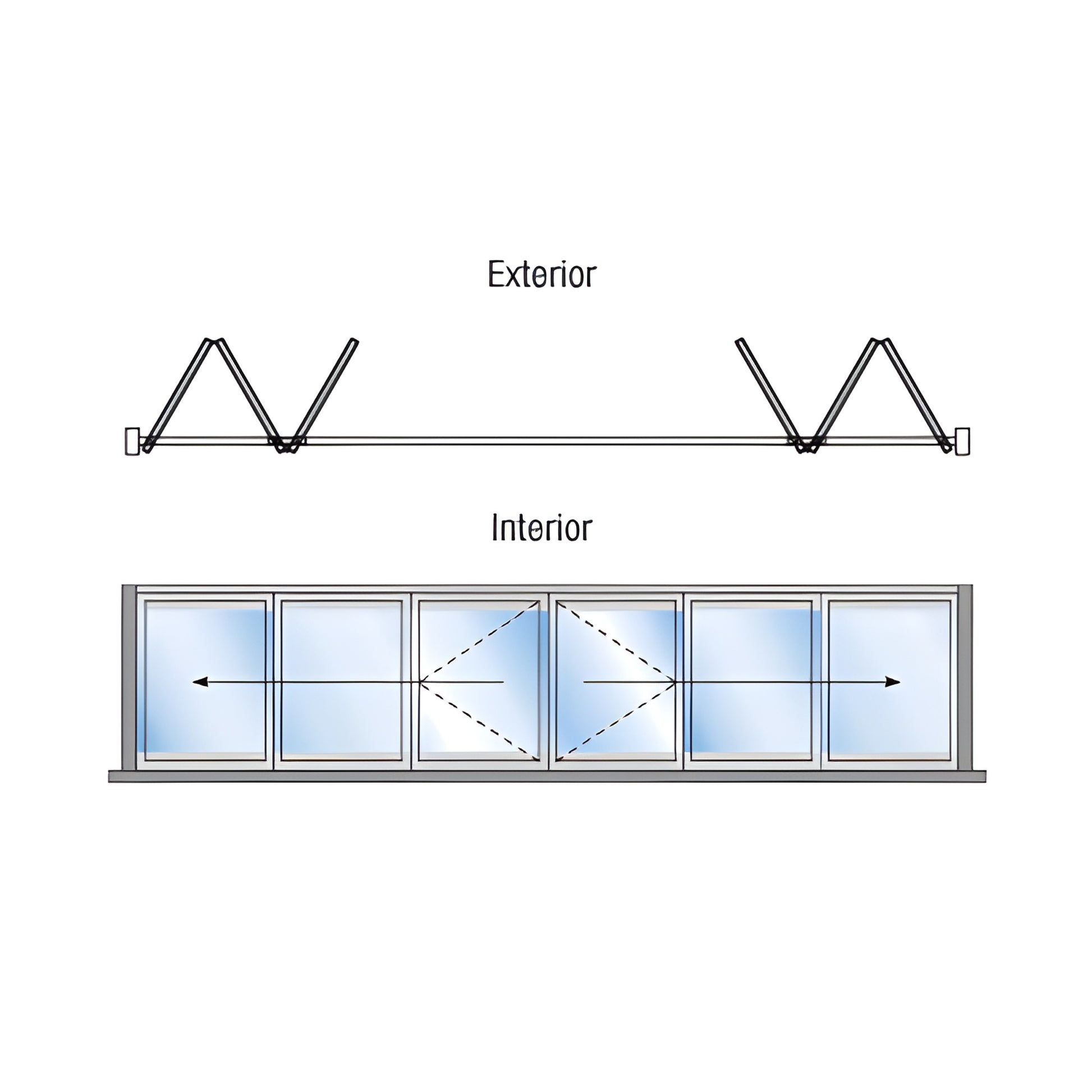

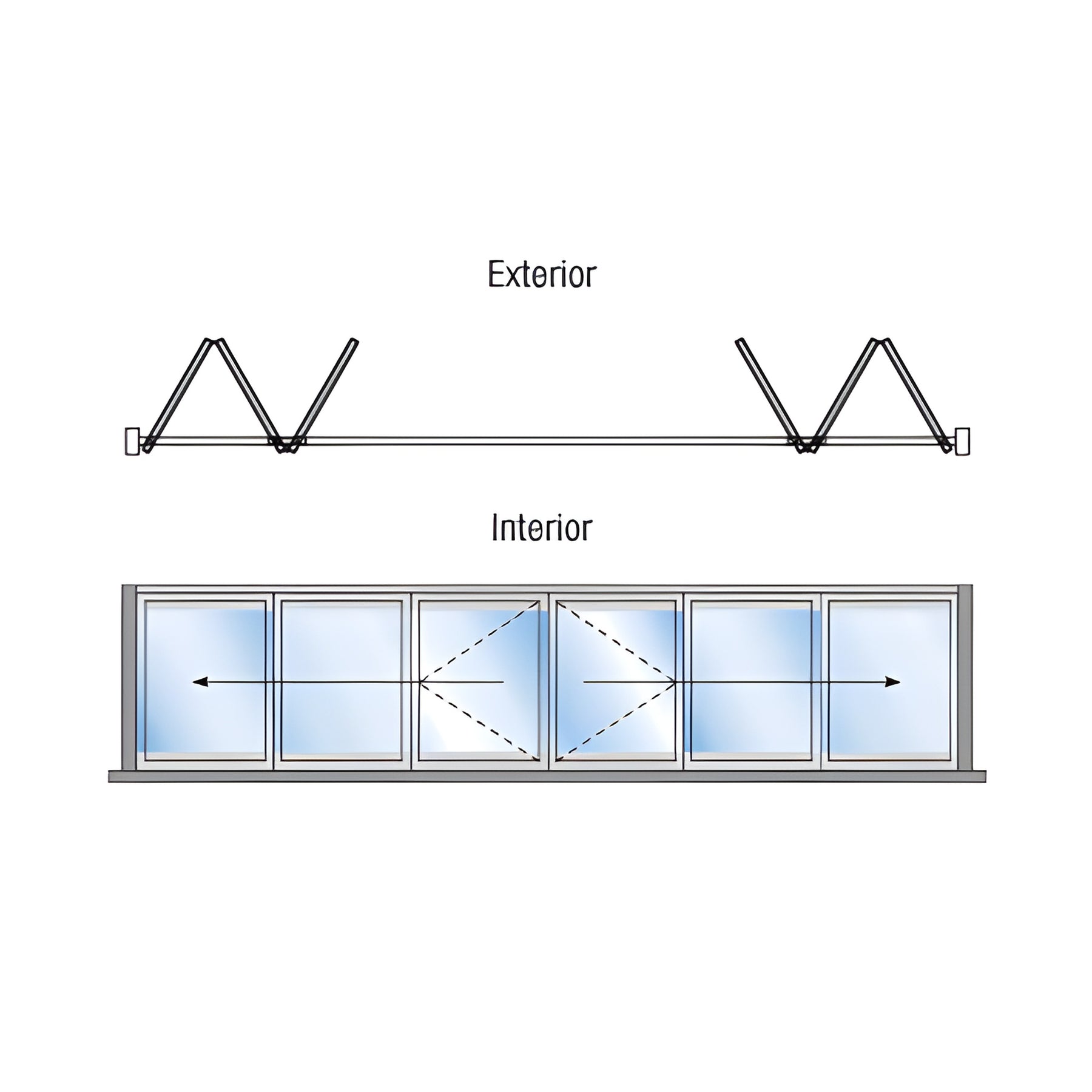

CRL Palisades S90 3+3 Bronze Bi-Fold Door w/ Raised Sill & Lever Lock
CRL Palisades S90 3+3 Bronze Bi-Fold Door w/ Raised Sill & Lever Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M9B33R0DUL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
3 Point Keyed Lock
Yes
Acoustic Rating
32
Door Configuration
4 Panel Right Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Black Bronze Anodized
Frame Depth
3-1/2 in. (89 mm)
Glazing Thickness
1 in. (25 mm)
Height Adjustment
1/16 in. (2 mm)
Material
Aluminum
Maximum Door Height
144 in. (3658 mm)
Maximum Panel Width
48 in. (1219 mm)
Panel Count
4
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Swing
Exterior
Thermally Broken
Yes
Top Hung
No
Overview
- Maximum frame height: 12 feet; maximum panel width: 48 inches
- 4-3/4” panel stiles and 1-7/16” rails for a slim sightline system
- Maximum interconnected panels: 9
- Thermally broken frame with 1-inch insulating glass
- CW Performance Class rating for high wind and structural demands
The Palisades S90 Bi-Folding Door (SKU: M9B33R0DUL) is a next-generation movable wall system engineered for exterior bi-fold openings in residential and commercial spaces. Slim 4-3/4” stiles and 1-7/16” rails with concealed hinges deliver expansive sightlines and a minimalist aesthetic that maximizes views.
Palisades S90 combines thermal efficiency and structural strength—featuring a thermally broken profile and 1" insulating glass—making it suitable for demanding environmental conditions where a CW Performance Class rating is required.
- Bottom-rolling system reduces load on the header and ensures smooth operation
- Fully concealed hinges for clean aesthetics and improved security
- Optional floating panels for even-set configurations
- Designed for both residential patio openings and commercial storefronts
- Standard finishes: black bronze anodized, satin anodized, black & white 90% gloss powder coat
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height for on-site alignment
Explore Palisades S90 for a slim, high-performance exterior bi-folding door solution—contact us for specifications, finish samples, or a quote.
Specifications
BIM Objects - rvt
