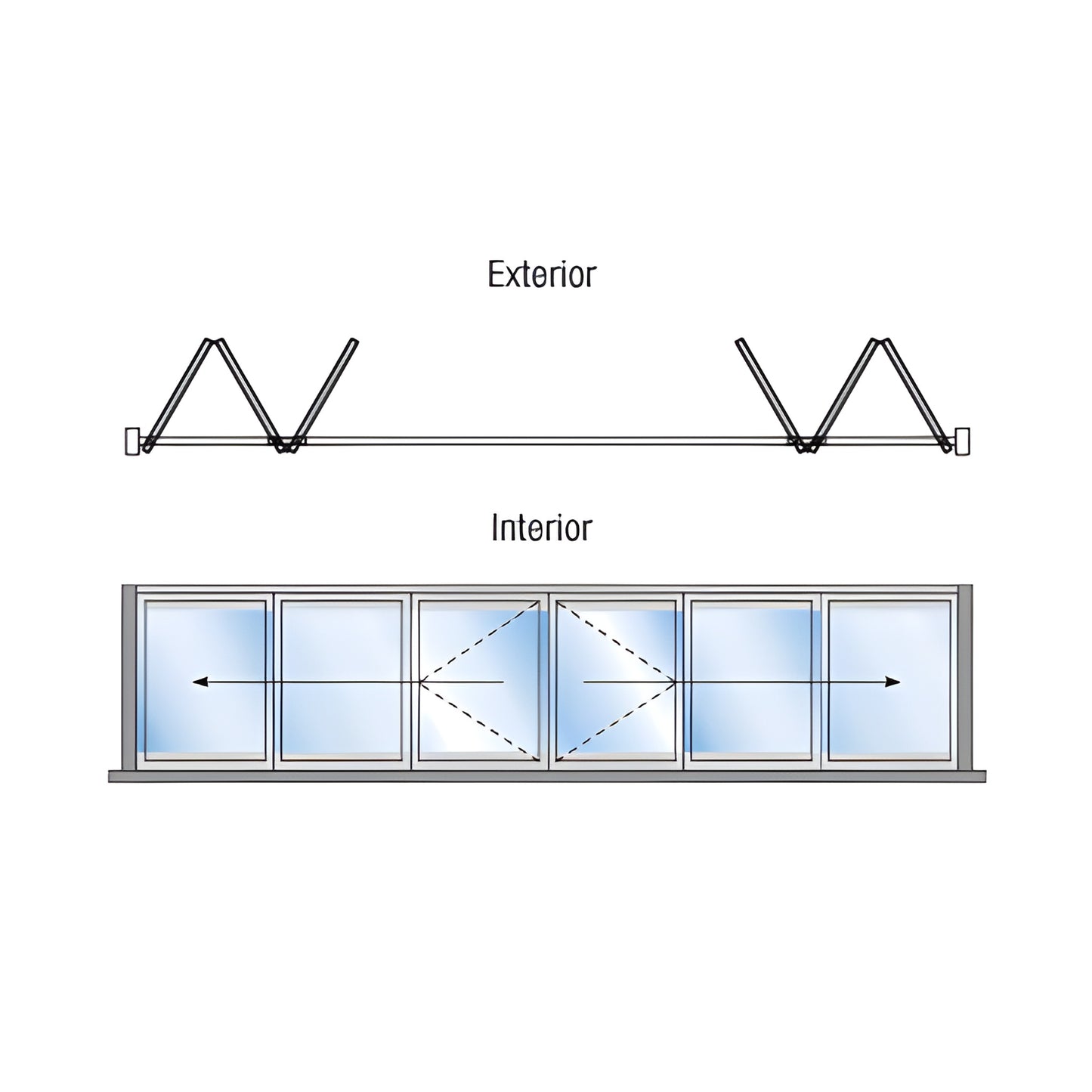

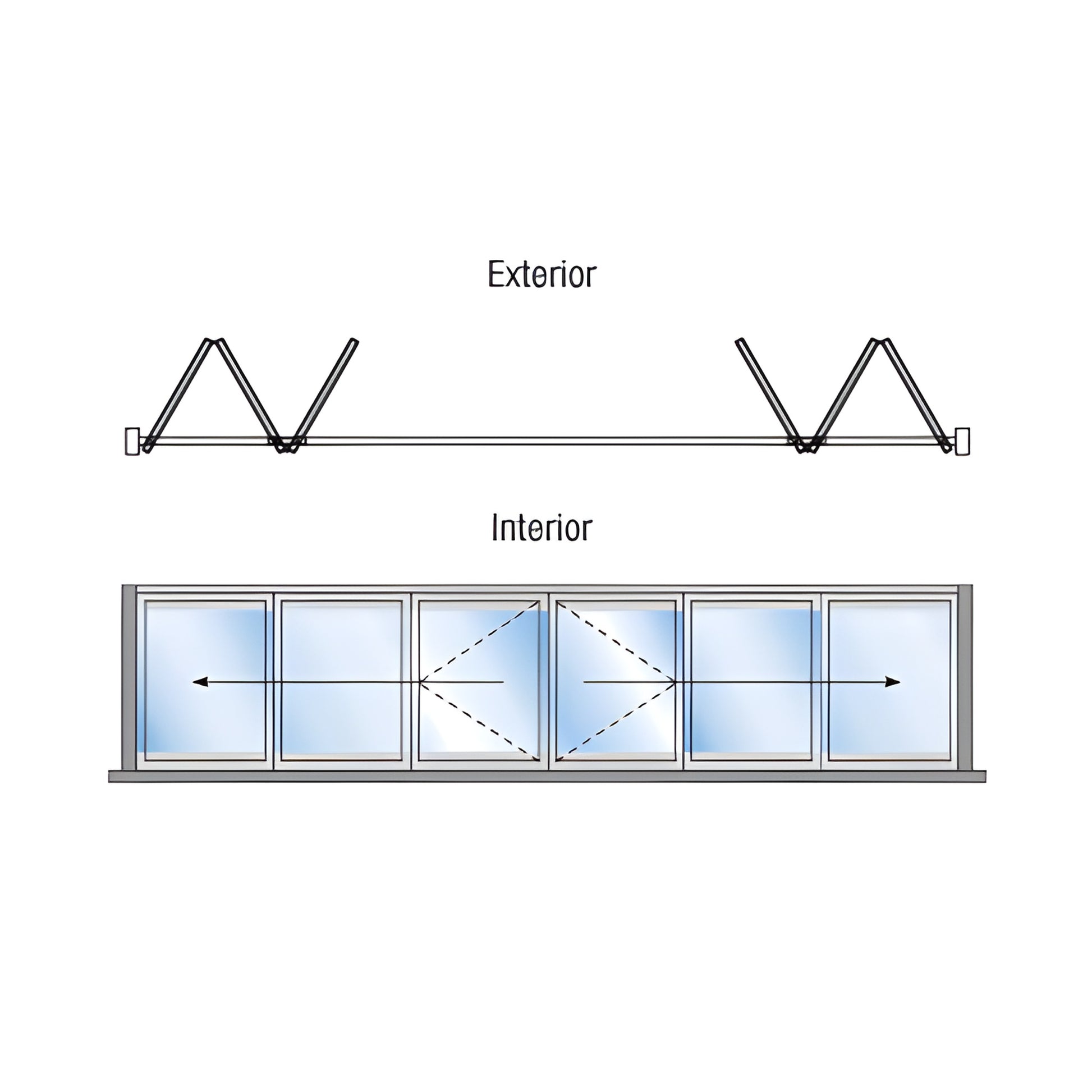

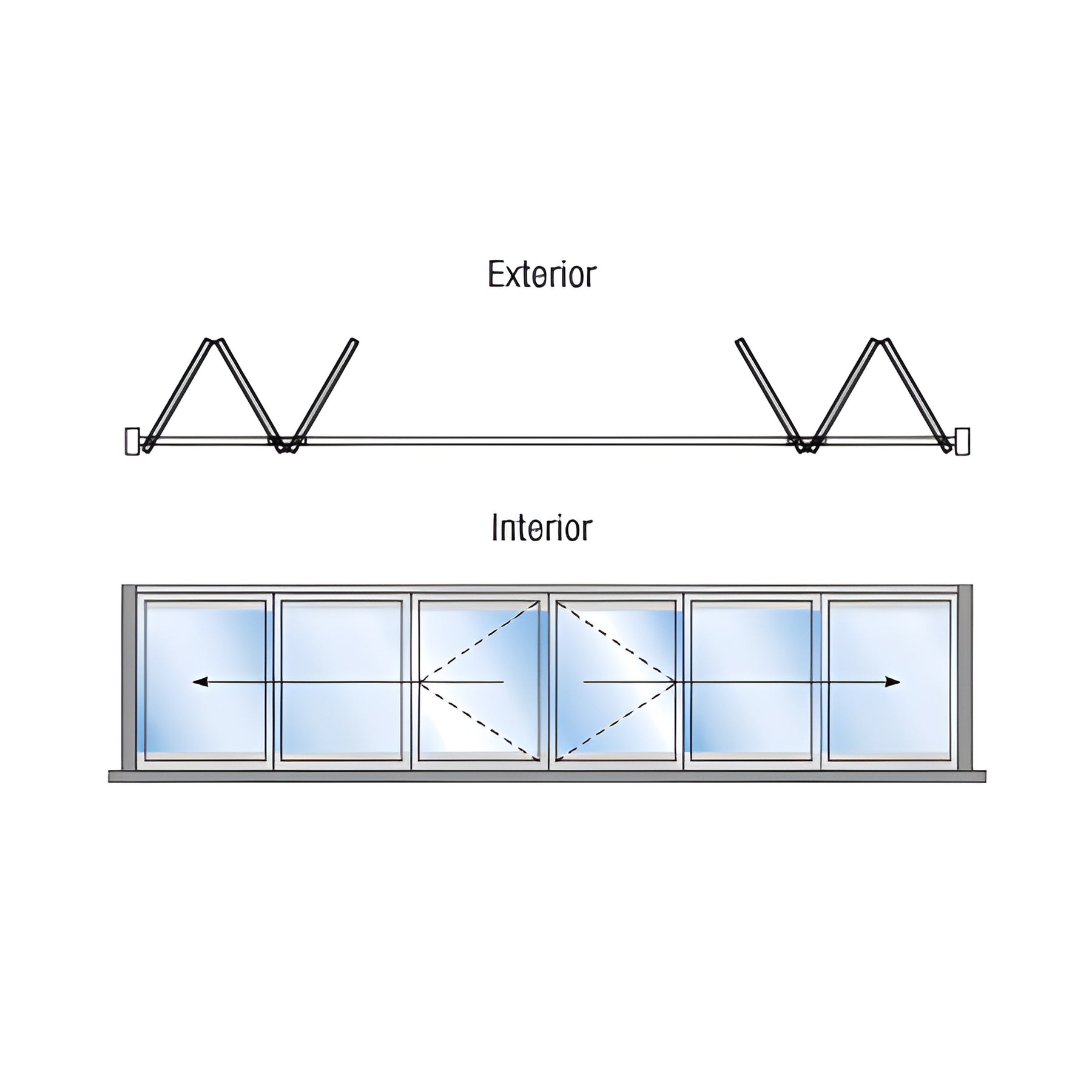

CRL Palisades S90 3+3 Satin Anodized Bi-Fold Door w/ Lever Lock
CRL Palisades S90 3+3 Satin Anodized Bi-Fold Door w/ Lever Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M9B33R0SAL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
3 Point Keyed Lock
Yes
Acoustic Rating
32
Door Configuration
4 Panel Right Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Satin Anodized
Frame Depth
3-1/2 in. (89 mm)
Glazing Thickness
1 in. (25 mm)
Height Adjustment
1/16 in. (2 mm)
Material
Aluminum
Maximum Door Height
144 in. (3658 mm)
Maximum Panel Width
48 in. (1219 mm)
Panel Count
4
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Swing
Exterior
Thermally Broken
Yes
Top Hung
No
Overview
- Maximum frame height: 12 feet; maximum panel width: 36 inches
- 4-3/4” panel stiles and 1-7/16” rails create a slim aluminum profile for enhanced sightlines
- Maximum interconnected panels: 9
- Thermally broken frame with 1-inch insulating glass for improved energy efficiency
- CW Performance Class rating for durable exterior bi-folding door performance
The Palisades S90 Bi-Folding Door is a next-generation movable wall system engineered for expansive views and high-performance exterior applications. Slim 4-3/4” panel stiles, 1-7/16” rails, and concealed hinges deliver clean sightlines and a minimalist aesthetic while maximizing glass area.
Palisades S90 provides superior thermal and structural performance, including a thermally broken frame and 1" insulating glass. Its CW Performance Class rating makes this exterior bi-fold door well suited for demanding residential and commercial environments.
- Bottom-rolling system reduces load on the overhead beam for reliable operation
- Completely concealed hinges for a seamless look
- Optional floating panels available in even sets
- Designed for both residential and commercial installations
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height for on-site alignment
SKU: M9B33R0SAL. Contact us to request specifications, pricing, or a quote for the Palisades S90 bi-folding door.
