Product Details
- Maximum frame height: 12 feet and panel width: 48 inches
- 4-3/4” panel stiles and 1-7/16” rails create a slimmer system
- Maximum interconnected panels: 9
- Thermally broken with 1-inch insulating glass
- CW Performance Class rating
- Bottom rolling system eliminates strain on overhead beam
- Hinges are completely concealed
- Option for floating panels in even sets
- For residential and commercial applications
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat with 90% gloss
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height

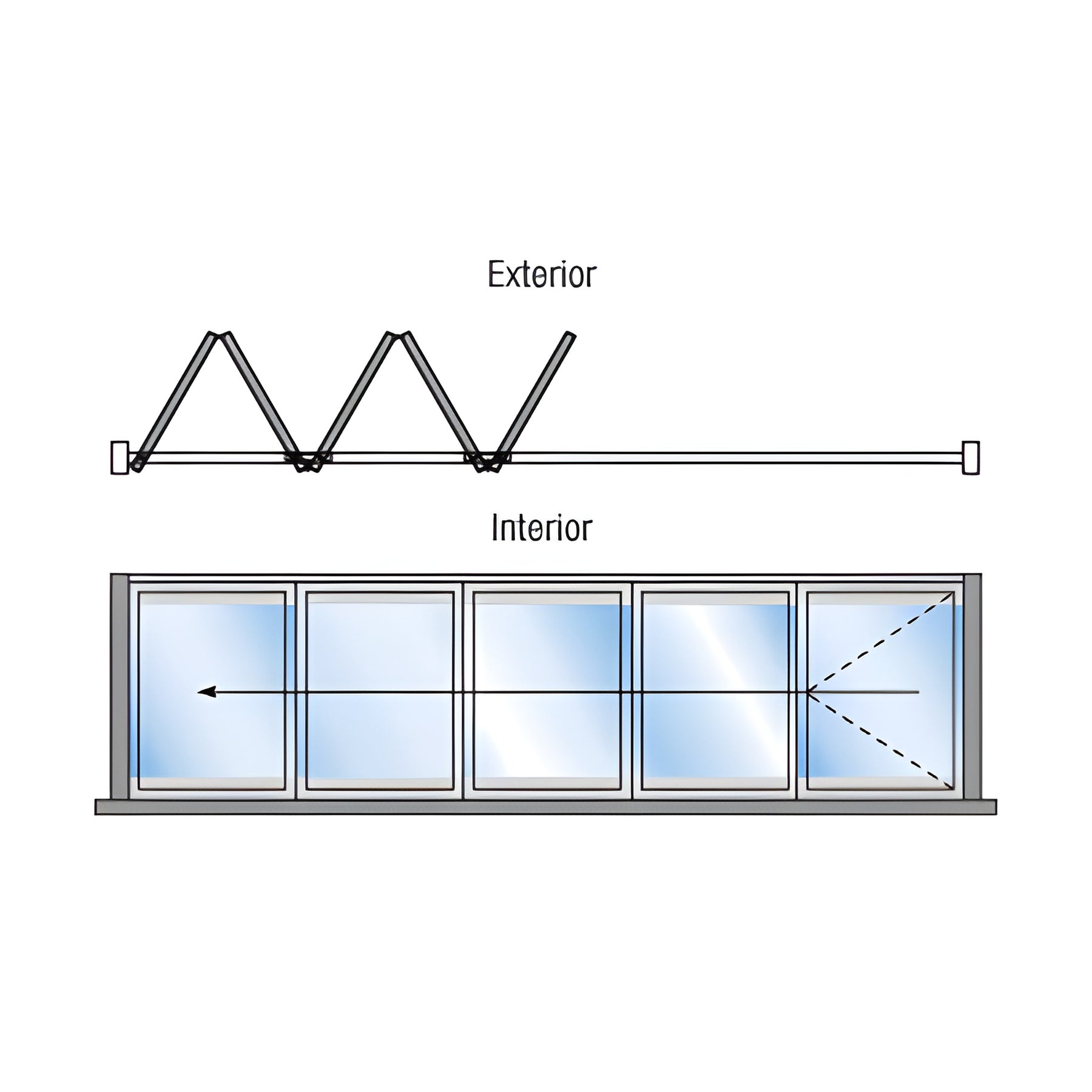

The Palisades S90 Bi-Folding Door represents the next generation of movable wall systems, offering the most desirable features in aesthetics and performance. Distinctly slim 4-3/4” panel stiles and 1-7/16” rails, along with concealed hinges, produce clean sightlines and an elegant look that maximizes views.
Palisades S90 delivers superior thermal and structural performance. Its distinguishing CW Performance Class rating makes the system ideal for exterior applications in demanding environments.
