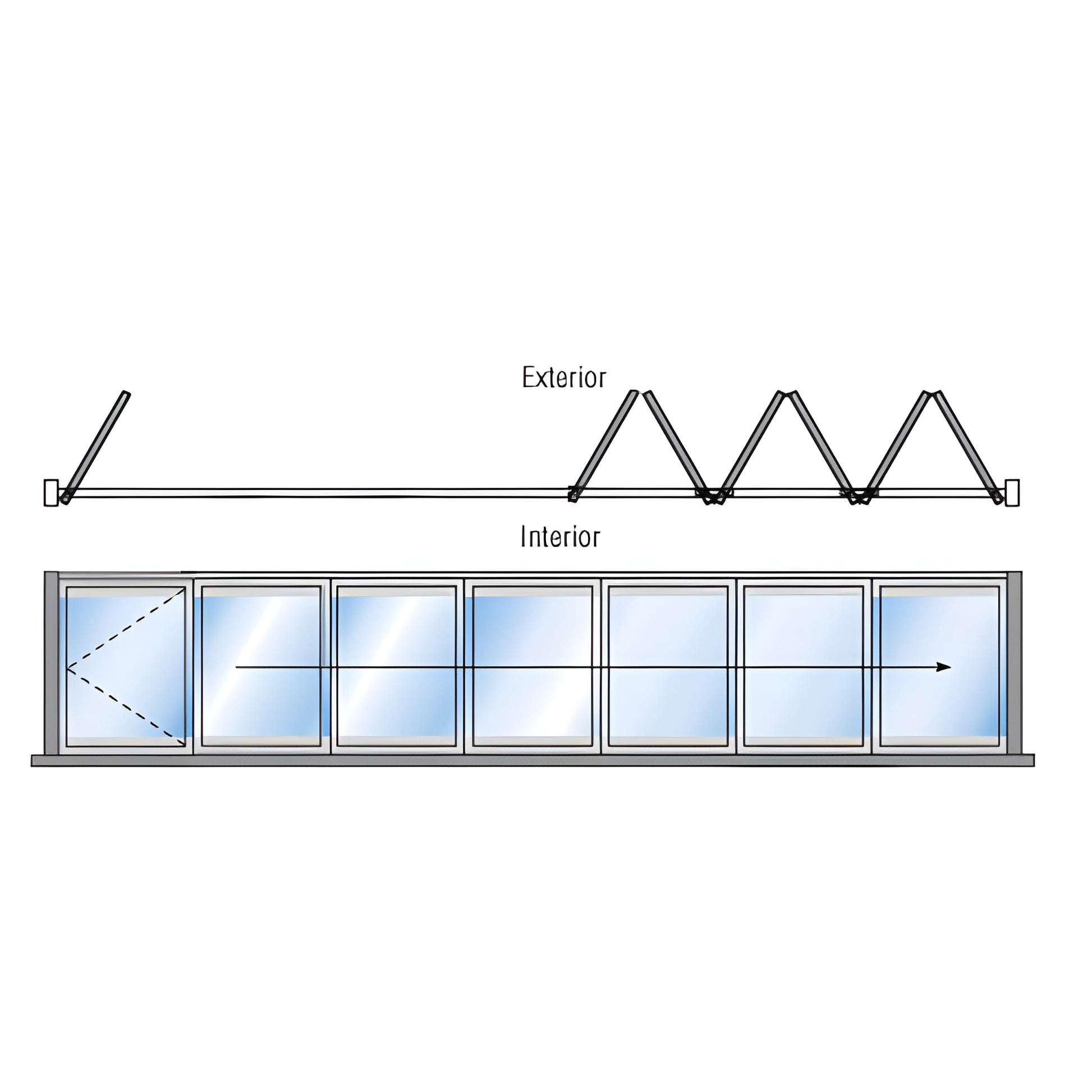

CRL Palisades S90 Bronze Bi-Fold/Pivot 1+6 LH Ext Raised Sill Lock
Item# M9C16R0DUL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
3 Point Keyed Lock
Yes
Acoustic Rating
32
Door Configuration
4 Panel Right Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Black Bronze Anodized
Frame Depth
3-1/2 in. (89 mm)
Glazing Thickness
1 in. (25 mm)
Height Adjustment
1/16 in. (2 mm)
Material
Aluminum
Maximum Door Height
144 in. (3658 mm)
Maximum Panel Width
48 in. (1219 mm)
Panel Count
4
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Swing
Exterior
Thermally Broken
Yes
Top Hung
No
- Maximum frame height: 12 feet; maximum panel width: 48 inches
- 4-3/4” panel stiles and 1-7/16” rails for a slimmer, contemporary frame
- Maximum interconnected panels: 9
- Thermally broken system with 1-inch insulating glass for improved energy efficiency
- CW Performance Class rating for demanding exterior applications
The Palisades S90 Bi-Folding Door is a next-generation movable wall system designed for residential and commercial exterior applications. Slim 4-3/4” stiles, 1-7/16” rails and concealed hinges create clean sightlines and maximize views, while the thermally broken frame and 1" insulating glass enhance thermal performance—ideal for energy-conscious projects and contemporary architecture.
- Bottom-rolling system removes strain from the overhead beam for smoother operation
- Fully concealed hinges for a minimalist, high-end aesthetic
- Optional floating panels in even sets for flexible opening configurations
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height for on-site leveling
Most shipping weights are approximate. If exact weight or verified shipping costs are required to complete your order, please contact CRL Customer Service before submitting your order. Product images are representative; colors may vary by monitor and settings.
Explore Palisades S90 configurations and request a quote today.
