CRL Palisades S90 Bronze LH Exterior Bi-Fold/Pivot Door Lock
CRL Palisades S90 Bronze LH Exterior Bi-Fold/Pivot Door Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M9C41R0DUL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
3 Point Keyed Lock
Yes
Acoustic Rating
32

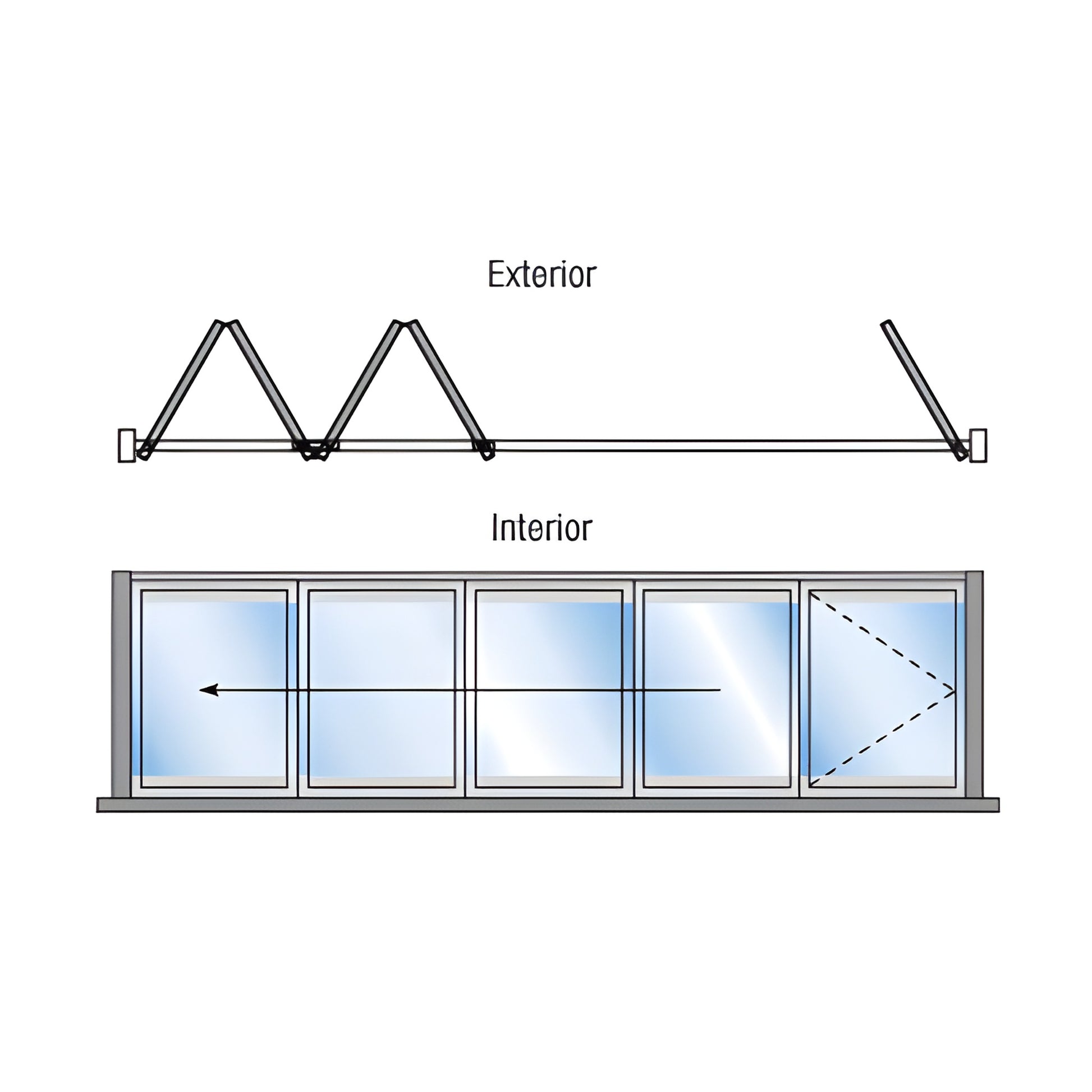

Door Configuration
4 Panel Right Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Black Bronze Anodized
Frame Depth
3-1/2 in. (89 mm)
Glazing Thickness
1 in. (25 mm)
Height Adjustment
1/16 in. (2 mm)
Material
Aluminum
Maximum Door Height
144 in. (3658 mm)
Maximum Panel Width
48 in. (1219 mm)
Panel Count
4
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Swing
Exterior
Thermally Broken
Yes
Top Hung
No
Overview
- Maximum frame height: 12 feet; maximum panel width: 48 inches
- 4-3/4” panel stiles and 1-7/16” rails for a slimmer aluminum bi-fold door profile
- Maximum interconnected panels: 9
- Thermally broken with 1-inch insulating glass for improved energy efficiency
- CW Performance Class rating for high structural performance in exterior applications
The Palisades S90 Bi-Folding Door (SKU: M9C41R0DUL) is a next-generation movable wall system engineered for expansive views and refined aesthetics. Slim 4-3/4” stiles, 1-7/16” rails and concealed hinges create clean sightlines, while the thermally broken frame and 1" insulating glass boost thermal performance for residential and commercial exterior installations.
Palisades S90 pairs elegant design with robust functionality: its CW Performance Class rating and structural features make it suitable for demanding climates and frequent use.
- Bottom rolling system reduces strain on the overhead beam — ideal for smooth operation of bi-folding door panels
- Completely concealed hinges for uninterrupted sightlines
- Option for floating panels in even sets
- For residential and commercial applications
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height for on-site leveling
Learn how the Palisades S90 thermally broken aluminum bi-fold door can open up your space — contact CRL for specifications, pricing, and lead times.
Specifications
BIM Objects - rvt
