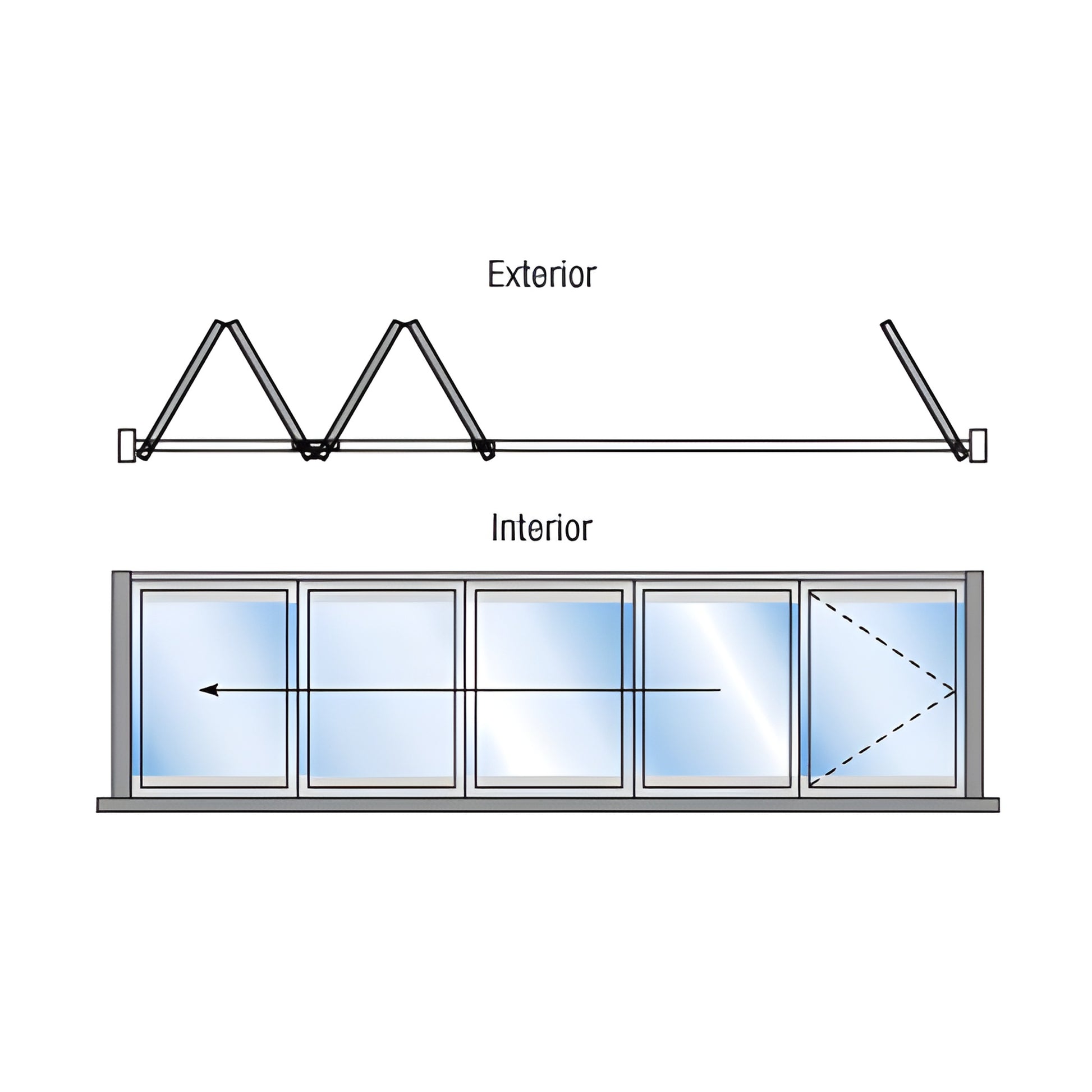

CRL Palisades S90 Satin Anodized 4+1 LH Bi-Fold/Pivot w/ Lever Lock
CRL Palisades S90 Satin Anodized 4+1 LH Bi-Fold/Pivot w/ Lever Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M9C41R0SAL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
3 Point Keyed Lock
Yes
Acoustic Rating
32
Door Configuration
4 Panel Right Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Satin Anodized
Frame Depth
3-1/2 in. (89 mm)
Glazing Thickness
1 in. (25 mm)
Height Adjustment
1/16 in. (2 mm)
Material
Aluminum
Maximum Door Height
144 in. (3658 mm)
Maximum Panel Width
48 in. (1219 mm)
Panel Count
4
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Swing
Exterior
Thermally Broken
Yes
Top Hung
No
Overview
- Maximum frame height: 12 feet; panel width: 48 inches
- 4-3/4” panel stiles and 1-7/16” rails create a slimmer system
- Maximum interconnected panels: 9
- Thermally broken with 1-inch insulating glass
- CW Performance Class rating for demanding exterior use
The Palisades S90 Bi-Folding Door (SKU: M9C41R0SAL) is a next-generation movable wall system designed for both residential and commercial exterior applications. Slim 4-3/4” stiles and 1-7/16” rails, concealed hinges, and clean sightlines maximize views while maintaining a refined aluminum bi-folding door profile.
Palisades S90 combines thermal efficiency and structural strength with a thermally broken frame and 1" insulating glass. Its CW Performance Class rating and bottom-rolling design make it suitable for high-performance exterior installations and demanding environments.
- Bottom-rolling system reduces strain on the overhead beam
- Fully concealed hinges for seamless aesthetics
- Optional floating panels available in even sets
- Suitable for residential and commercial projects
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- 3-1/2” system depth
- (+/-) 1/16” adjustable roller height
Order the Palisades S90 thermally broken aluminum bi-folding door (SKU: M9C41R0SAL) for slim sightlines, high thermal performance, and durable exterior use. Contact CRL to get a quote or specification sheet.
Specifications
BIM Objects - rvt
