Product Details
- Bottom Track including Built-In Smooth Operating Nylon Rollers
- Perfect for Showcases and Display
- Designed for 1/4" (6 mm) Tempered Glass
- Simple 'Lift and Drop' Glass Installation
- Polished Aluminum Finish
- Top Channel Can Be Used as Side Jambs or for a Surround Frame
- Top Channels that can be used as Side Jambs or Surround Frame can be purchased separately, SKU: 16790
Our CRL Double Roller Track System is beautifully designed to be both attractive and functional. Everything you need to install sliding glass doors into a showcase or cabinet is included. Just cut the Upper Channel and Lower Track to size and it's ready-to-install.

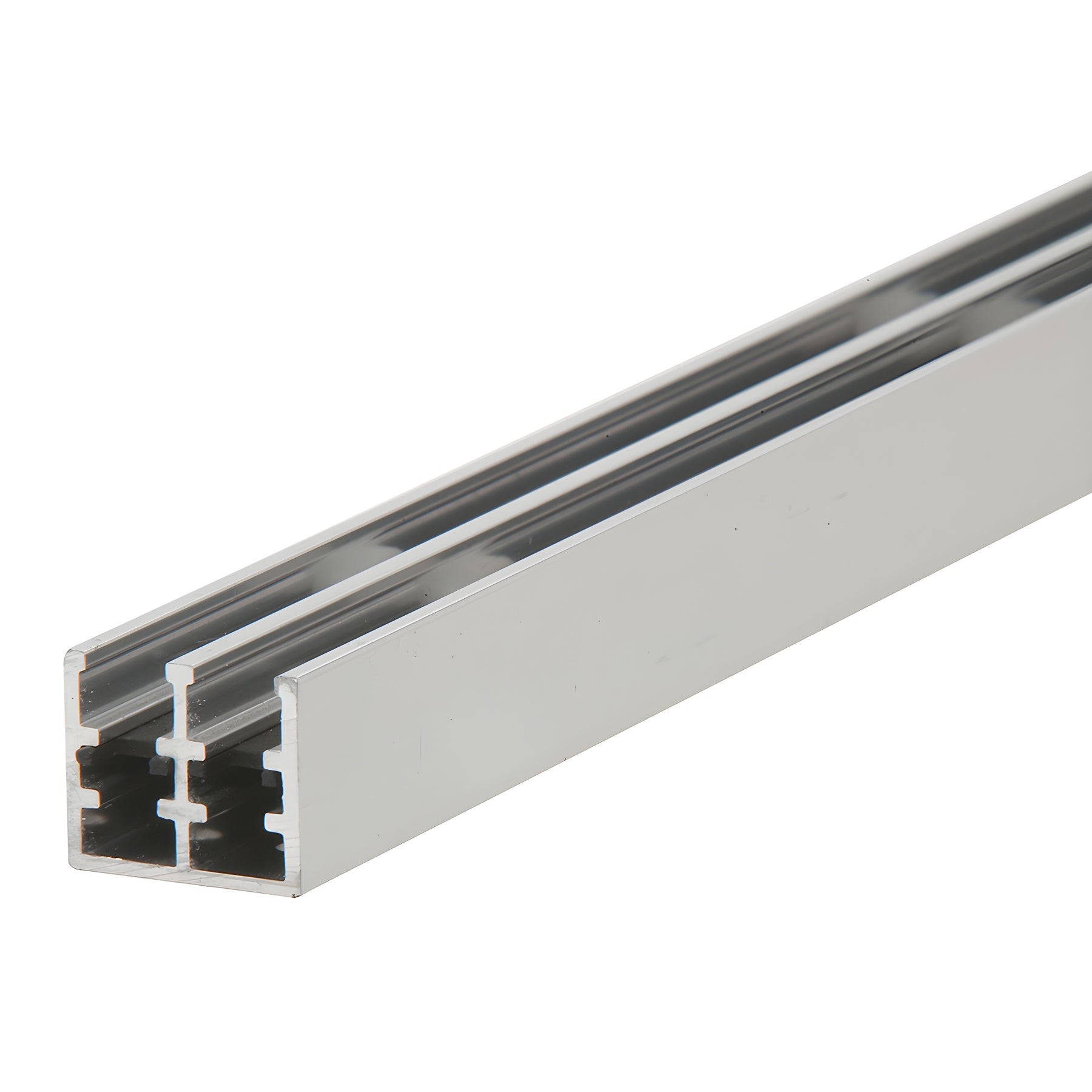

The Bottom Track (SKU:16780) is built-in with smooth operating rollers nylon rollers spaced every 4” (102mm) and provided pre-drilled with holes for securing it to the base.
NOTE: Designed for use with 1/4" (6 mm) tempered glass, the maximum recommended panel size is 60" (1.52 m) tall by 30" (792 mm) wide, or a ratio of 1.5:1. Recommended minimum overlap of glass panels is 1-1/2" (38 mm).
General Glass Cutting Guidelines: Glass Height = Opening Height minus 7/8" (22 mm).
