Product Details
- Top Channel Can Be Used as Side Jambs or for a Surround Frame
- Perfect for Showcases and Display Cabinets
- Designed for 1/4" (6 mm) Tempered Glass
- Simple 'Lift and Drop' Glass Installation
- Polished Aluminum Finish
- Bottom Track including Built-In Smooth Operating Nylon Rollers can be purchased separately, SKU: 16780
Our CRL Double Roller Track System is beautifully designed to be both attractive and functional. Everything you need to install sliding glass doors into a showcase or cabinet is included. Just cut the Upper Channel and Lower Track to size and it's ready-to-install.

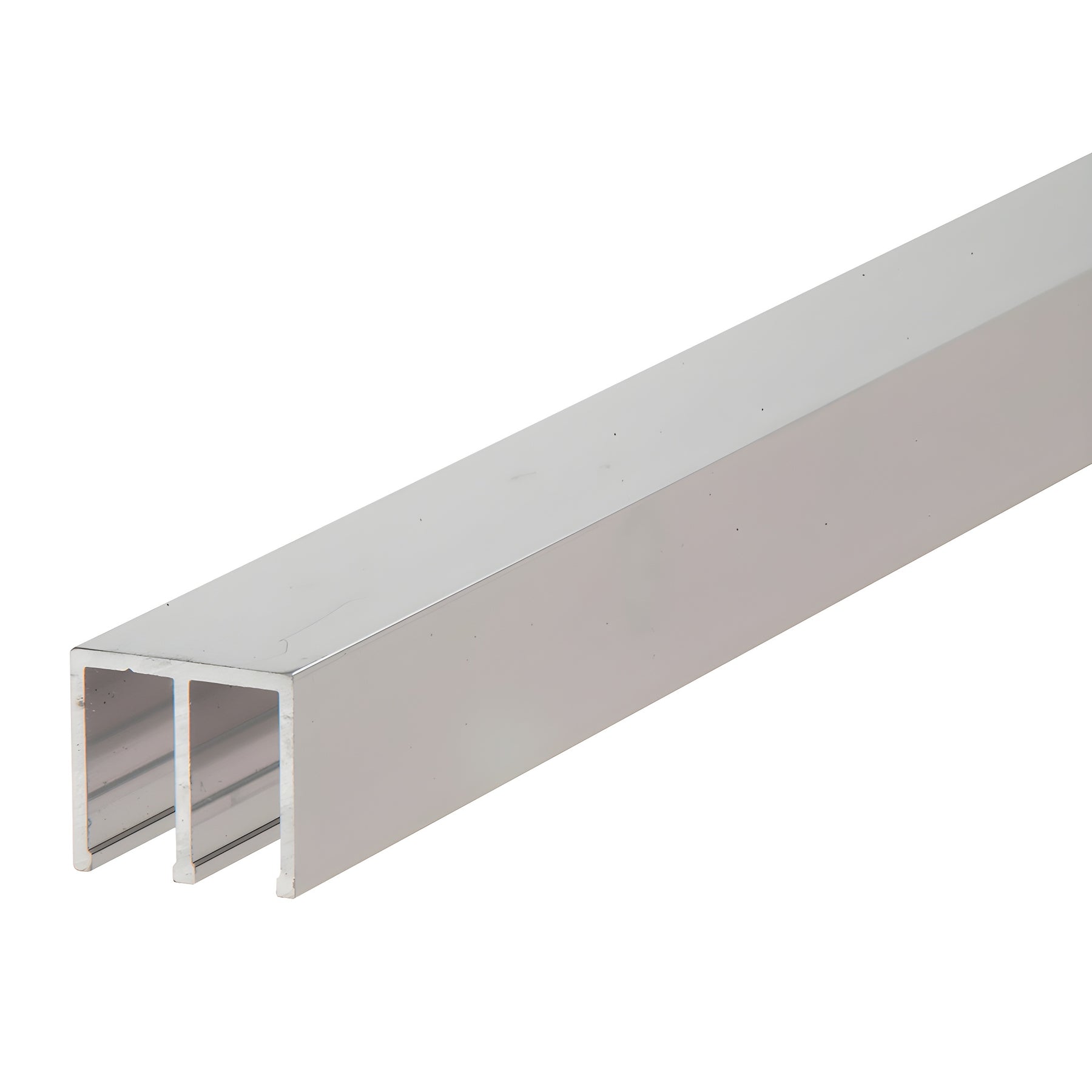

The Top Track (SKU:16790) is easily set into place above the Bottom Track (SKU: 16780), and can be used as a side jamb to provide a full surround frame for the glass doors.
NOTE: Designed for use with 1/4" (6 mm) tempered glass, the maximum recommended panel size is 60" (1.52 m) tall by 30" (792 mm) wide, or a ratio of 1.5:1. Recommended minimum overlap of glass panels is 1-1/2" (38 mm).
General Glass Cutting Guidelines: Glass Height = Opening Height minus 7/8" (22 mm).
