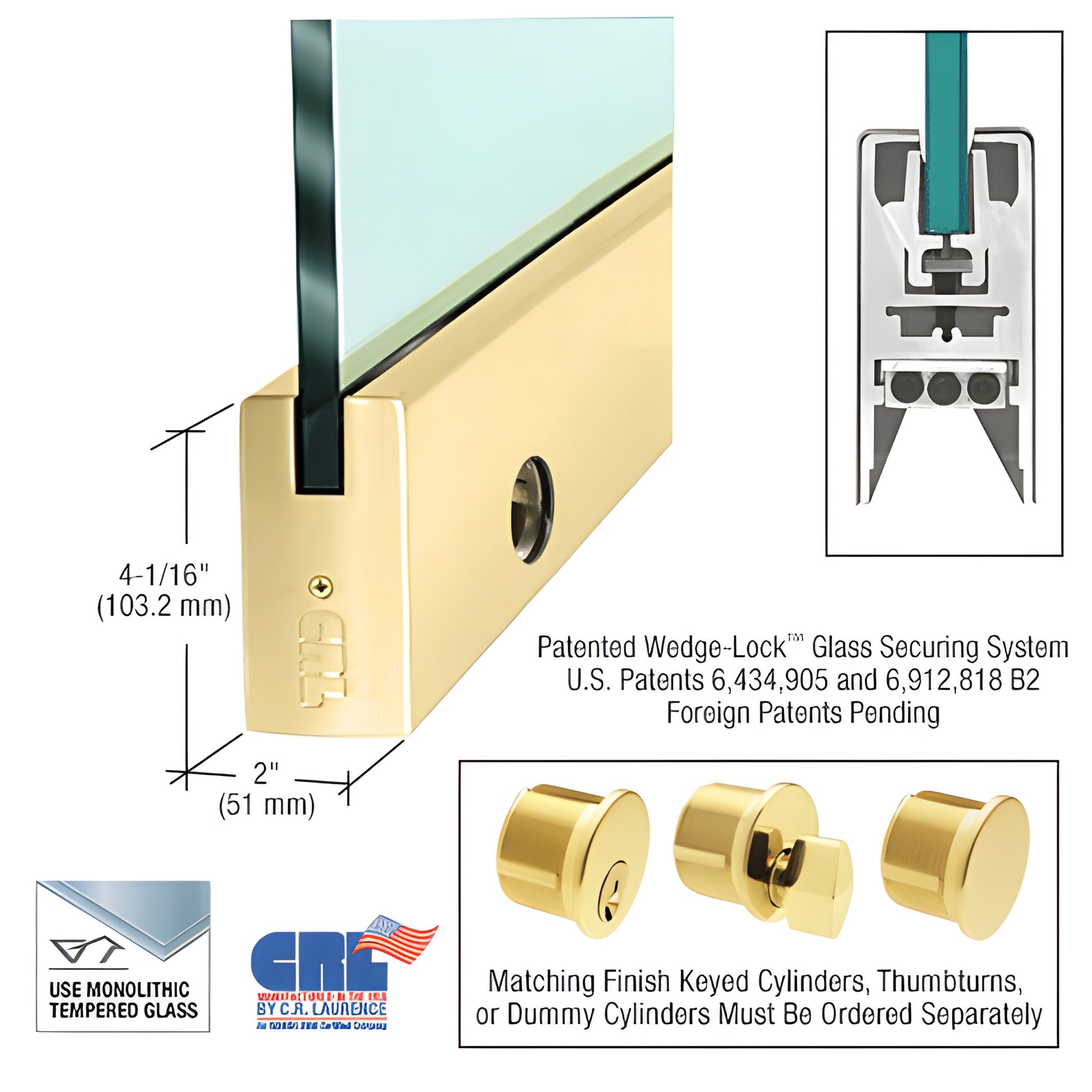

CRL Polished Brass 4" Square Glass Door Rail w/ Lock 35-3/4"

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SPB12SL) features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The system secures glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar, creating exceptional retention force in the rail. This design delivers fast installation, durable glass retention pads for extreme environments, and a rigid single-component housing that resists shifting.

NOTE: Actual product height: 4-1/16" (103 mm)

Key features and installer benefits:

• Fast installation — experienced installers can prepare a door in under ten minutes
• Comes fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System (standard top and bottom) allows ±1/8" (3.2 mm) adjustment without removing the door
• Adjustment accessible by removing end cap to reveal three socket head cap bolts (center secures; outer bolts adjust)
• Low-profile adjustable slide accommodates pivots with slotted grooves and non-standard setback or out-of-square openings
• Models accept 3/8"–3/4" (10–19 mm) glass
• Internal components do not require removal before installation

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms, pivots, closer arms and floor or overhead pivots are sold separately to meet job requirements. Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately. End caps are included in stock door rail lengths; specify total door rail length (including end caps) for custom lengths.

Finishes: Several standard architectural finishes available; custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• Supplied with standard Kwik-Adjust™
