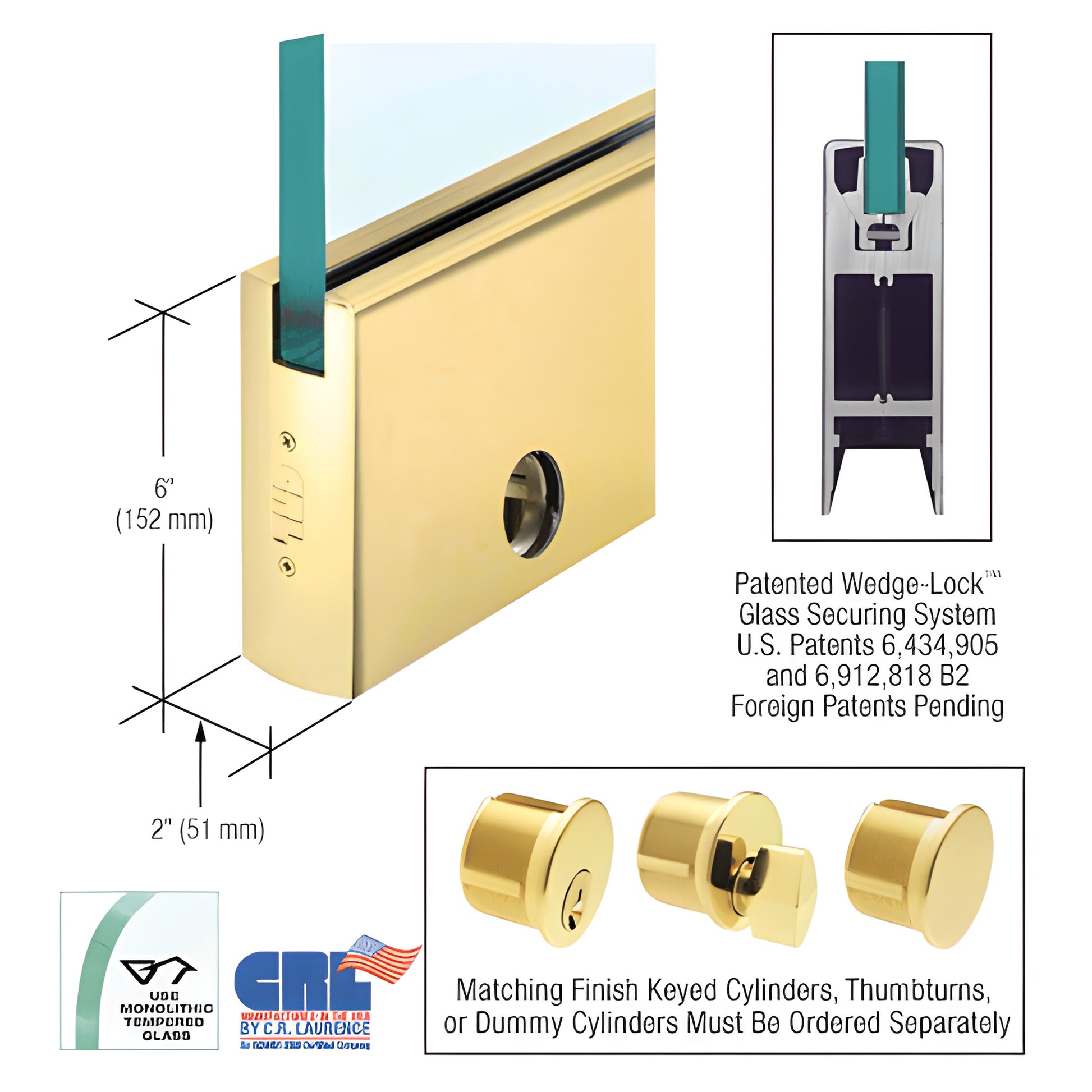

CRL Polished Brass 6" Square Door Rail with Lock, 1/2" Glass, Custom

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPB12CL) uses the exclusive Wedge-Lock® Securing System (U.S. and international patents) to clamp glass securely from the bottom of the rail. Two glass-retaining aluminum extrusions and a flat stainless steel bar apply compressive force through an angled wedge design, producing exceptional holding strength (over 900 lbs. in the 9" Corner Rail). This wedge action plus the specially designed door retaining gasket creates a secure, long-lasting glass mounting for commercial glass doors and storefronts.

Key installation advantages for contractors and storefront installers:

• Fast installation — experienced installers can prepare a door in under 10 minutes.
• Comes fully fabricated with End Caps installed for immediate on-site installation.
• Adjustable Door Alignment System (standard top & bottom) allows 1/8" (3.2 mm) in/out adjustment without removing the door.
• Low-profile adjustable slide accommodates pivots set off American Standard setback and vertical out-of-square openings.

Durability and product features:

• Models available for 3/8" or 1/2" (10 or 12 mm) glass.
• Rigid single-component housing resists shifting or loss of adjustment over time.
• Internal components remain assembled during installation — no pre-removal required.
• Glass securing pads engineered for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms, pivots, closer arms, and key cylinders/thumbturns are ordered separately to match job requirements.

Ordering & product details

• All Door Rails include the standard Kwik-Adjust™ Pivot Alignment System; floor or overhead pivots and closer arms sold separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately.
• End Caps are included. Specify door rail length (including End Caps) when ordering custom length rails.
• Replacement End Caps: search DREC6S.

Shipping, finishes & advisory

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from Technical Sales. Most shipping weights are approximate; request verified weights from CRL Customer Service if
