CRL Polished Brass 1/2" Low-Profile Tapered Glass Door Rail w/ Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

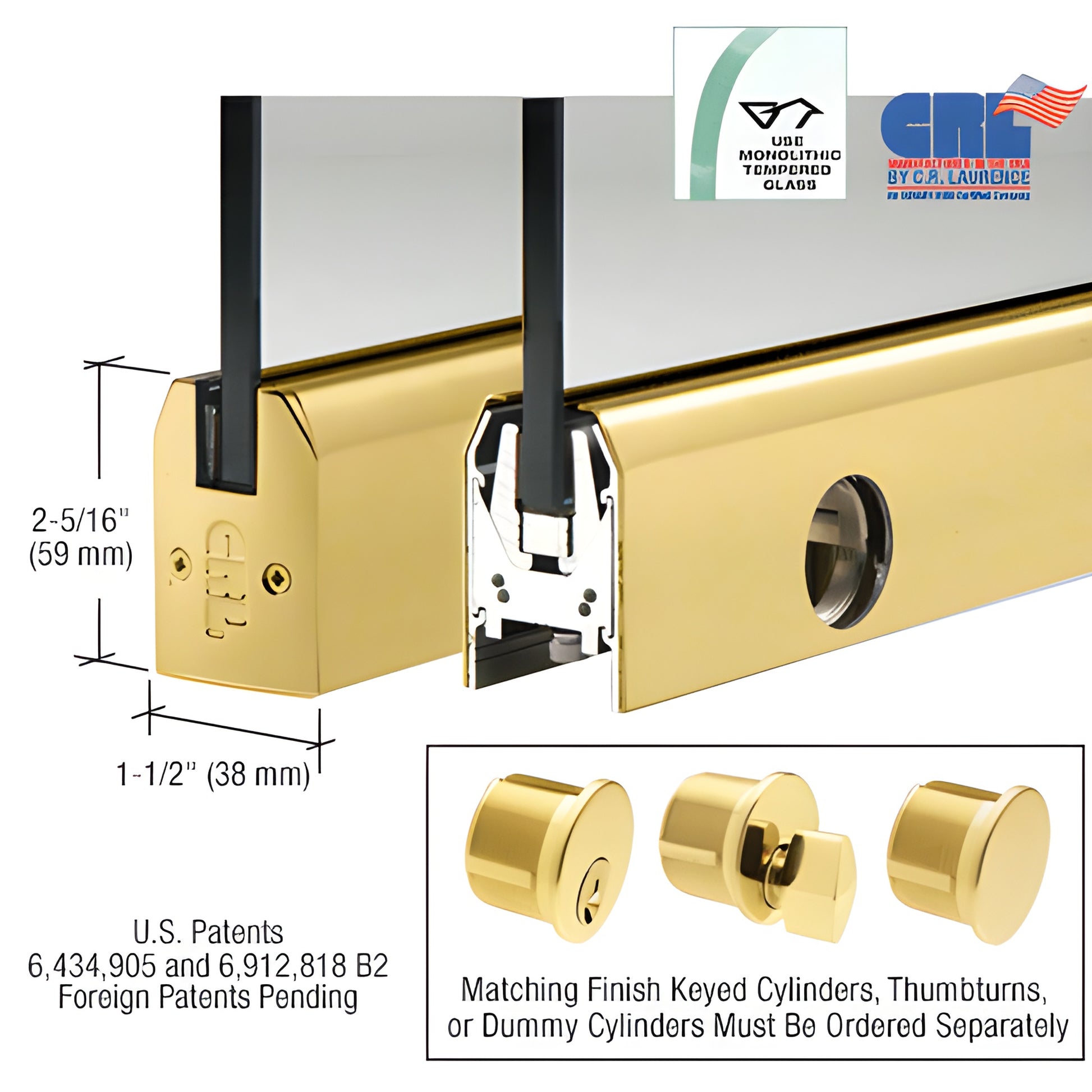

Our CRL Low Profile Door Rail (SKU: DR2TPB12CL) is a compact 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide rail engineered for 1/2" (12 mm) monolithic tempered glass applications. It features CRL’s patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) and ships ready-to-install with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual Product Height: 2-5/16” (59 mm)

The Wedge-Lock® system provides a secure glass attachment plus industry-leading installation speed—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with the adjustable door alignment slide installed; only the door arm or pivot (not included) must be attached prior to hanging. The built-in Adjustable Door Alignment System lets you fine-tune door position 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails.

To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, and the two outer bolts move the slide 1/8" (3 mm) in or out. The low-profile slide also allows pivots with slotted grooves to be positioned off the American Standard Setback (2-3/4" / 69.8 mm) to accommodate vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails: models available to accept 3/8" to 3/4" (10 to 19 mm) glass; a single-piece rigid housing that resists shifting; no need to remove internal components before installation; and durable glass securing pads designed for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
