CRL Polished Brass 1/2" Glass Low-Profile Tapered Door Rail, No Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (fastest installation)
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

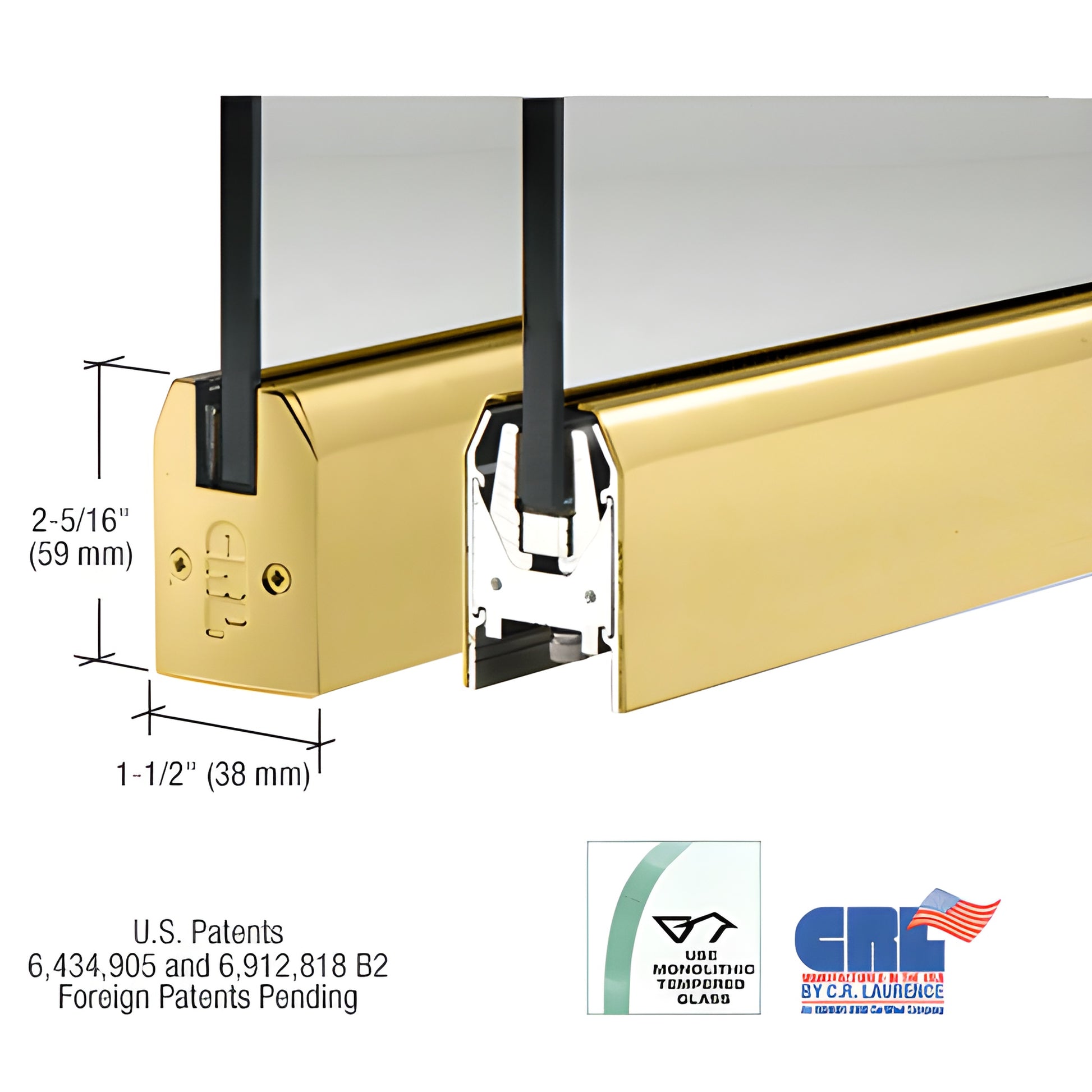

CRL Low Profile Door Rail (SKU: DR2TPB12C) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features CRL's patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). These low profile door rails are ready-to-install, come complete with End Caps, installation instructions, and adjustment wrenches—ideal for glass door applications requiring a slim, architectural look.

Key differentiators:

• Wedge-Lock® system — fastest installation time among door rail systems; experienced installers can prepare a door in under ten minutes.
• Adjustable Door Alignment System — ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.
• Rigid single-component housing — resists shifting and long-term misalignment compared with two-piece rails.
• Durable glass securing pads — designed for longevity in extreme environments.
• Accepts multiple glass thicknesses — models available for 3/8" to 3/4" (10 to 19 mm) glass.

After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide also allows pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

NOTE: Actual product height: 2-5/16" (59 mm). All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately to meet job requirements.

Ordering & compatibility:

• All Door Rails include the standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately.
• Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns sold separately.
• End Caps and installation hardware are included in stock lengths; specify door rail length (including End Caps) when ordering custom lengths.
• Prepped to receive Low Profile Door Rail Pivot Inserts (pivot inserts 1NT701, 1NT
