CRL Polished Brass 2-5/16" x 120" Length Low Profile Sidelite Rail With Saddle
CRL Polished Brass 2-5/16" x 120" Length Low Profile Sidelite Rail With Saddle
Regular price
$1,198.62 CAD
Regular price
Sale price
$1,198.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR2SPB12SL
Shipping Weight: 21.6 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 21.6 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Finish/Color | Polished Brass |
Floor Mount Saddle Included FMS | 2SA |
Glazing Thickness | 3/8 in. or 1/2 in. (10 mm or 12 mm) |
Length 120 in. | (3048 mm) |
Material | Aluminum Clad with Brass |
Nominal Height 2-5/16 in. | (59 mm) |
Width 2-1/4 in. | (57 mm) |
Overview

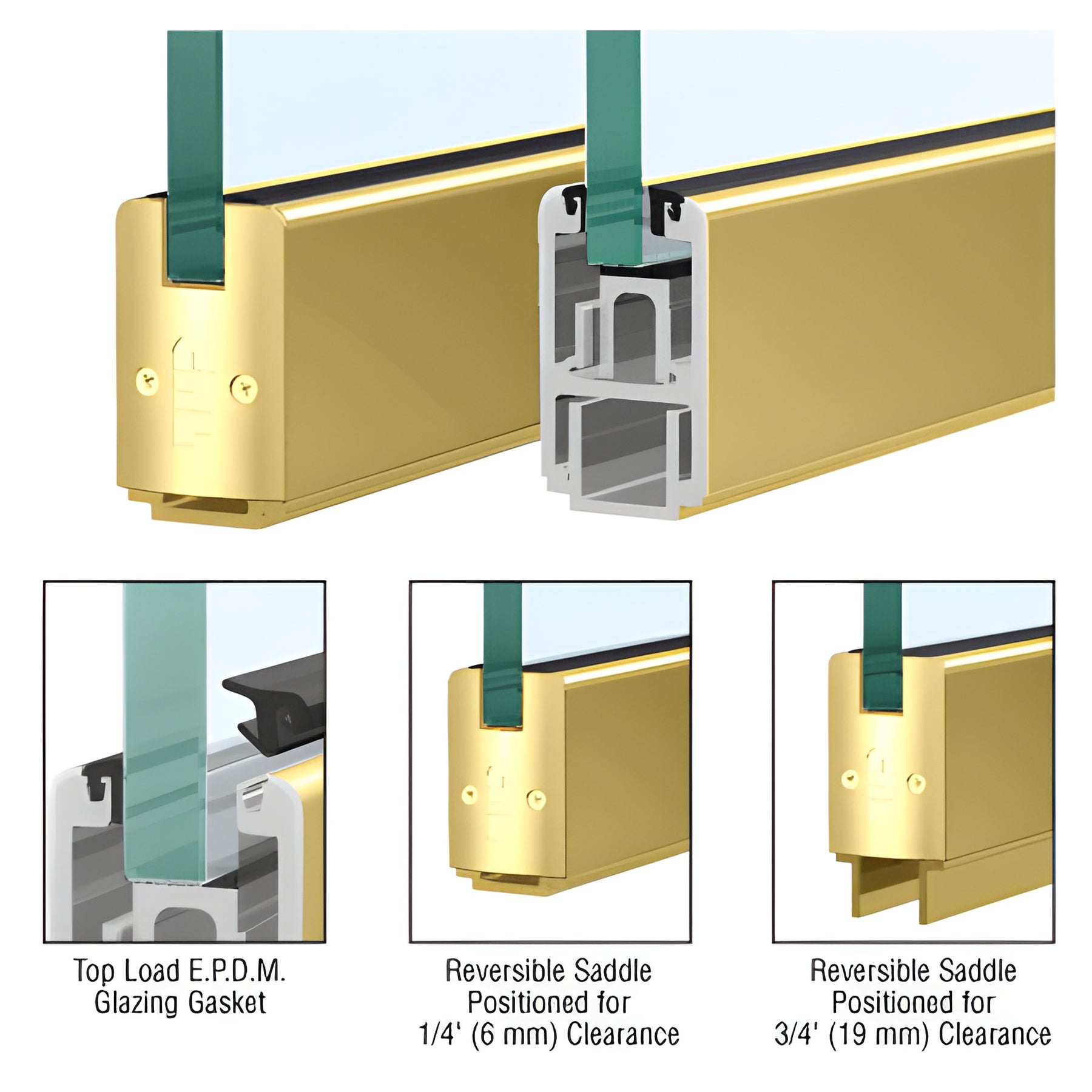

CRL Low Profile Sidelite Rails are designed with a sleek height of 2-5/16" (59 mm) and a width of 1-1/2" (38 mm), making them an ideal match for our DR2S Series Low Profile Door Rails.
Featuring a reversible extruded saddle, these rails accommodate 1/4" (6 mm) or 3/4" (19 mm) door clearances, and come with vinyl for 1/2" (12 mm) tempered glass.
Choose from eight architectural finishes, including custom options, and take advantage of our ready-to-ship models from CRL Inventory.
For assistance, contact Commercial Hardware Technical Sales.
Note: Actual product height is 2-5/16” (59 mm), and additional components such as SREC2S Series End Caps and UCSB4 Setting Blocks must be ordered separately.
Featuring a reversible extruded saddle, these rails accommodate 1/4" (6 mm) or 3/4" (19 mm) door clearances, and come with vinyl for 1/2" (12 mm) tempered glass.
Choose from eight architectural finishes, including custom options, and take advantage of our ready-to-ship models from CRL Inventory.
For assistance, contact Commercial Hardware Technical Sales.
Note: Actual product height is 2-5/16” (59 mm), and additional components such as SREC2S Series End Caps and UCSB4 Setting Blocks must be ordered separately.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
