- Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
- Four Architectural Finishes
- Connects to a Variety of Fabricated Corners and End Caps
- Cut to Size or Custom Fabricated Lengths Also Available
- For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
- For Brass, Alloy 260 is Standard
- Use Sleeve No. GR25CSB

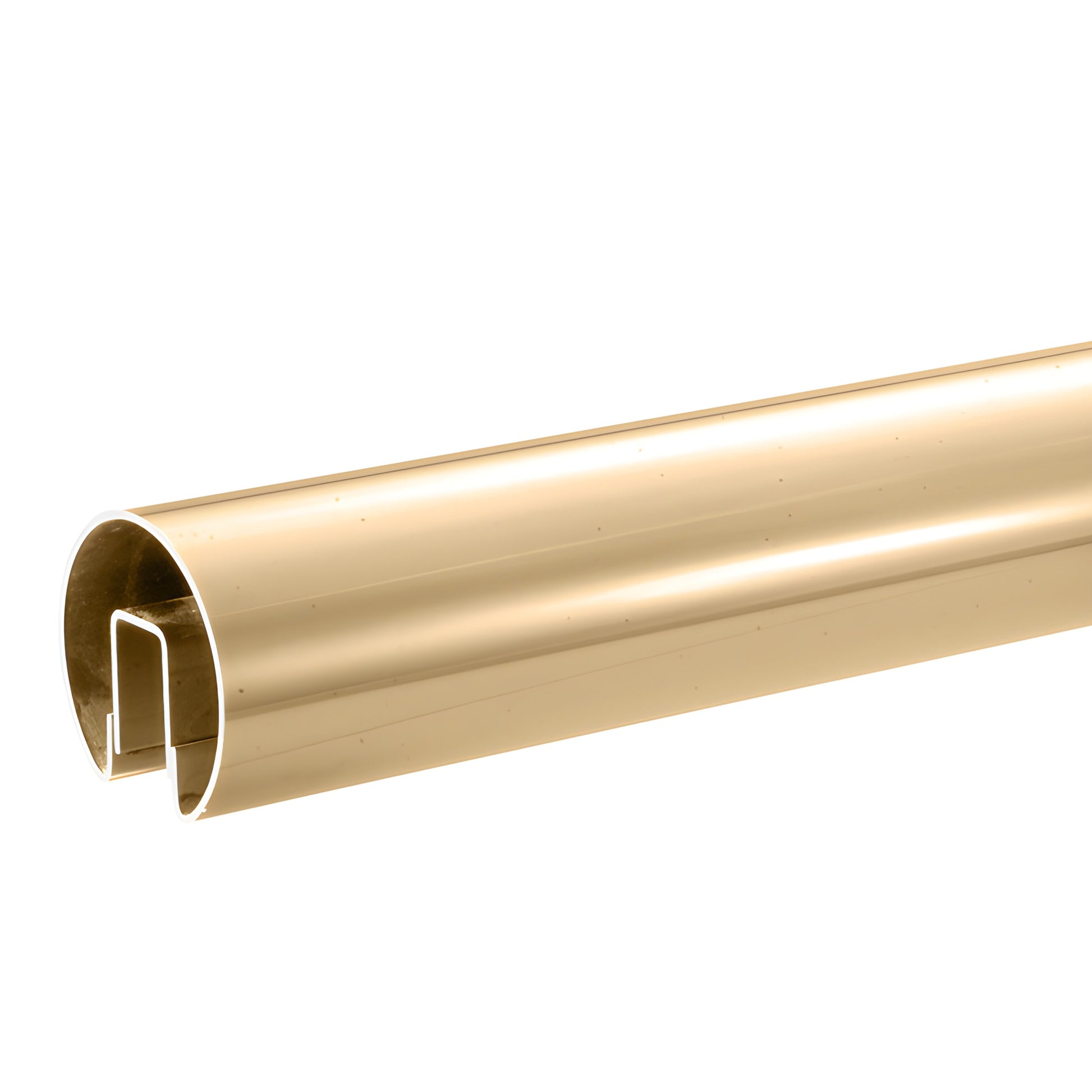

CRL's Premium Cap Rails
are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.

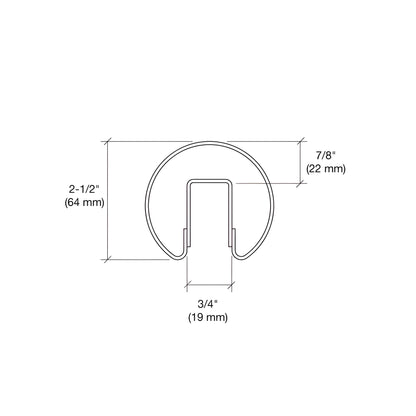

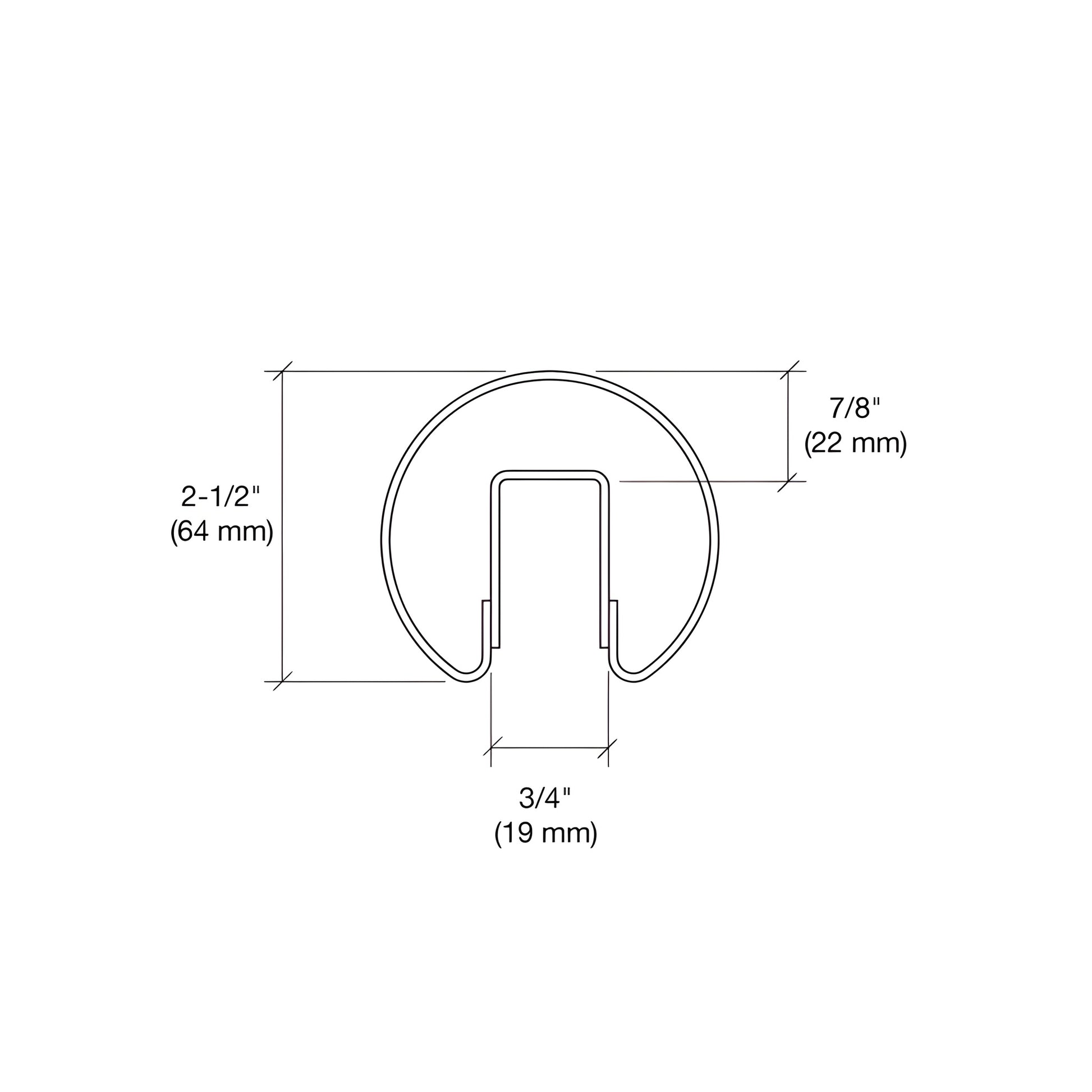

All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.
NOTE
When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.
Use of our
32629 Metal Contact Cement
is required to achieve a secure and permanent bond at all connections.
Use the
Connector Sleeves
to connect Cap Rails.
When used with 3/4" (19 mm) glass,
95CBL Silicone
and
shims
should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact
CRL Technical Sales
for more information or for a quote.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
