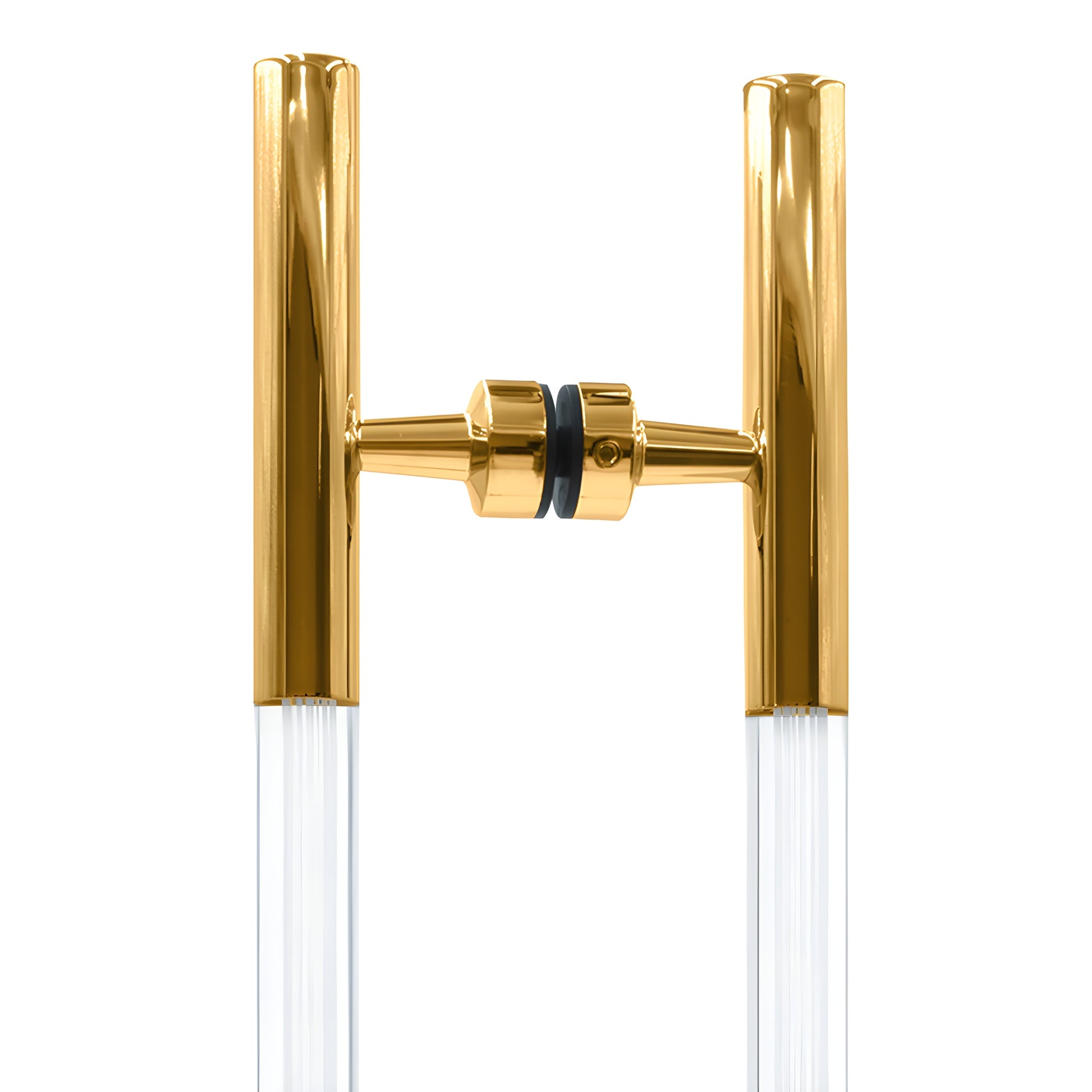

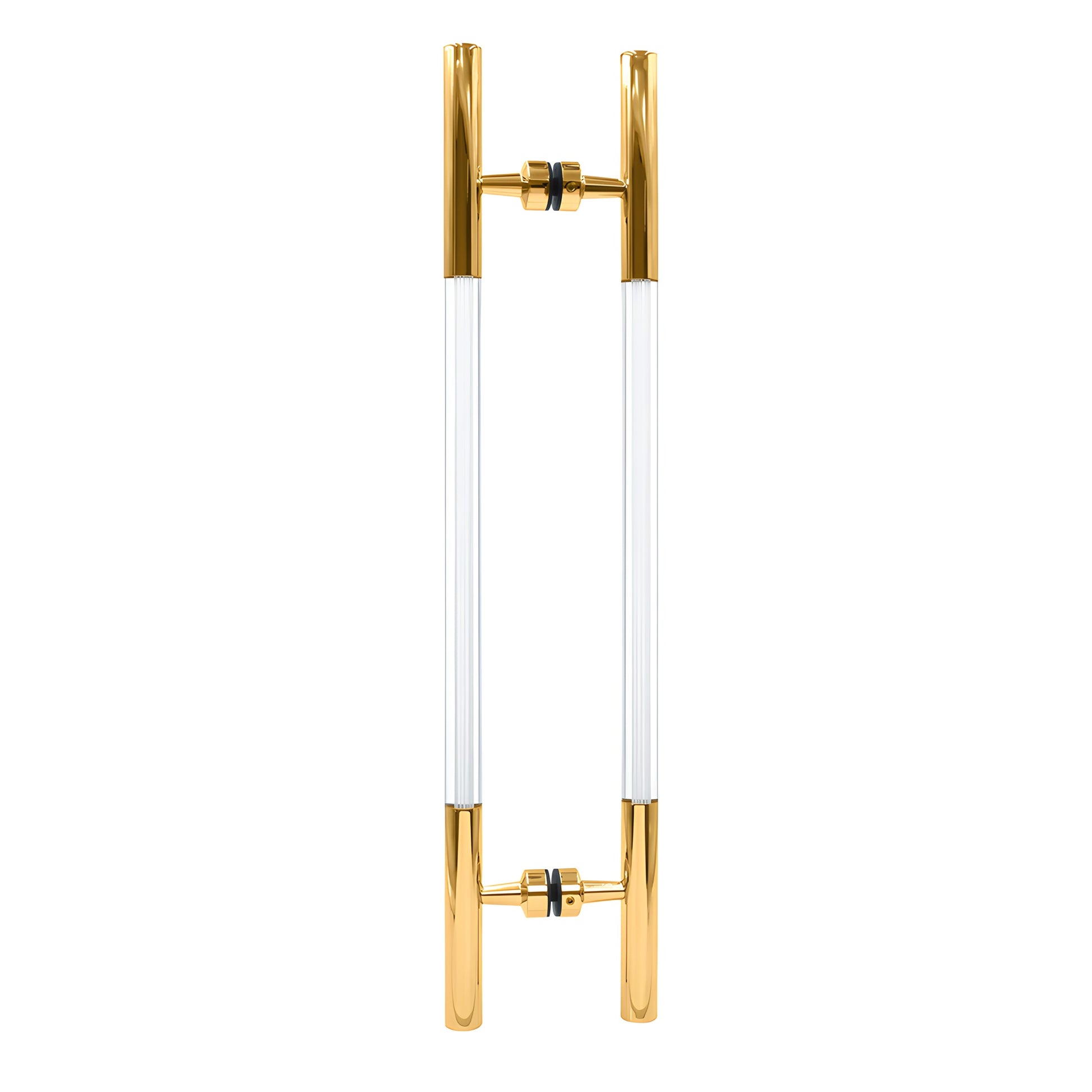

CRL Polished Brass 24-1/2" Overall Length Glass Mounted Ladder Style Pull Handle with Acrylic Semi-Inserts

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	CA18X18BR
Pack Size	1
Diameter	1 in. (25 mm)
Finish/Color:	Polished Brass
Glazing Thickness	3/8 in., 1/2 in. (10 mm, 12 mm)
Material	Stainless Steel

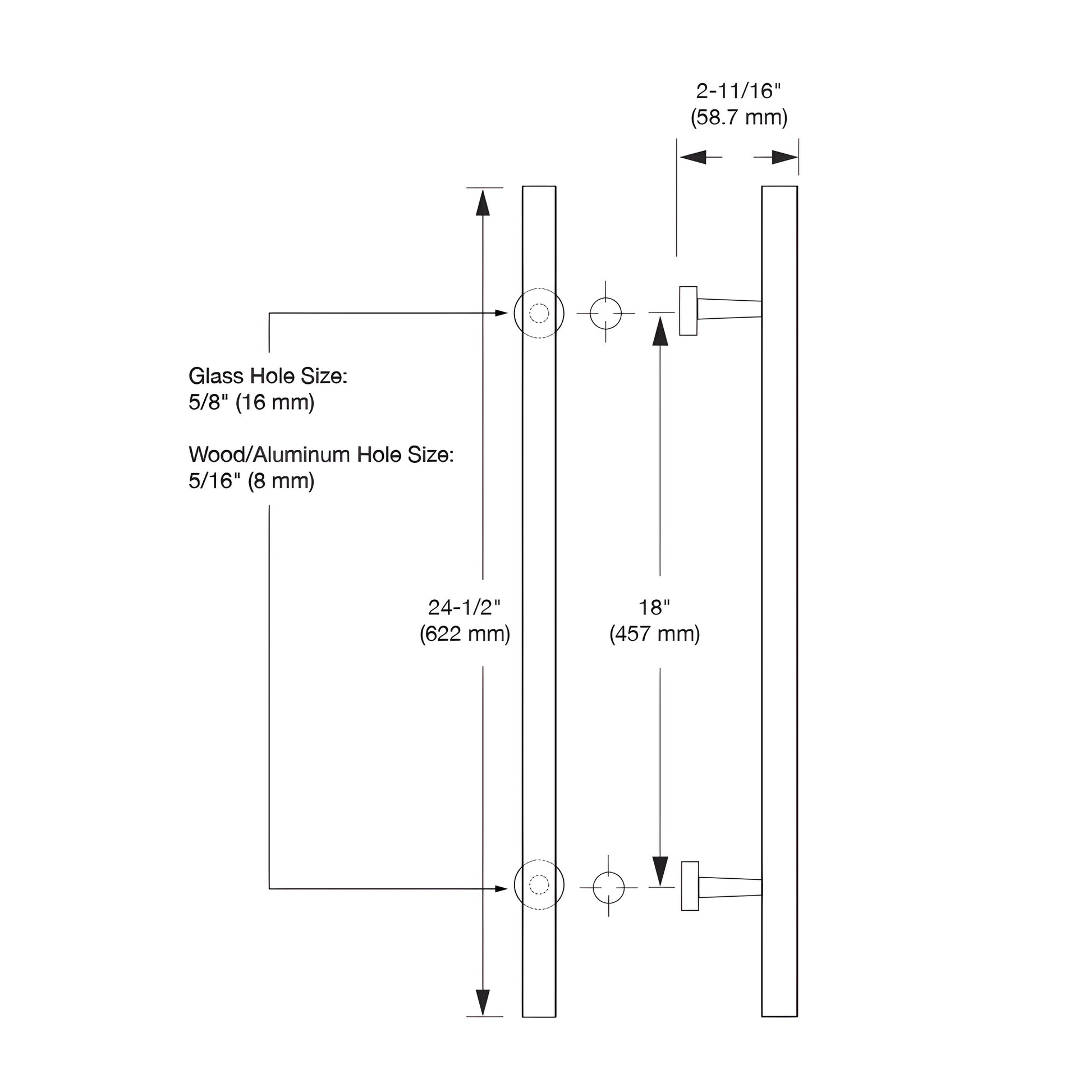

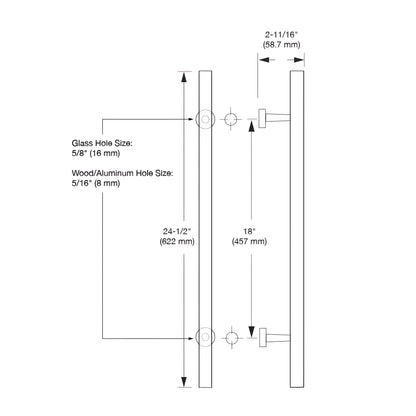

Mounting Center To Center	18 in. (457 mm)
Mounting Hole Diameter	5/8 in. (16 mm)
Mounting Type	Back-To-Back
Overall Length	24-1/2 in. (622 mm)
Style Washer Diameter	1-1/4 in. (32 mm)
Style Washers	Yes

Description

Product Details

For Use with 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel with Brass PVD Coating with Acrylic Semi-Insert (White Accent Lines in Acrylic)

This CRL Glass Mounted Ladder Style Pull Handle with Acrylic Semi-Inserts is available in two finishes.

SPECIFICATIONS:

For Use with: 3/8" to 3/4" (10 to 19 mm) Glass

Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing with Acrylic Semi-Insert (White Accent Lines in Acrylic)

Glass Fabrication Required:

Two 5/8" (16 mm) Diameter Holes

INCLUDES:

2 Each: Through-Bolts for Glass Mounting

4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
