Product Details
- For Use with 3/8" and 1/2" (10 and 12 mm) Glass
- 1" (25 mm) Diameter Stainless Steel with Polished Brass PVD Coating with Acrylic Full Insert (Black Accent Lines in Acrylic)

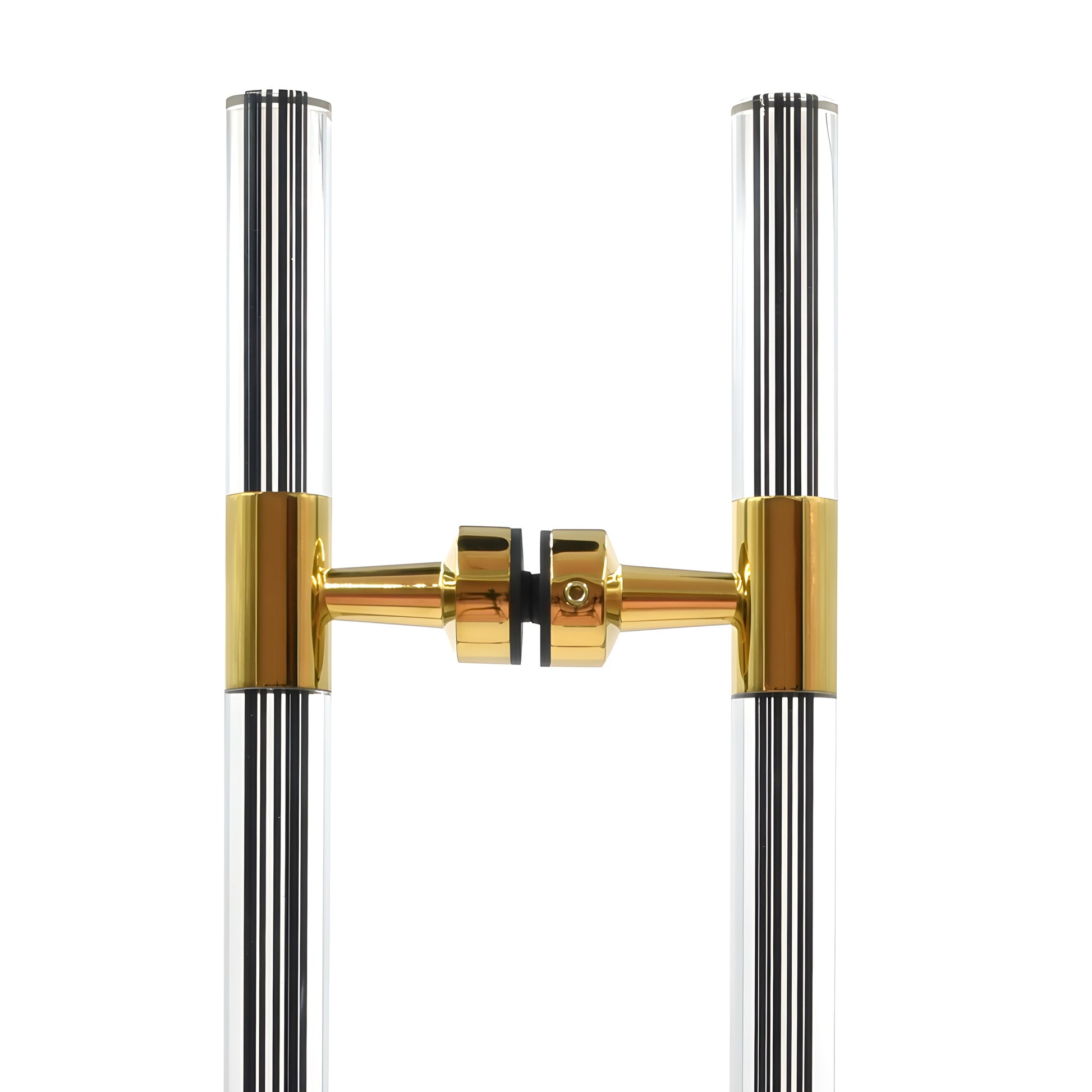

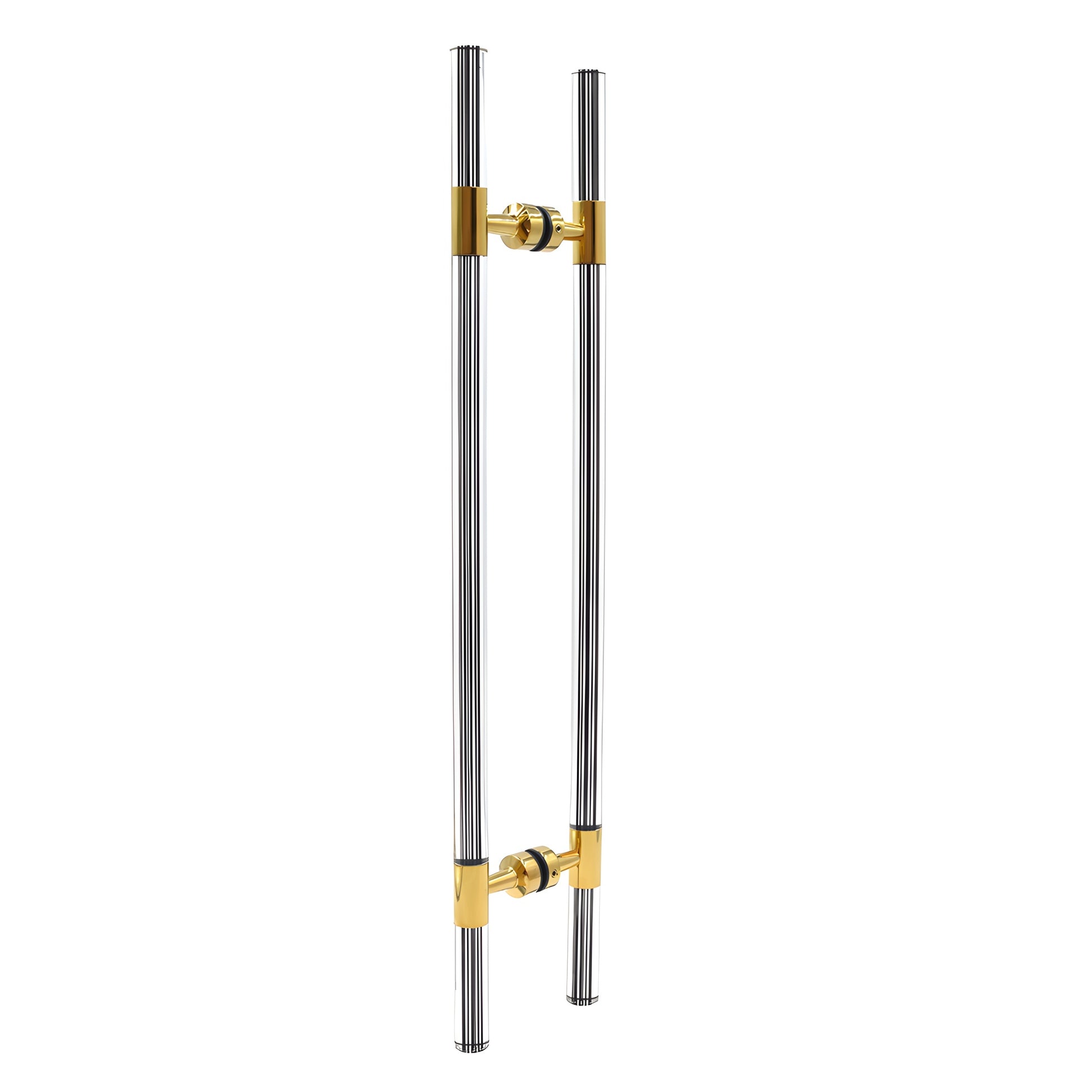

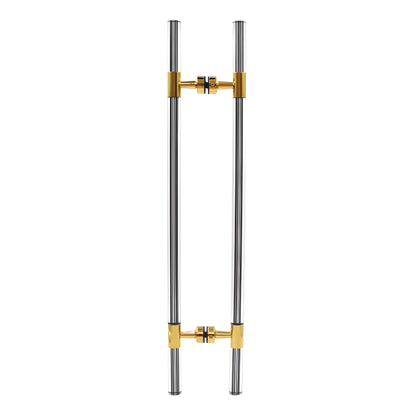

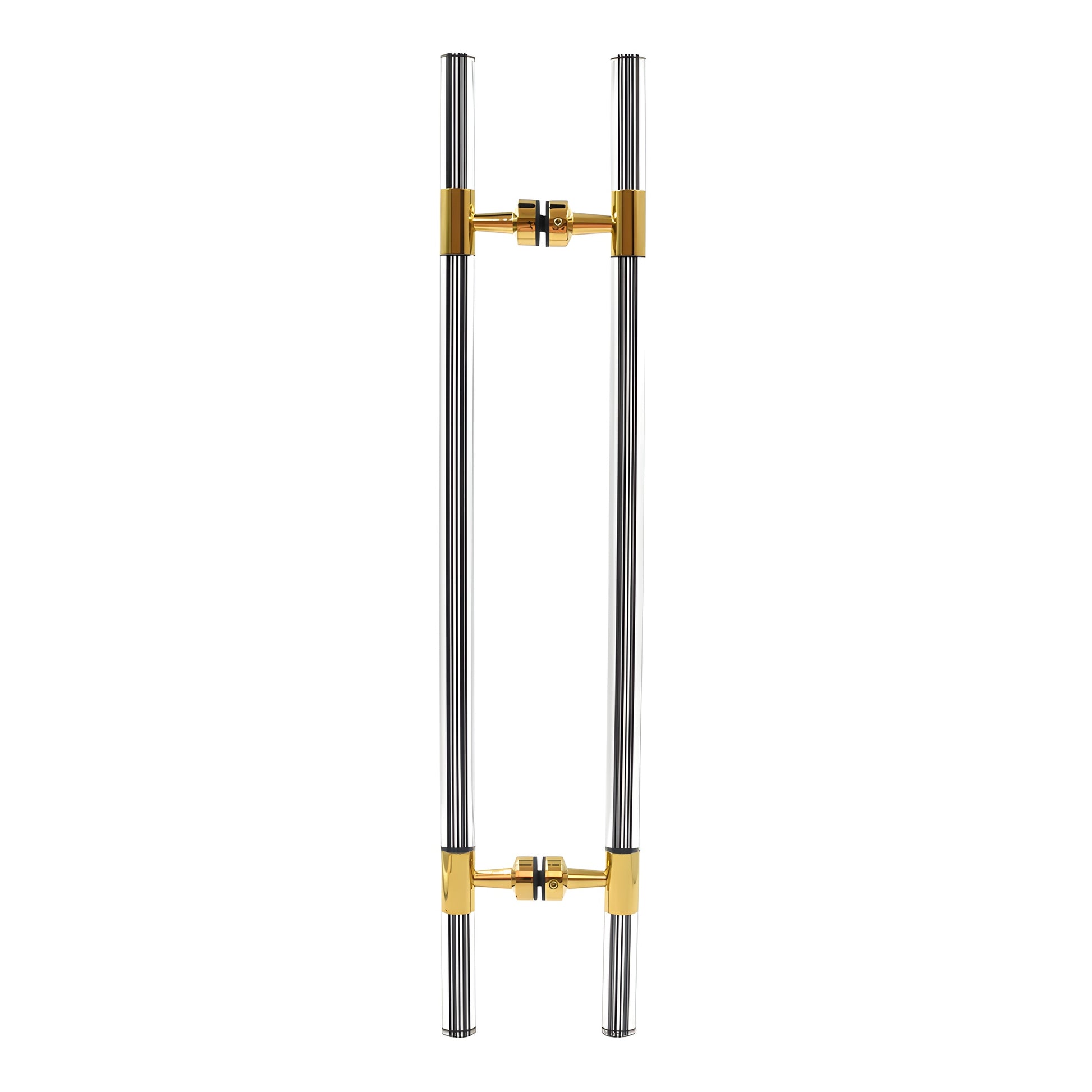

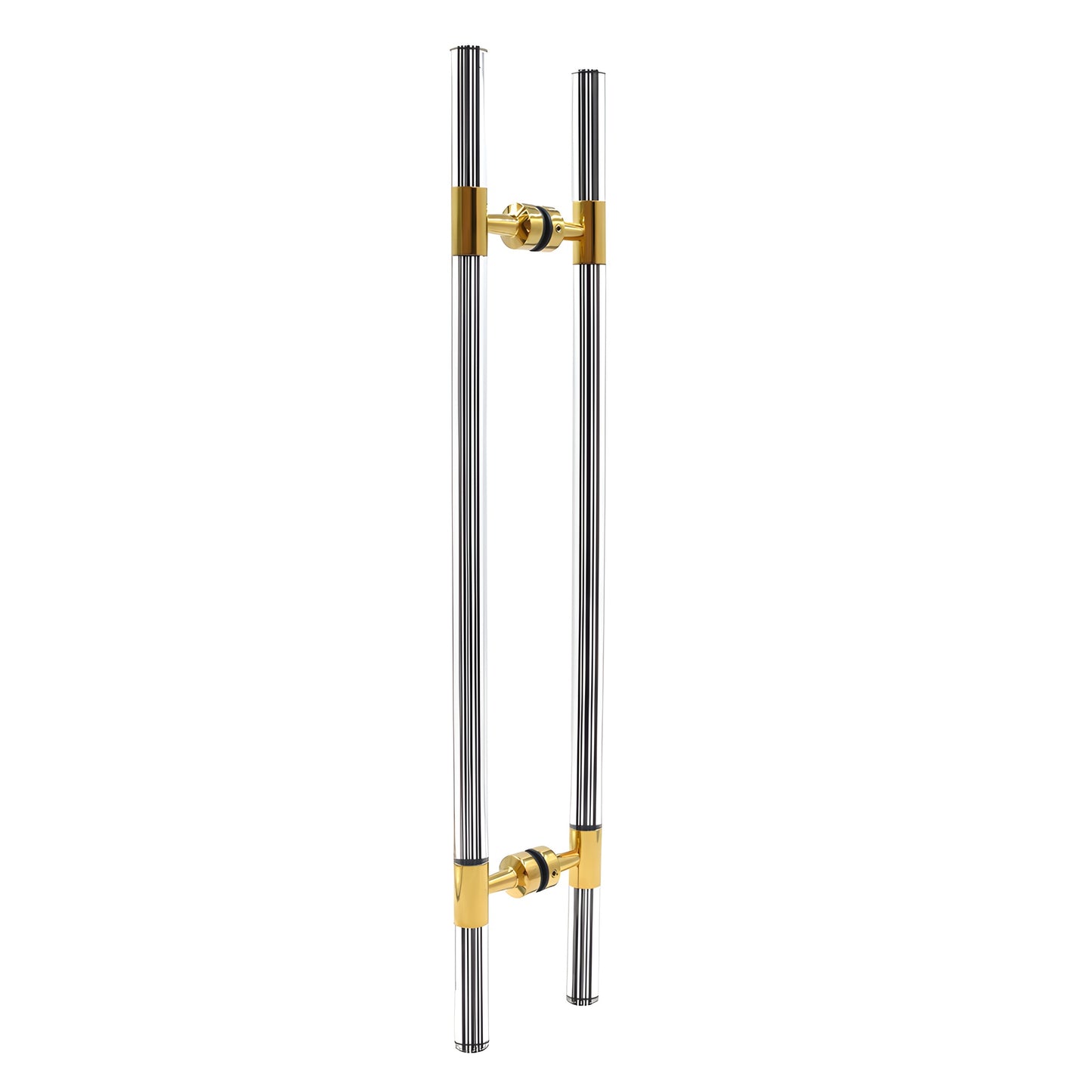

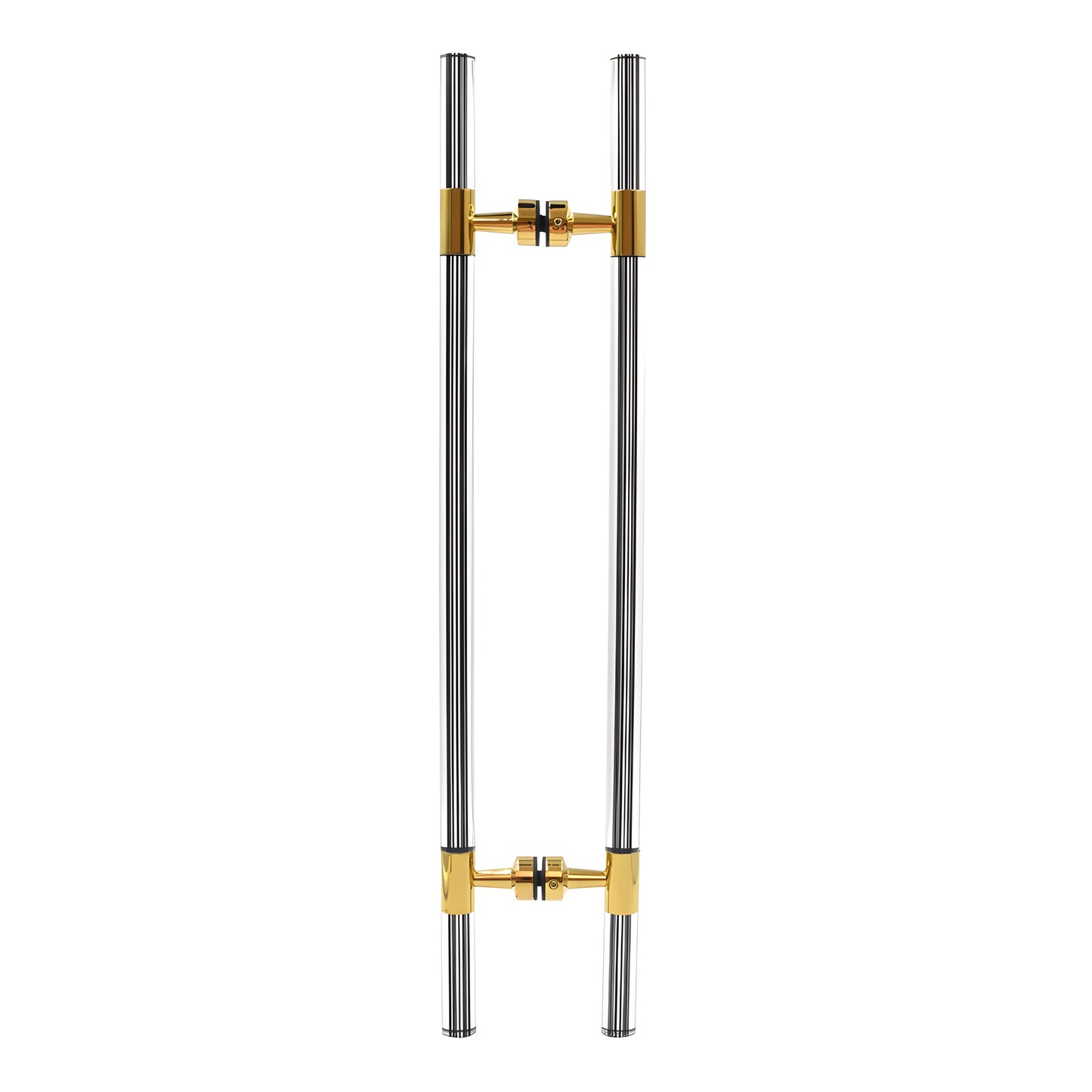

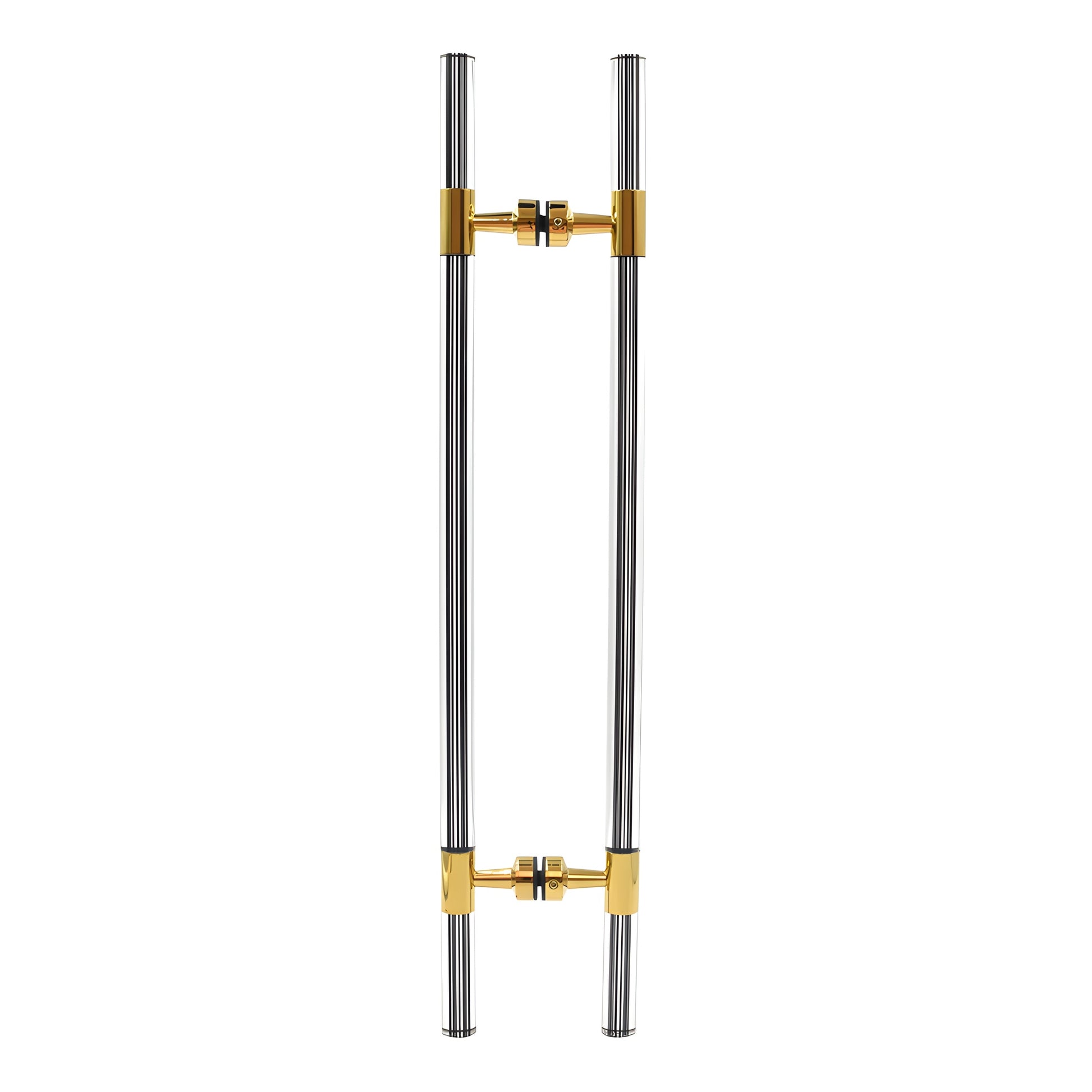

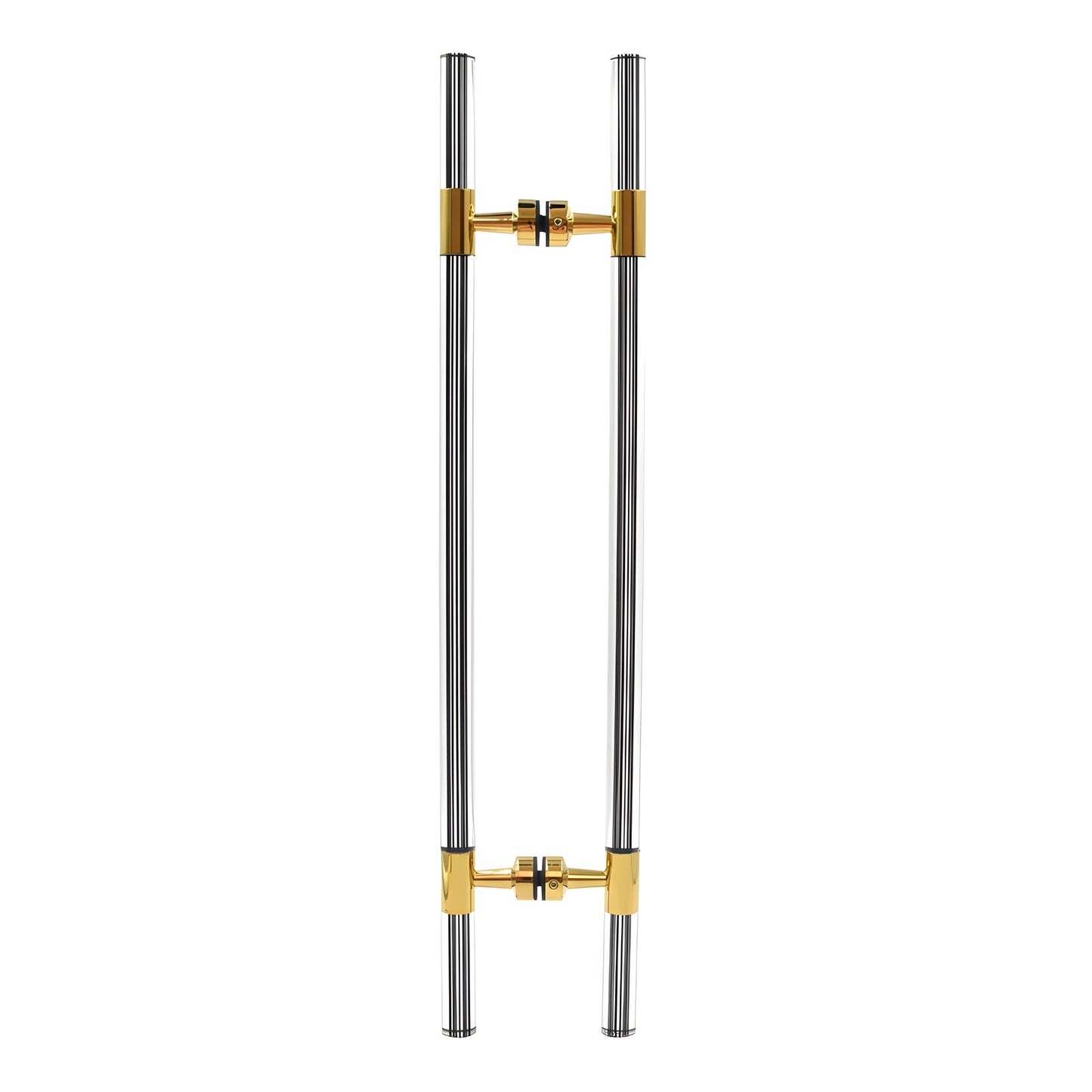

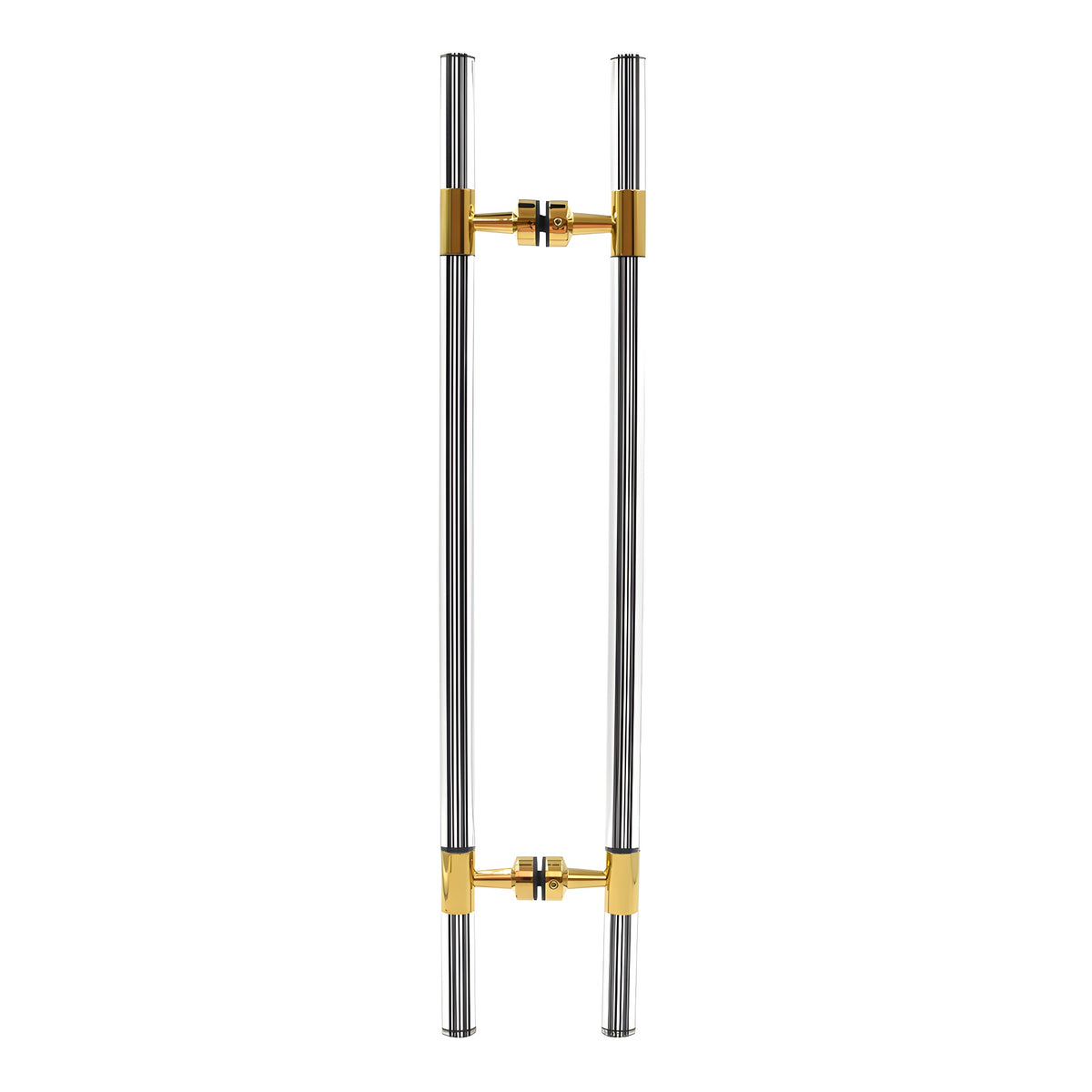

This CRL Glass Mounted Ladder Style Pull with Acrylic Full Inserts are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 1/2" tempered glass. Stock size of 27" total length with 18" mounting hole center-to-center length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing with PVD coating.
SPECIFICATIONS:
For Use With:
3/8" to 1/2" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass Tubing with Acrylic Full Insert (Accent Lines in Acrylic)

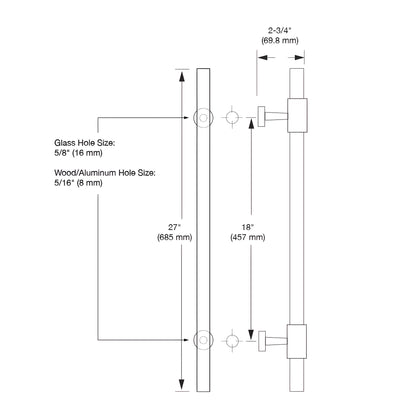

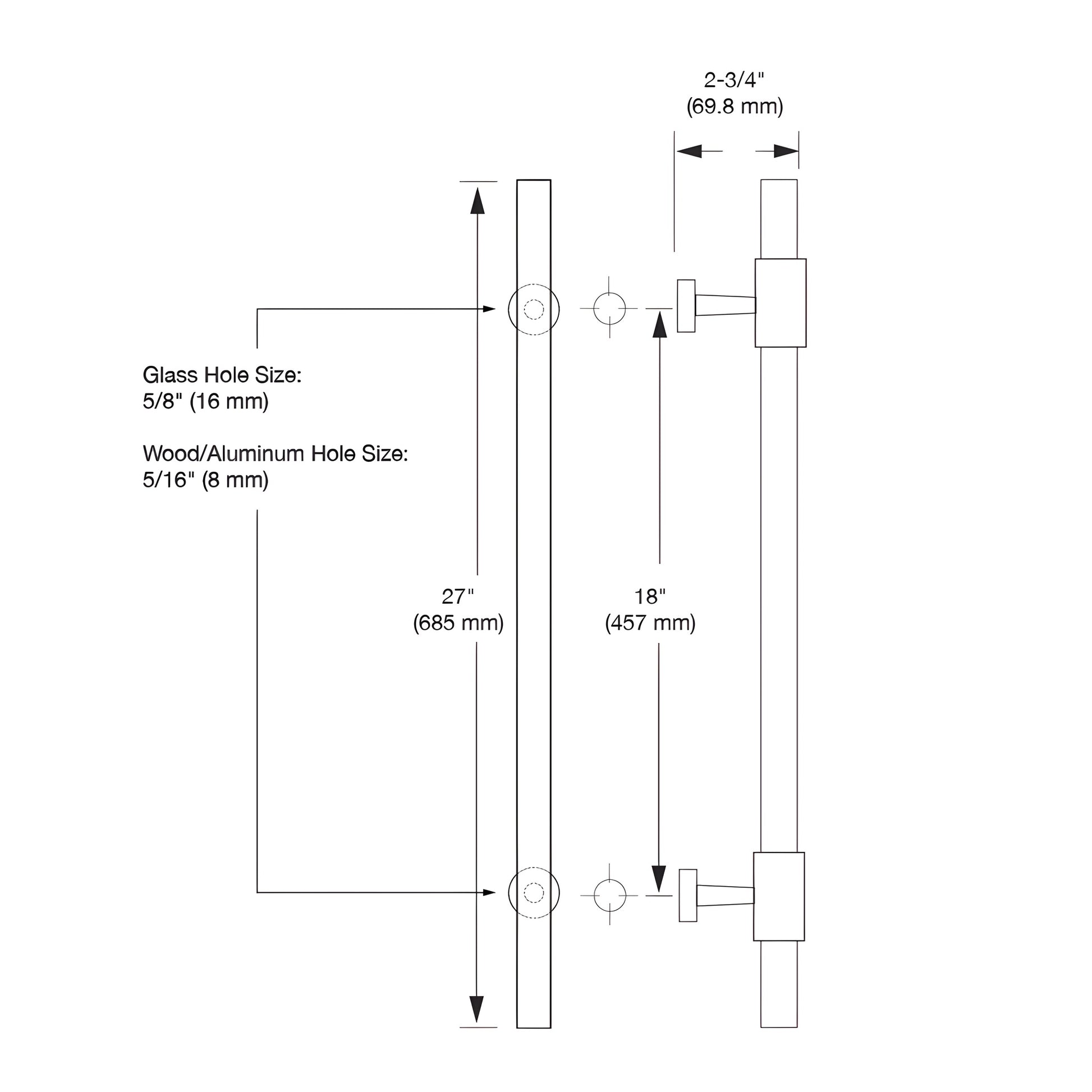

Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter
Matching Metal Finish Washers and Rubber Gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
