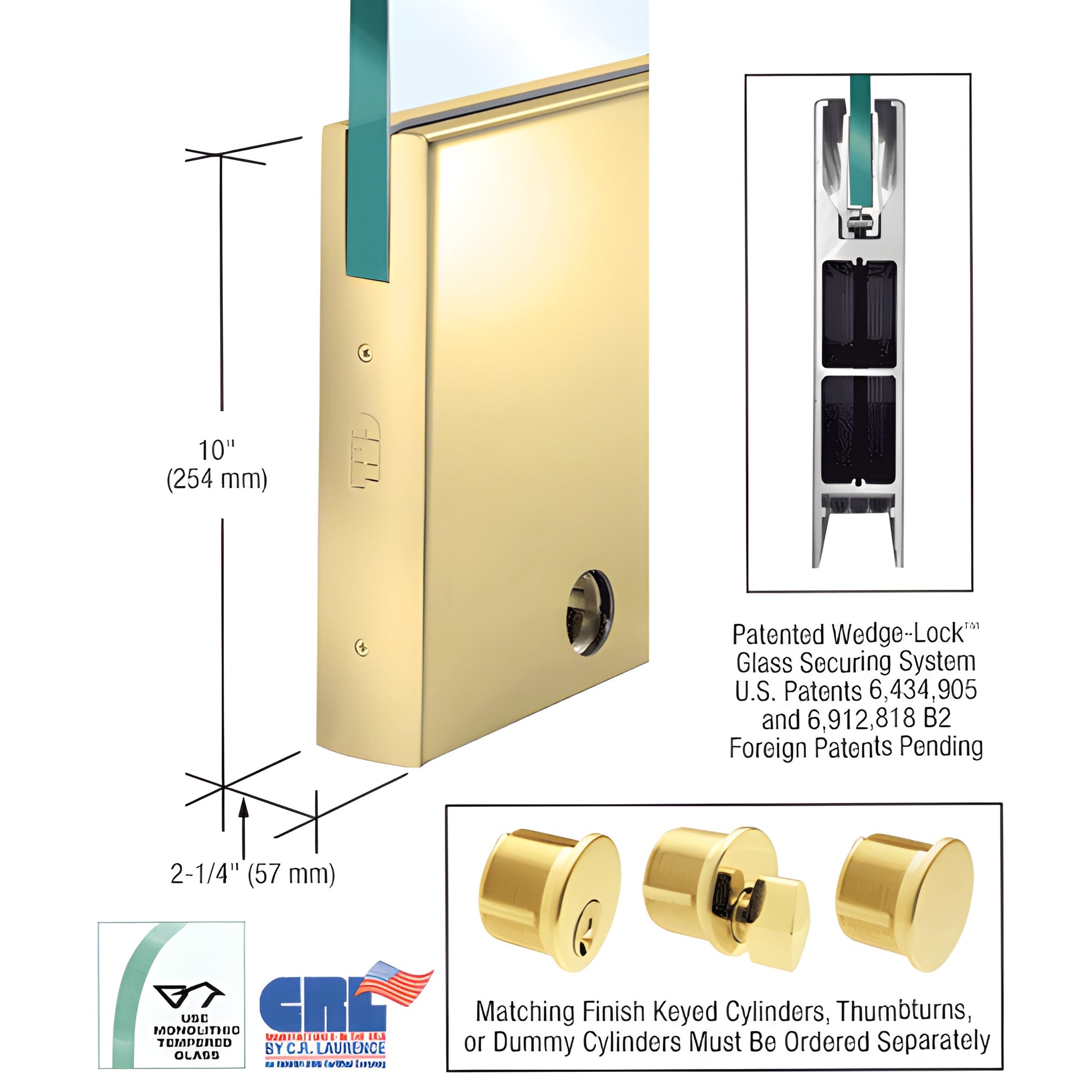

CRL Polished Brass Glass Door Rail 10" w/ Lock, Fits 3/4" Glass

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SPB34CL) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The patented wedge action secures monolithic tempered glass by applying downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the wedge pulls the extrusions together against an angled groove in the rail, the gasket and wedge combine to generate exceptional clamping force—more than 900 lbs. in the 9" (228.6 mm) corner rail—delivering industry-leading glass retention for commercial glass doors and storefronts.

NOTE: Actual product height: 10" (254 mm)

Key differentiators: fast installation, field adjustability, and durable one-piece housing. The Wedge-Lock® system provides the fastest install time among door rails—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated and ready-to-install with End Caps installed. After mounting, simply attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide.

The Adjustable Door Alignment System (standard on both top and bottom rails) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. Remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, the outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide permits pivot placement other than the American Standard 2-3/4" (69.8 mm) setback, enabling fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails: models accept 3/8" to 3/4" (10 to 19 mm) glass; rigid single-component housing that resists shifting over time; internal components remain in place during installation; and glass-securing pads designed for longevity in
