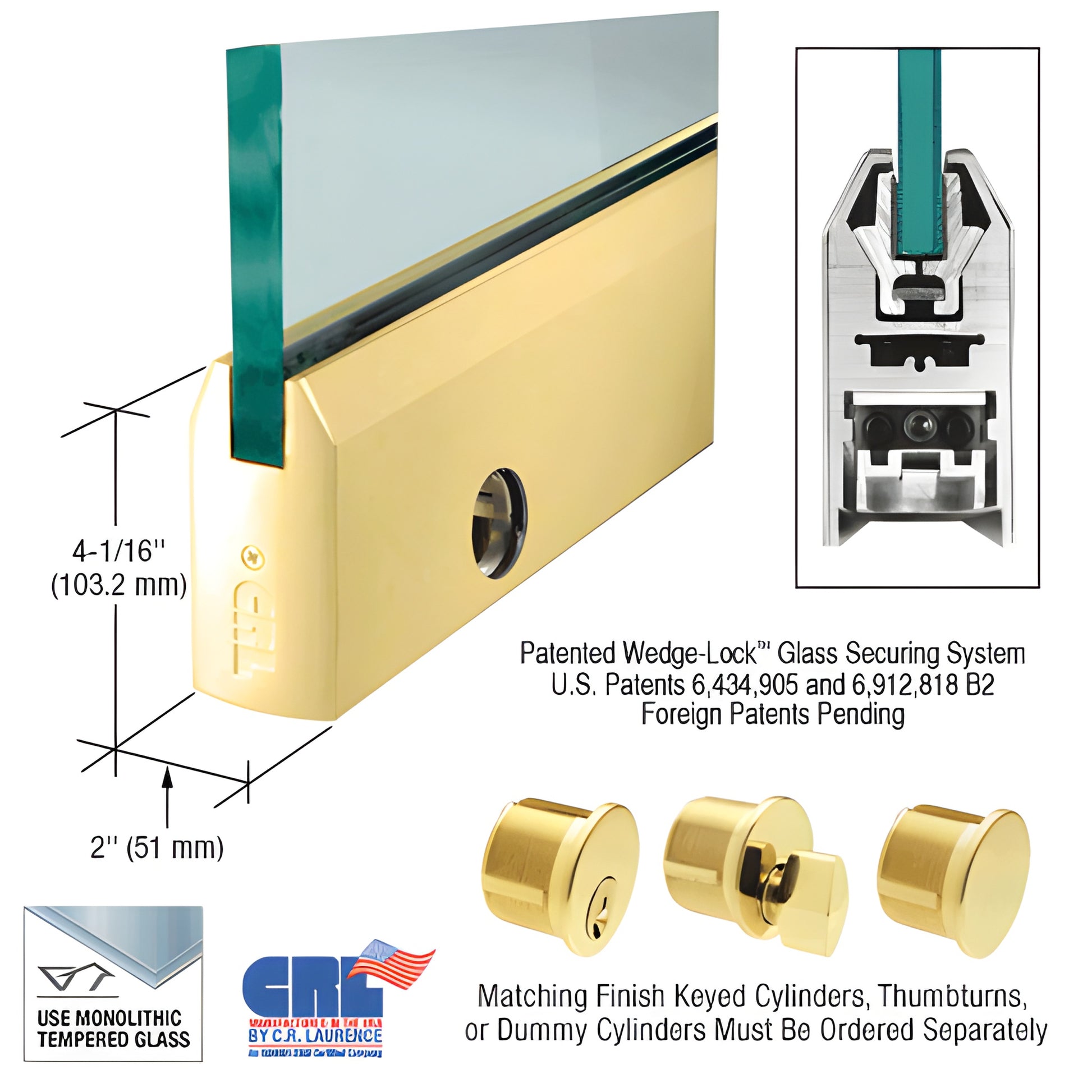

CRL Polished Brass 4in Tapered Rail for 3/8in Glass w/ Lock, Custom

• Custom Length for 3/8" Glass (10 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPB38CL), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for frameless and glass storefront doors, this patented wedge mechanism applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar to clamp tempered glass securely—creating high clamping force in short rails and even greater force in full-length rails.

The Wedge-Lock® system delivers fast installation for installers of commercial glass doors and storefront glass entrances. Rails ship fully fabricated with end caps installed and include an adjustable door alignment slide so the door can be aligned +/-1/8" (3.2 mm) without removal. After installation, access three socket head cap bolts behind the end cap to lock or fine-adjust the slide. The low-profile slide and slotted pivot grooves allow non-standard setback fabrication for out-of-square openings.

Key differentiators:

• High clamping force with single-component, rigid housing — resists shift or loss of adjustment over time
• Internal components remain assembled for faster, cleaner installations
• Durable glass securing pads engineered for long life in extreme environments
• Available with or without locks; locking models ship with the mechanism installed

Notes & ordering: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms, pivots, closer arms and keyed cylinders/thumbturns must be ordered separately. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail. Specify door rail length (including end caps) when ordering custom lengths.

Product Warning: Ships standard with Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.
