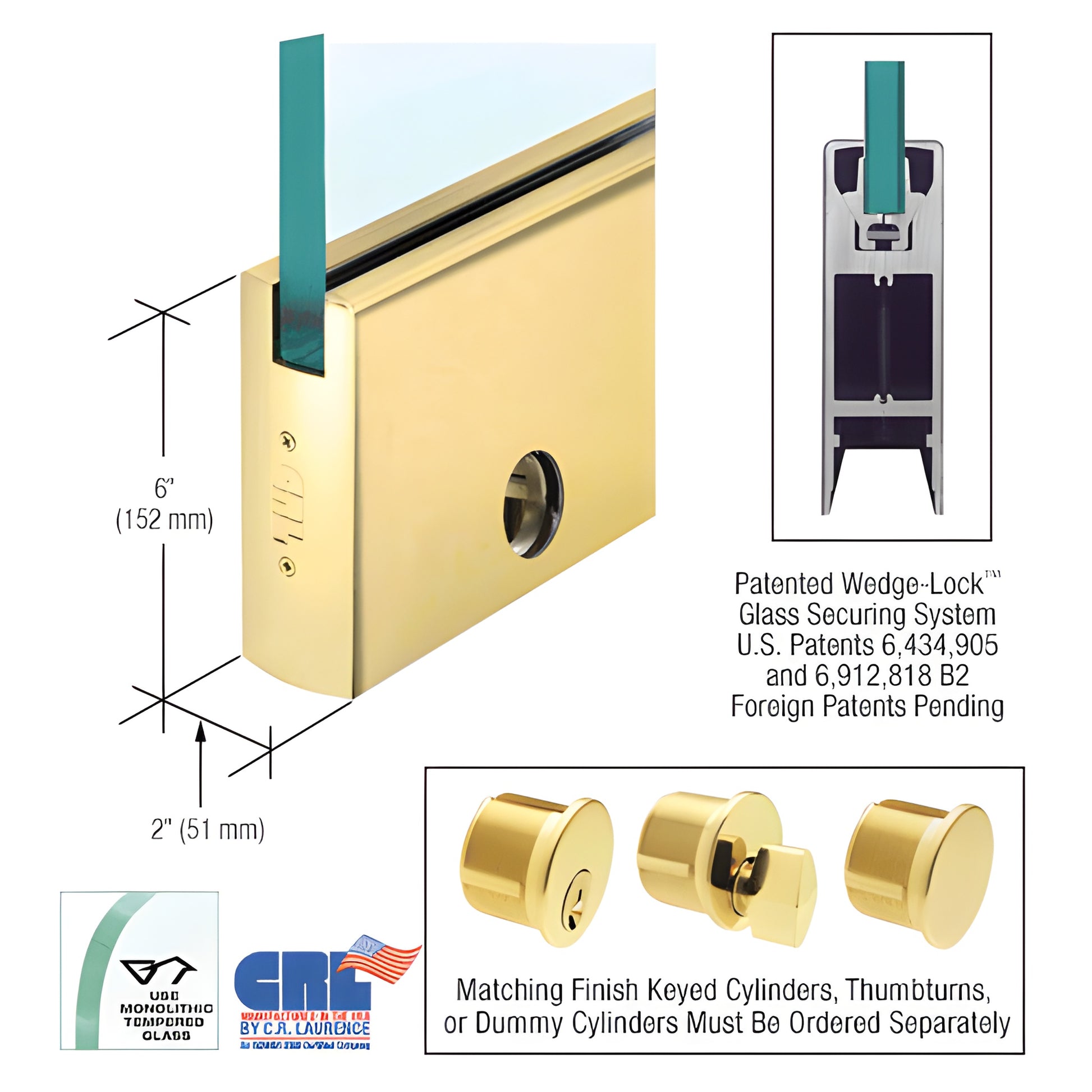

CRL Polished Brass 3/8" Glass 6" Square Door Rail with Lock, Custom

• Custom length door rails for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System for secure, high-force glass retention
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SPB38CL) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure glass with a bottom-applied wedge action. Two glass-retaining aluminum extrusions are pulled down by a stainless steel bar and socket head cap bolts into an angled groove, creating exceptional clamping force (more than 900 lbs. in the 9" Corner Rail). This wedge-action design plus a specialized door retaining gasket delivers reliable long-term retention in full-length door rails.

The Wedge-Lock® system also provides fast, installer-friendly assembly. Experienced installers can prepare a door for installation in under ten minutes. Rails arrive completely fabricated and ready-to-install with End Caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows 1/8" (3.2 mm) in-out adjustment at both top and bottom without removing the door—useful for vertical out-of-square openings.

Adjustments are made by removing the End Cap to access three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile adjustable slide permits pivot placement other than the American Standard Setback of 2-3/4" (69.8 mm).

Other benefits and features:

• Available for 3/8" or 1/2" (10 or 12 mm) glass where applicable
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components remain installed during rail installation—no disassembly required
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements. Rail specifications, templates, and hardware packages are available from CRL Technical Sales.

Ordering information

• All Door Rails include the standard Kwik-Adjust™ Pivot Alignment
