CRL Polished Brass 3/8" Frameless Glass Door Rail w/ Lock

• Custom length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails: 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

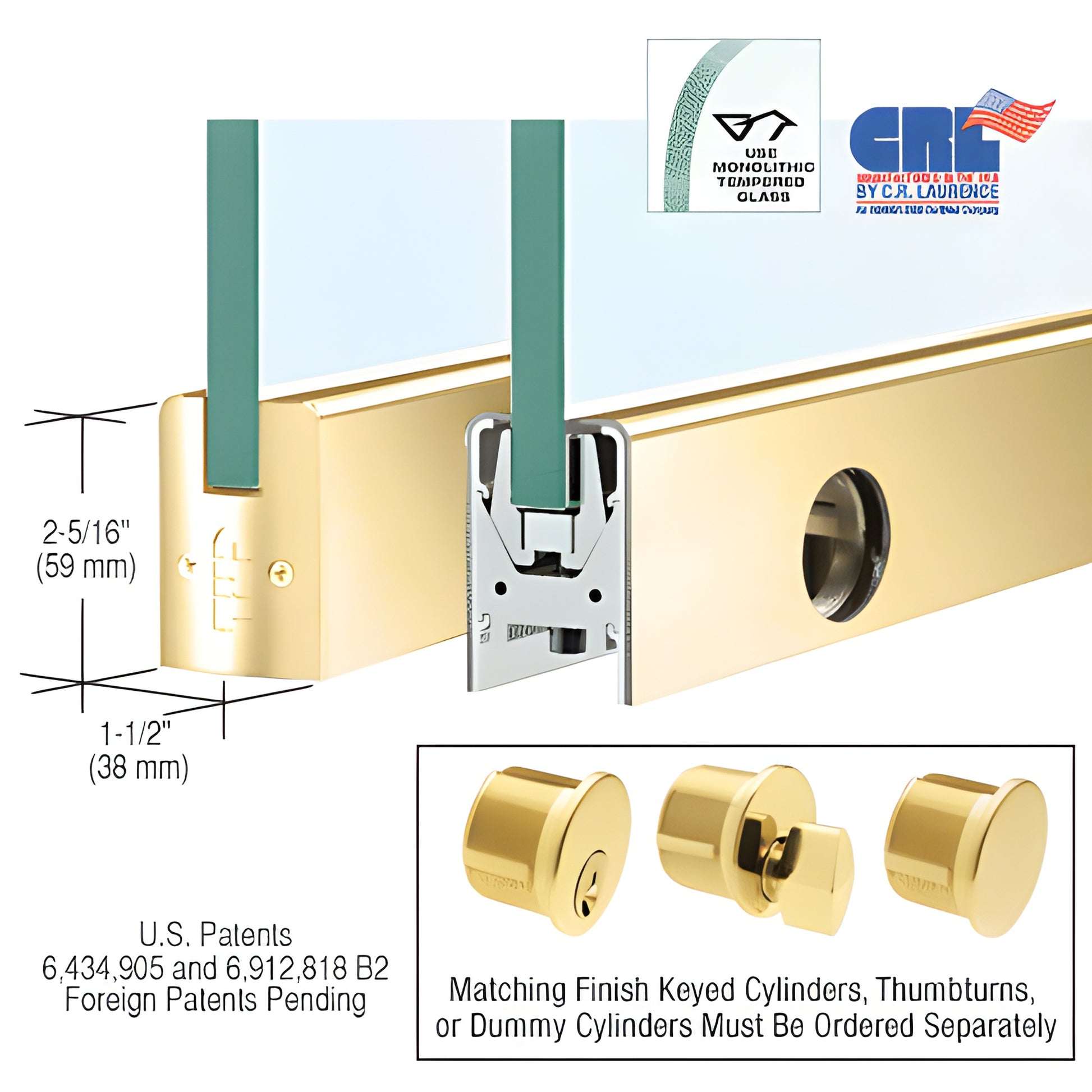

Our CRL Low Profile Door Rail (SKU: DR2SPB38CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1). Rails come complete with End Caps, installation instructions, and adjustment wrenches for fast, on-site installation.

NOTE: Actual product height: 2-5/16” (59 mm).

The Wedge-Lock® system secures 3/8" (10 mm) glass and provides one of the fastest installations among door rail systems—experienced installers can prepare a door in under ten minutes. Rails arrive fabricated and ready-to-install; after mounting the rail, attach the door arm or pivot (not included) to the built-in adjustable door alignment slide.

The adjustable door alignment system (standard on top and bottom rails) allows up to 1/8" (3 mm) in/out adjustment without removing the door. Remove the end cap to access three socket head cap bolts: the center secures the slide, the outer bolts adjust ±1/8" (3 mm). The low-profile slide also permits pivot placement other than the American Standard setback for out-of-square openings.

Other Wedge-Lock® advantages: available models accept 3/8" to 3/4" (10–19 mm) glass; a rigid one-piece housing that resists shifting; internal components remain installed during mounting; and durable glass securing pads for extreme environments.

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to suit job requirements.

CRL Wedge-Lock® Door Rails come in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e‑mail.

ORDERING INFORMATION:

• All door rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots are sold separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumb
