CRL 3/8" Polished Brass Low-Profile Glass Door Rail w/ Lock - Custom

• Custom length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

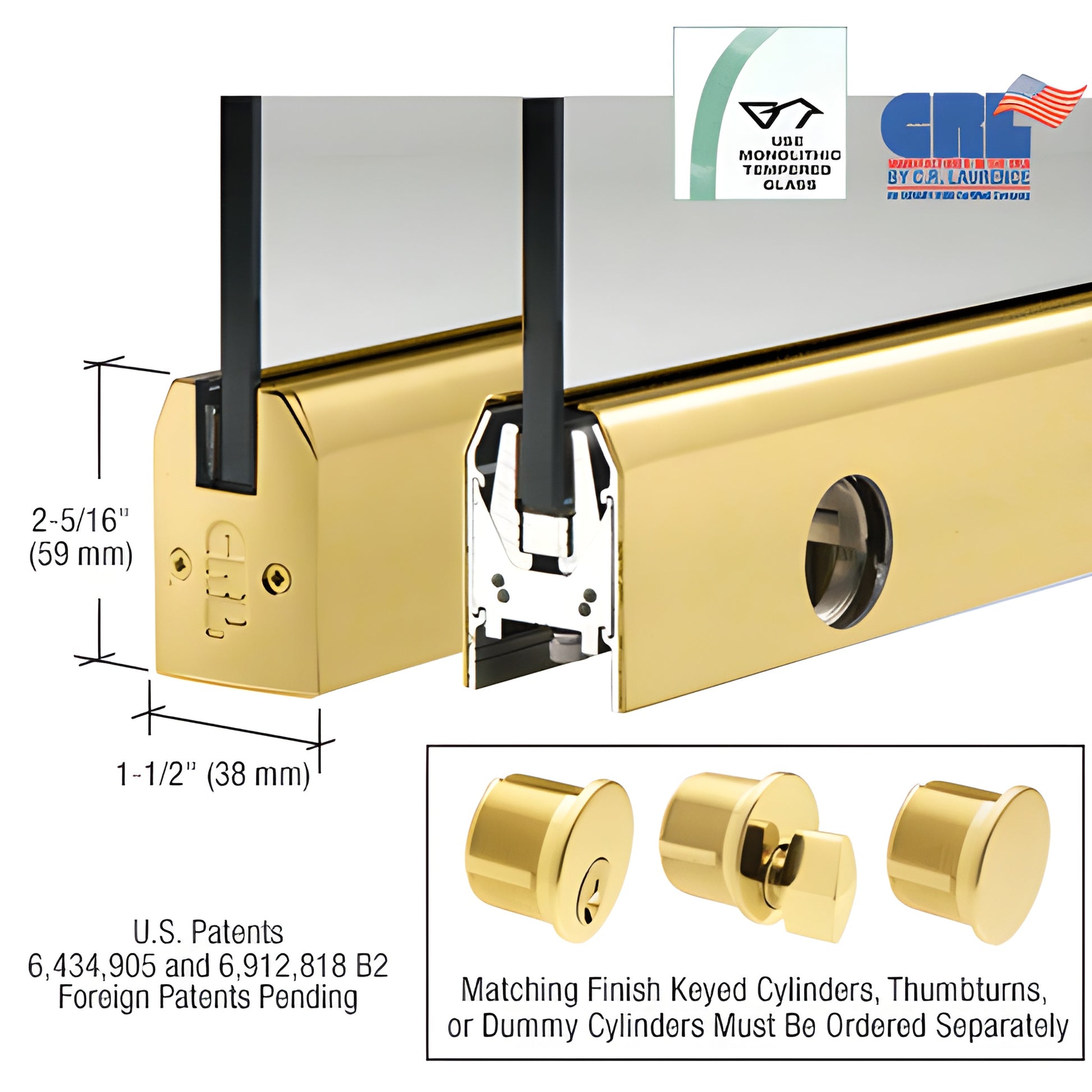

Our CRL Low Profile Door Rail (SKU DR2TPB38CL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System. Rails come complete with end caps, installation instructions, and adjustment wrenches for fast, ready-to-install performance. Ideal for frameless glass door projects requiring a low profile glass door rail for 3/8" tempered glass.

NOTE: Actual product height: 2-5/16” (59 mm)

The Wedge-Lock® system not only secures glass— it provides the fastest installation time of any door rail system in the industry. Experienced installers can prepare a door for installation in under ten minutes. Rails ship completely fabricated with end caps installed; after mounting the rail the installer simply attaches the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System lets you adjust the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. To access adjustments after installation, remove the end cap to reveal three socket-head cap bolts: the center bolt secures the slide, the outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® door rails:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and stays in adjustment
• Internal components remain installed during installation—no disassembly required
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block on all Wedge-Lock® rails

NOTE: Arms and pivots must be ordered separately to meet job requirements.

Finishes: CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
