CRL Polished Brass 3/8in Tapered Glass Door Rail 35-3/4in No Lock

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (fastest installation time)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

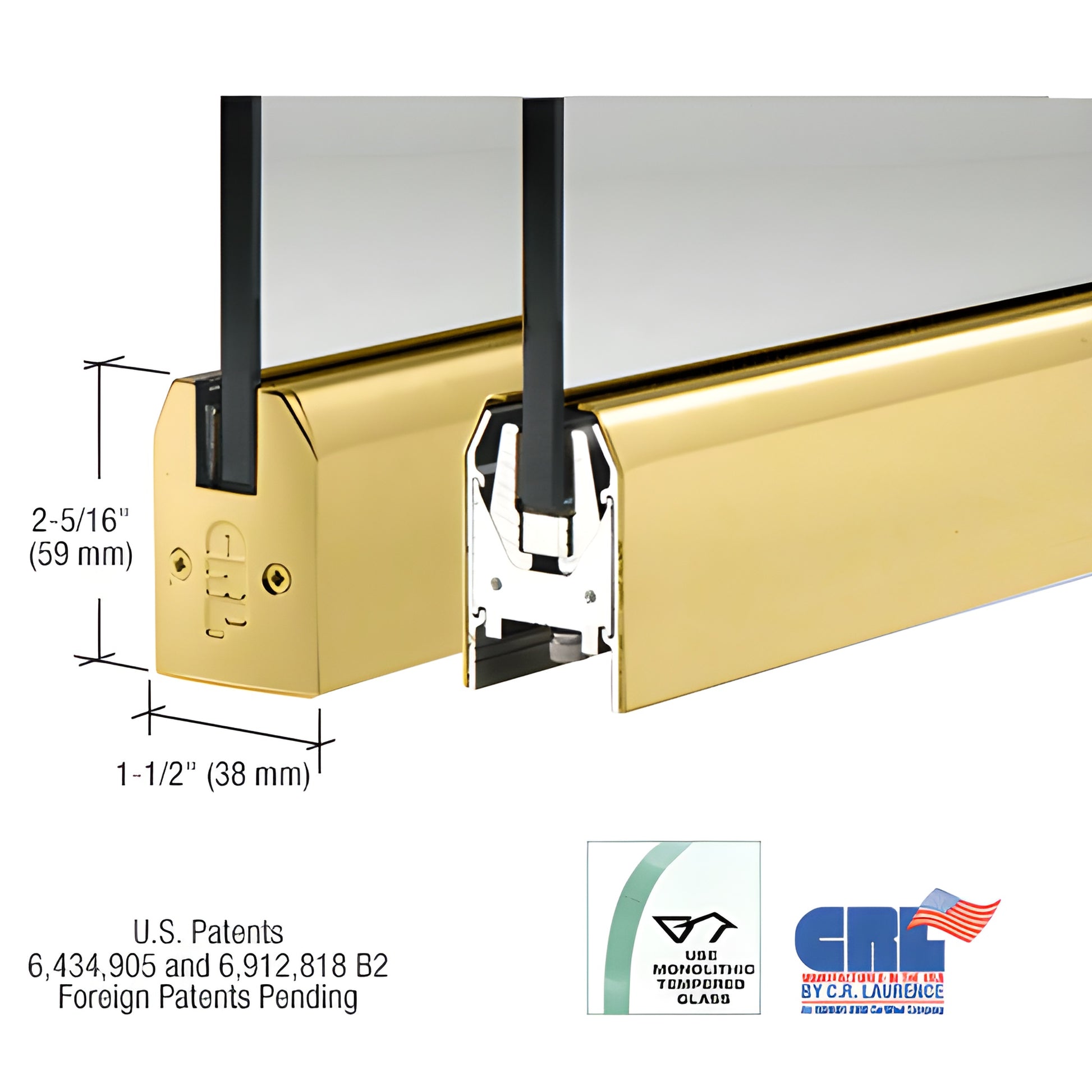

Our CRL Low Profile Door Rail (SKU: DR2TPB38S) is engineered for frameless glass door installations. At just 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide, the rail incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent No. EP 1 404 939 B1) for a secure, long-lasting grip on glass and the fastest installation of any door rail system in the industry. Rails ship complete with end caps, installation instructions, and adjustment wrenches for immediate, ready-to-install use.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides more than secure attachment — it delivers rapid installation. Experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated with end caps installed; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System lets you shift the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. To access adjustments, remove the end cap to reveal three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of Wedge-Lock® Door Rails: models accept 3/8" to 3/4" (10 to 19 mm) glass; a rigid single-component housing that resists shifting and loss of adjustment; internal components remain in place during installation; and durable glass-securing pads designed for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to match job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL
