CRL 4" Polished Brass Double-Sided Two-Pocket Door Header - Custom Length
Item# DCH42DPBC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Glass Pocket-Pair Door Opening-Glass Pocket
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. (10 mm)
Height
1-3/4 in. (44 mm)
Width
4 in. (102 mm)
- Available in 4" or 4-1/2" (101.6 or 114.3 mm) widths
- For 3/8" or 1/2" (10 or 12 mm) glass
- Offered in one- or two-pocket configurations and as single- or double-sided headers
- Multiple finishes available

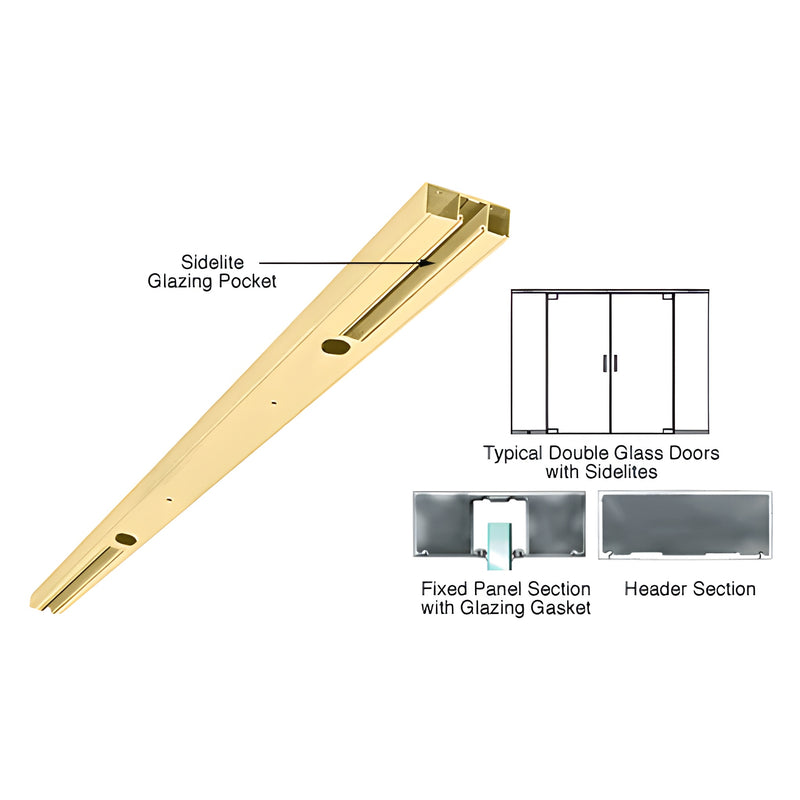

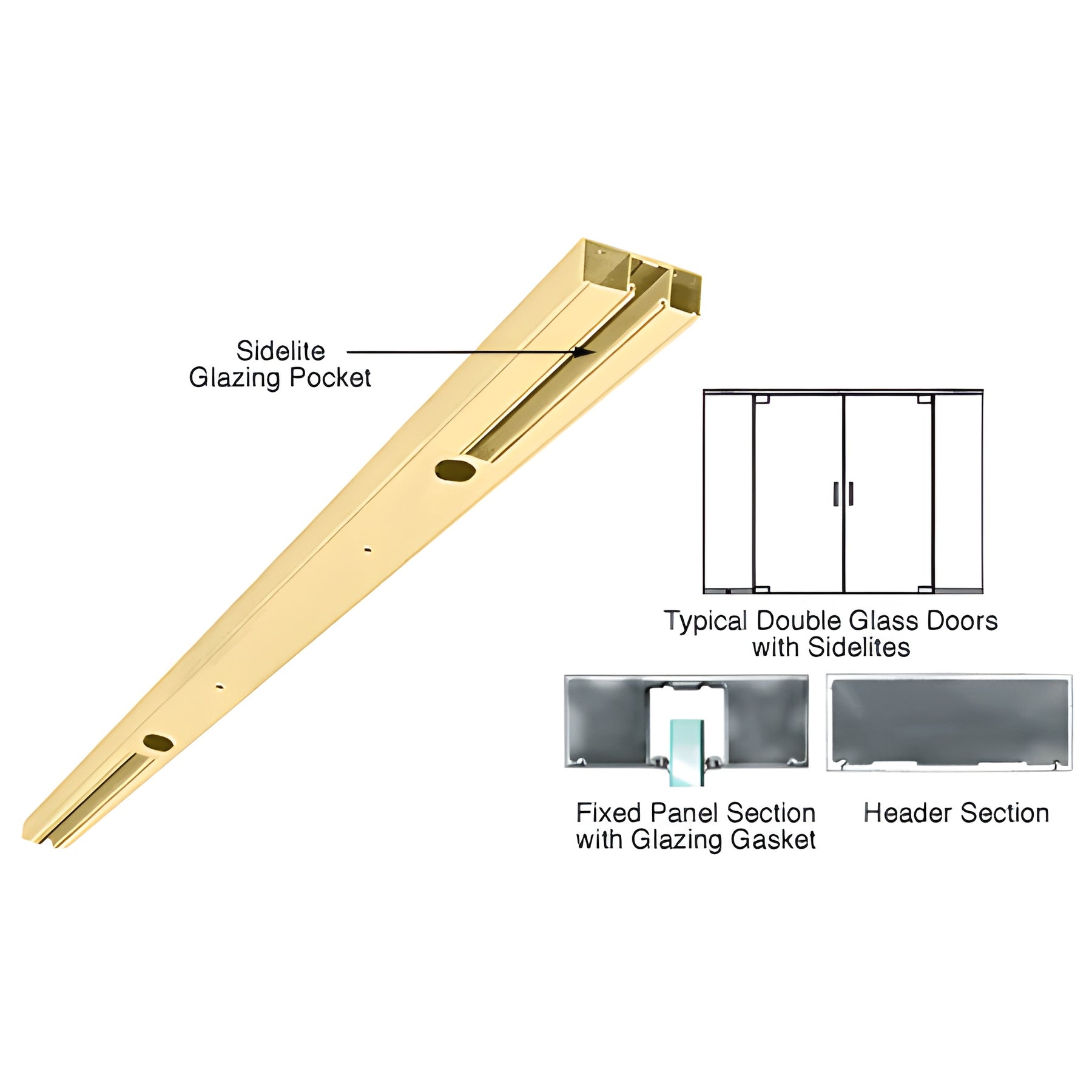

CRL SKU DCH42DPBC: Snap-in glazing pocket for headers used with overhead door closers and sidelites. When installations require a door or pair of doors flanked by fixed sidelites, this snap-in insert with an integrated glazing pocket installs on either side of the door area so you can run one continuous header—center fabricated for doors and sides fabricated for fixed sidelites. Glass is secured with the supplied Top Load Roll-in Gasket. Use CRL UC38 Series U-Channel to secure the bottom of the fixed sidelites. Ideal for commercial storefronts and interior glass partitions where a continuous header for overhead door closers is needed. Contact our Technical Sales Department for installation guidance and compatibility.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please request this from CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor and video card.
Brass Finish Advisory:
Brass and brass finishes are durable but can oxidize and develop a tarnished appearance over time regardless of packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Differentiators: Snap-in glazing pocket for continuous headers, compatible with overhead door closers, top-load roll-in gasket included, pairs with UC38 U-Channel for secure sidelites.
Ready to specify DCH42DPBC for your project? Contact CRL Technical Sales or place your order today.
Cleaning & Maintenance
