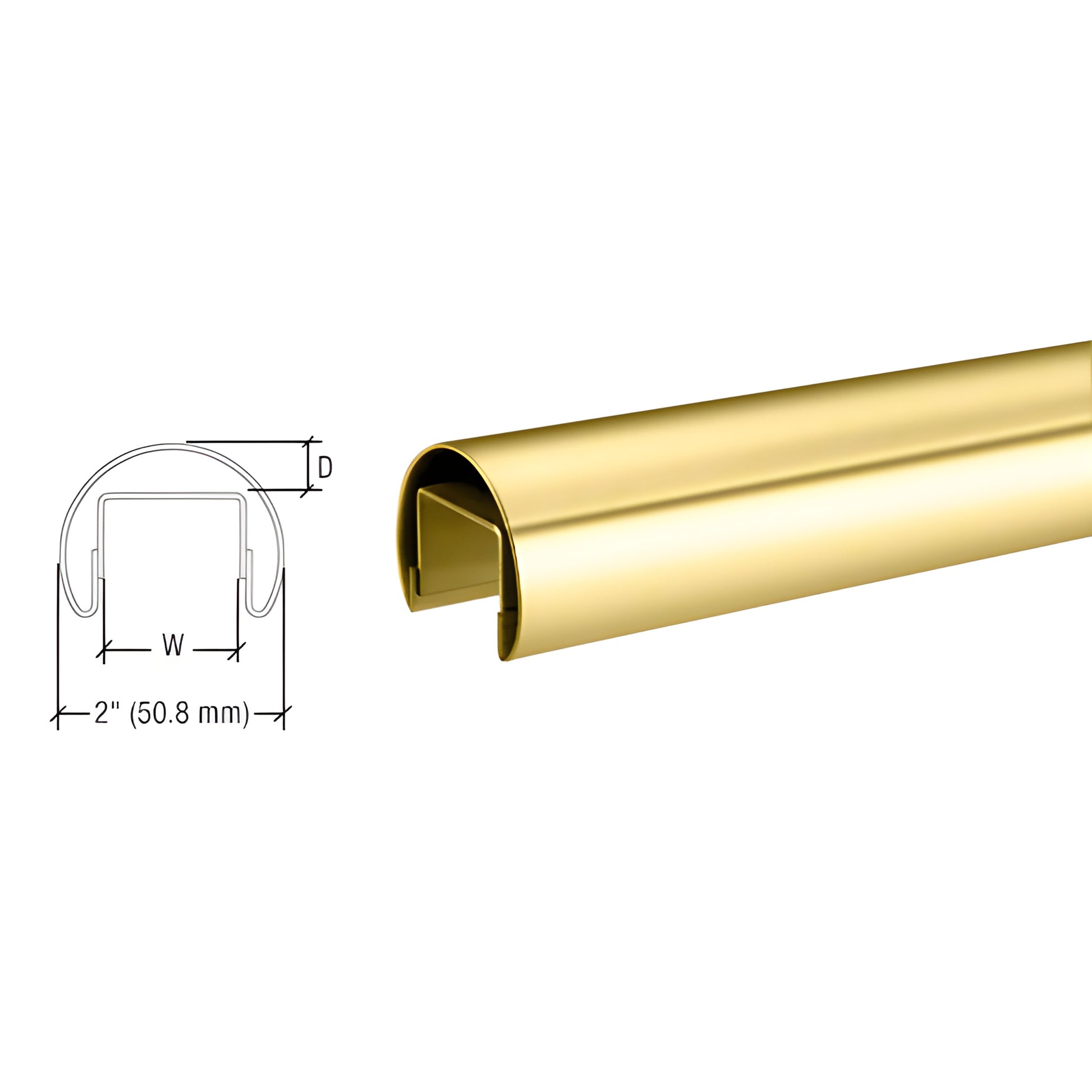

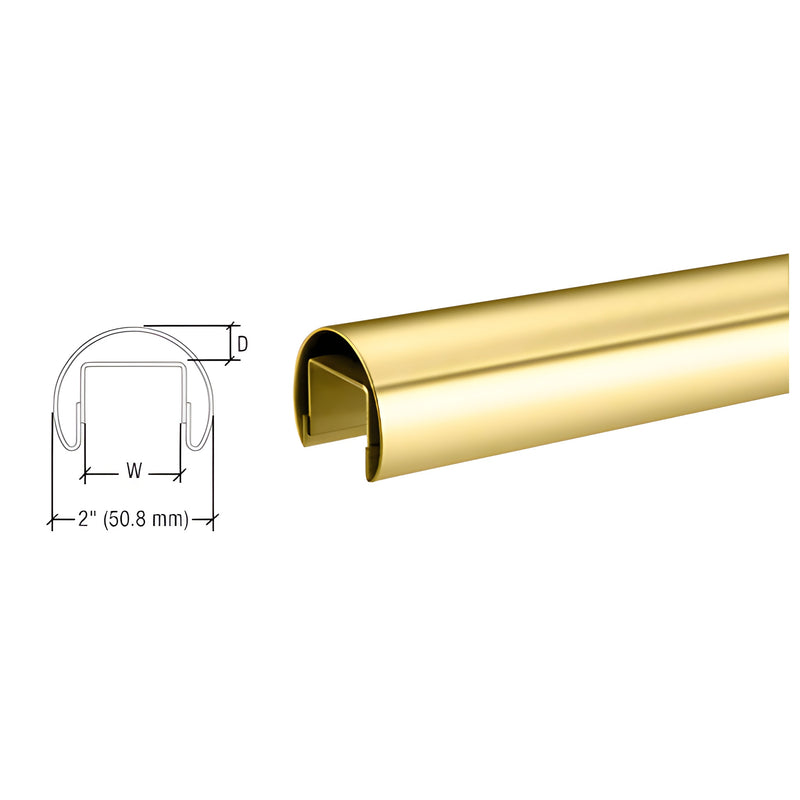

CRL Polished Brass 50.8mm Glass Cap Rail for 21.5/25.5mm Glass - 3m
Item# LR20PB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Polished Brass
Glazing Thickness
27/32 in. & 1-1/16 in. (21 mm & 27 mm)
Length
118-1/8 in. (3000 mm)
Material
Brass
- LR20PB — Bump-formed and welded 118-1/8" (3 m) stock lengths available in two diameters and four architectural finishes
- Connect to fabricated corners and end caps; use with sleeve L20CSB connector sleeves
- Cut-to-size or custom fabricated lengths available
- Standard stainless alloy 316 available on special order for corrosion resistance
All CRL Premium Cap Rails for laminated glass are precision-formed to maintain uniform profiles and smooth hairline transitions at splices, corners, and end caps. These architectural finish cap rails accommodate 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass using CRL rubber protective inserts. Sold in 3 meter (118-1/8") lengths — ideal for stainless steel cap rail installations and commercial glass railing projects.
Use the Connector Sleeves (sleeve L20CSB) to join cap rails. Standard material is stainless alloy 304; stainless alloy 316 is available on special order for enhanced corrosion resistance.
Please contact CRL Technical Sales for detailed quotes, lead times, or stainless alloy 316 pricing.
NOTE: For 21.52 mm laminated glass, we recommend the LR21PV Series Rubber Insert. For 25.52 mm laminated glass, use the LR22PV Series Rubber Insert with shim and silicone.
Dimensions are used to calculate glass size—add your desired clearance or an additional 1/8" (3.2 mm) when using a Cap Rail rubber insert.
Most shipping weights are approximate and have not been verified. If exact shipping weight is required to determine costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Brass Finish Advisory:
Brass, while durable, is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Order LR20PB premium stainless cap rails for laminated glass today — contact CRL Technical Sales for a quote.
