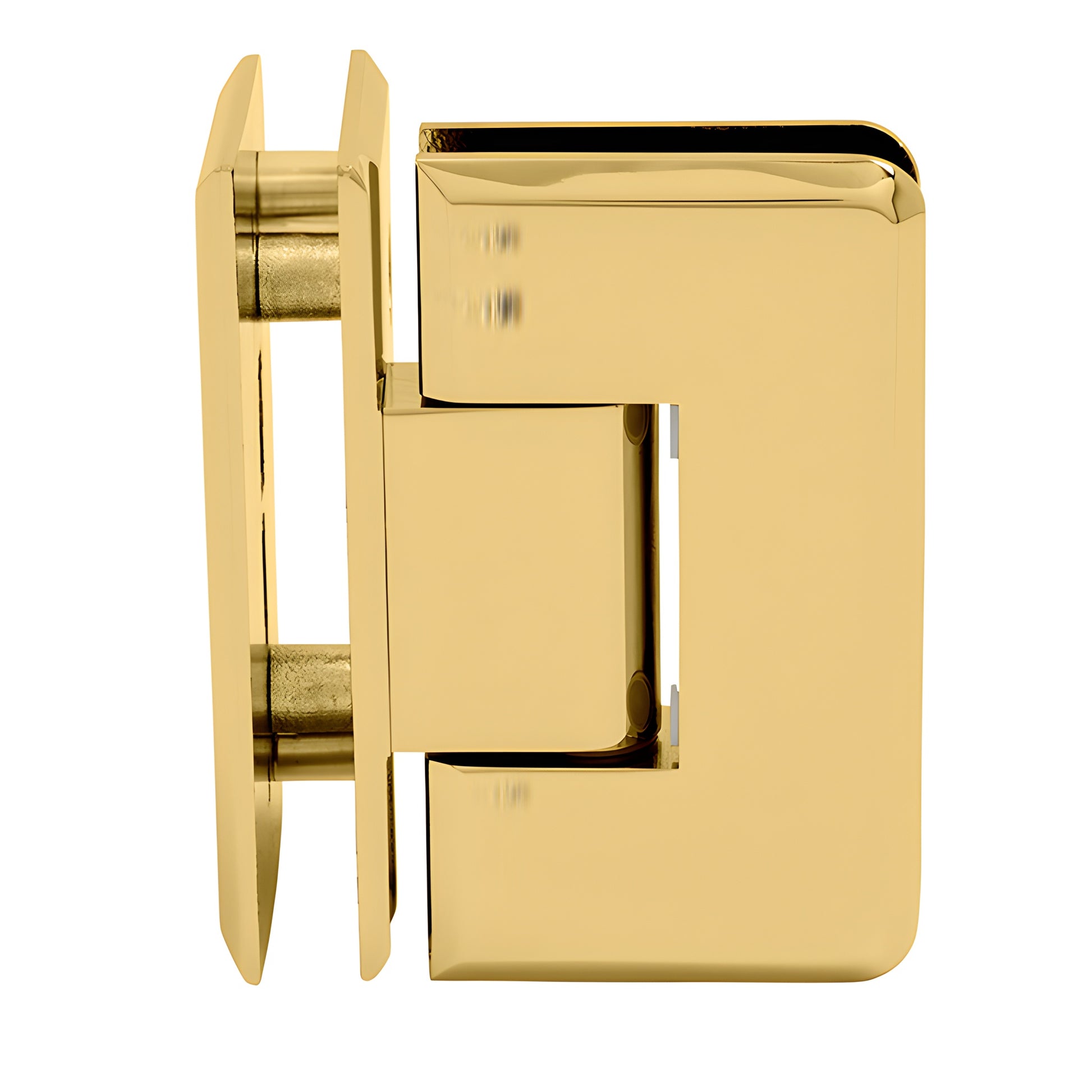

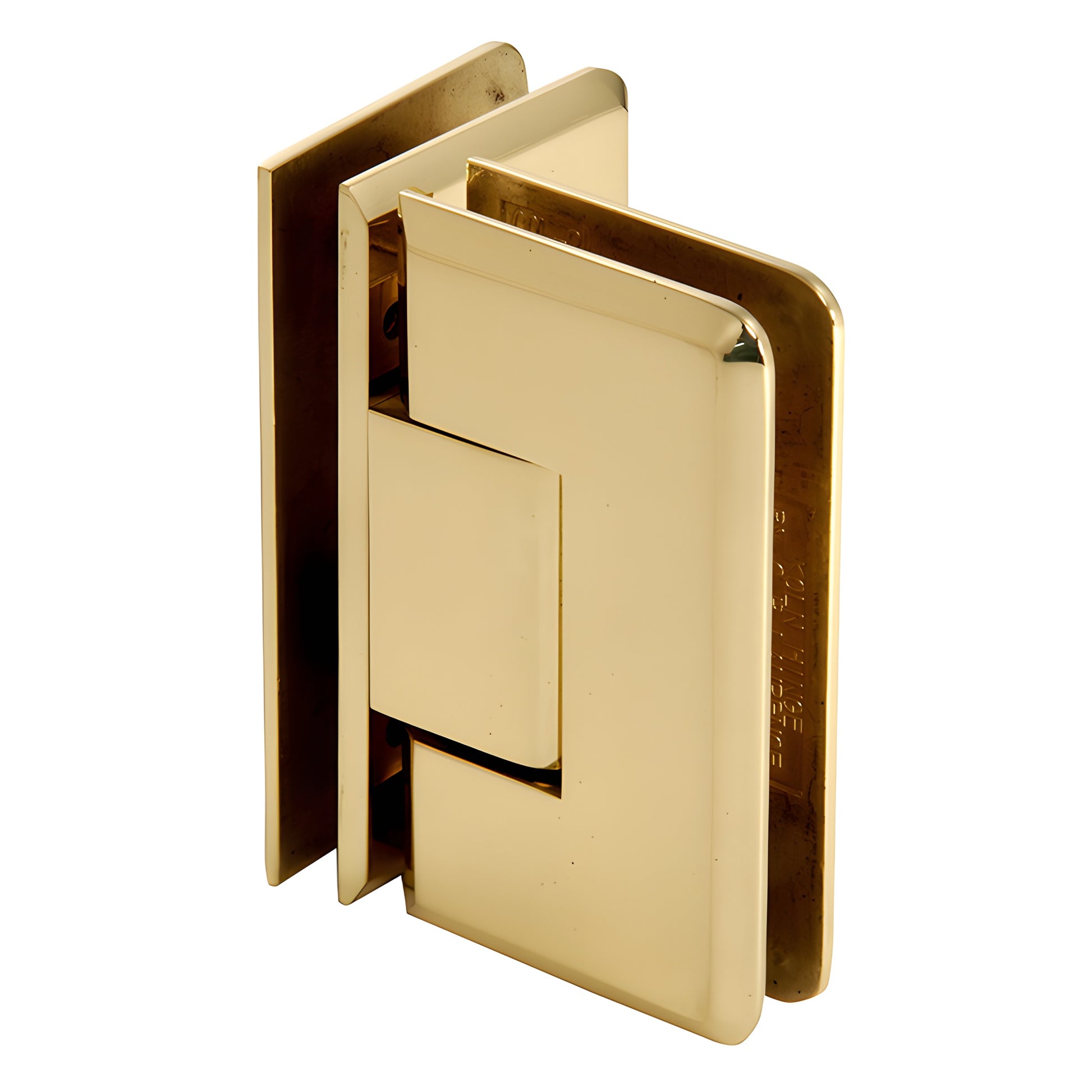

CRL Cologne 092 90° Polished Brass Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 90º Glass-to-Glass
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU: C0L092BR) are a heavy-duty brass shower door hinge designed for tempered glass shower doors. Similar to Vienna hinges but with radius corners and beveled edges, they deliver a sleek look while supporting wider, heavier shower doors that standard hinges cannot. Two internal steel pins provide mounting flexibility: leave both pins in for compatibility with CRL "mouse-ears" cut-outs for added safety, or remove them for increased adjustability and fitment with rectangular, square-corner cut-outs (including some competitive patterns).

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; rotate the pin to engage the 85º pre-set for a 5º tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle, up to 45º) when the standard adjustment does not achieve the desired closing position.

Load Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass, each door can support up to 110 lbs (50 kg) with a maximum width of 36" (914 mm). Using three hinges increases capacity to 140 lbs (63 kg) for the same maximum width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (brass shower door hinge for durability and finish options)
Hinge Swings: 90º In and 90º Out (glass shower door hinge functionality)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092, which requires a cut-out for the door and two holes for the fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales for specialty finish options.
