- Top Loading Gasket
- Fits 3/8" and 1/2" Glass
- Available in Several Beautiful Finishes
This
CRL U-Channel with Roll-In Top Load Gasket
was designed to be used with 3/8" or 1/2" (10 or 12 mm) glass in conjunction with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and even our Door Rail System. The design allows it to be surface or recess mounted, with the Top Load Gasketing securing the glass. This multi-functional extrusion comes in five different finishes, and has a family of accessories that facilitate different installations.

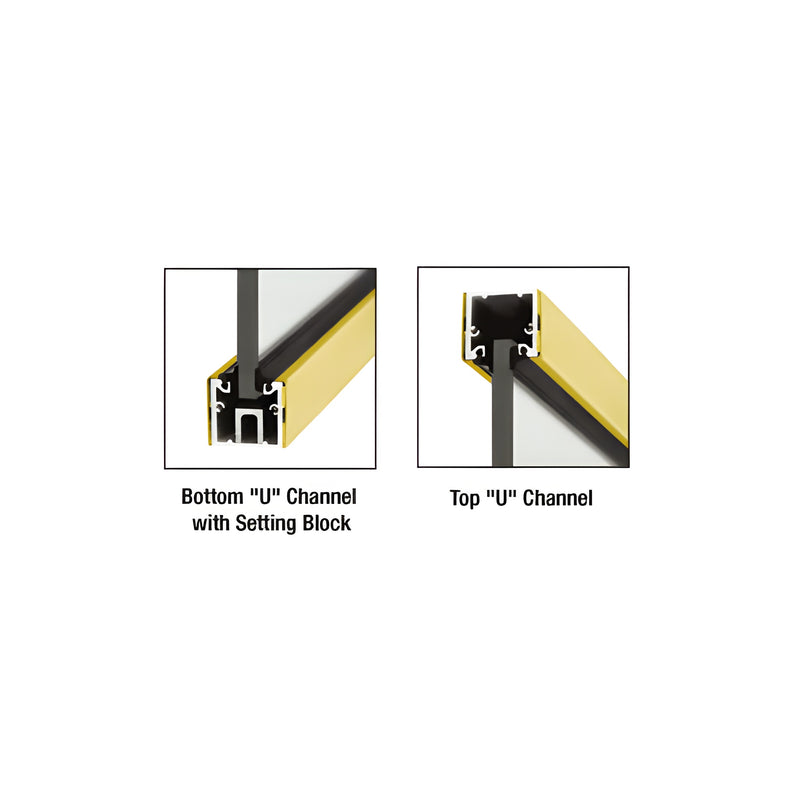

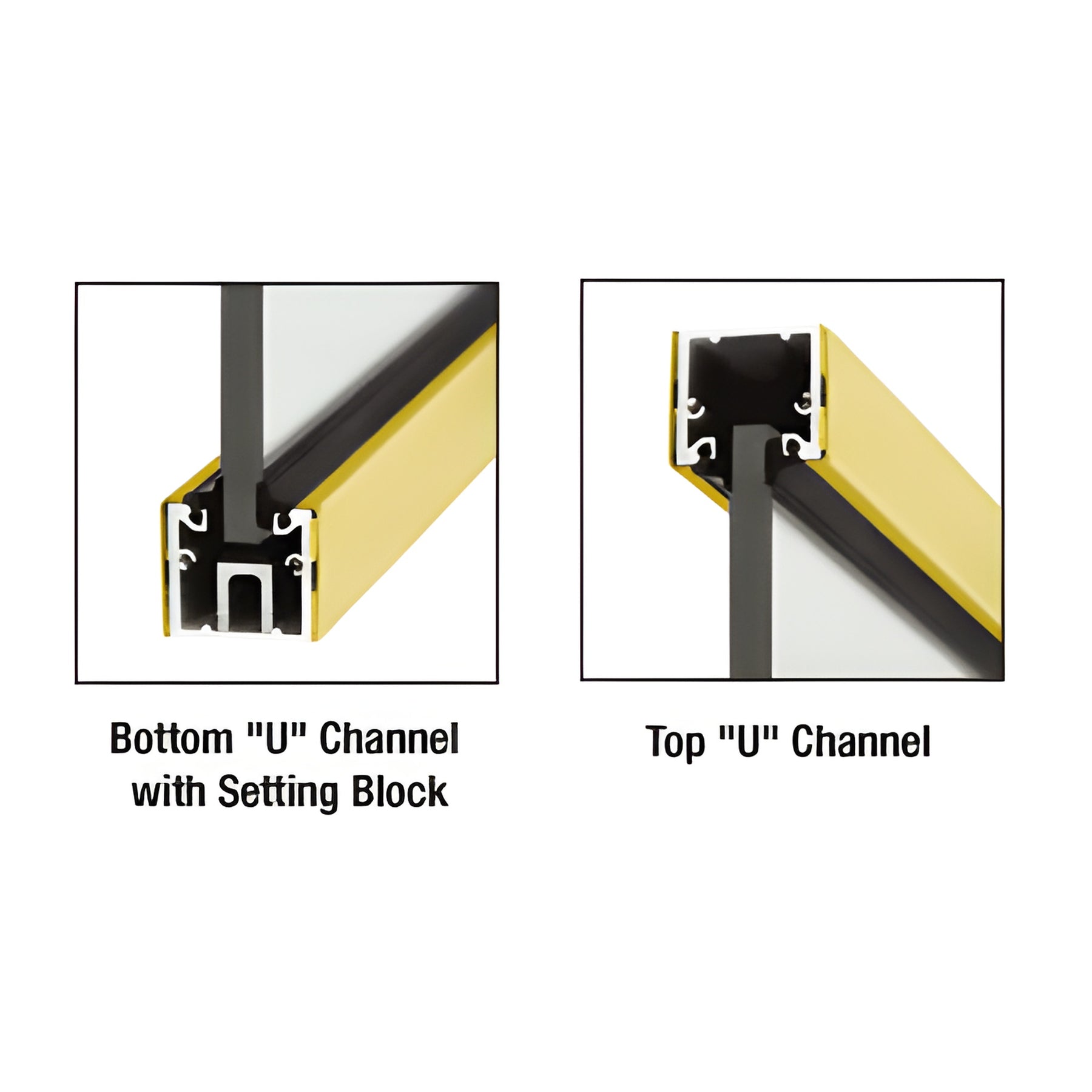

The 4" (102 mm) long
Aluminum Setting Blocks with Neoprene
on the top provide a rigid glass support in the Bottom Channel. They are the proper height to provide 9/16" (14.3 mm) glass coverage in both the Top and Bottom Channels when glazed with the "lift and drop" method.
Roll-In Top Load Gasketing
for 3/8" or 1/2" (10 or 12 mm) glass is sold separately in 100' or 500' rolls. End Caps in matching finishes are also available.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
