Product Details
- Ideal for Use on Jobs Where Cutting Into the Floor for a Floor Closer in Not an Option
- Available for 1/2" (12 mm) Glass-to-Glass or Glass-to-Wall Installations With or Without Overhead Concealed Door Closers
- Stock 36" (914 mm) Single and 72" (1.83 m) Double Headers, With Custom Sizes Available
- Six Standard Finishes Available: Satin Anodized, Black Bronze Anodized, Black Powder Coat, Polished Stainless, Brushed Stainless, and Polished Brass
- Custom Finishes Available on Special Order

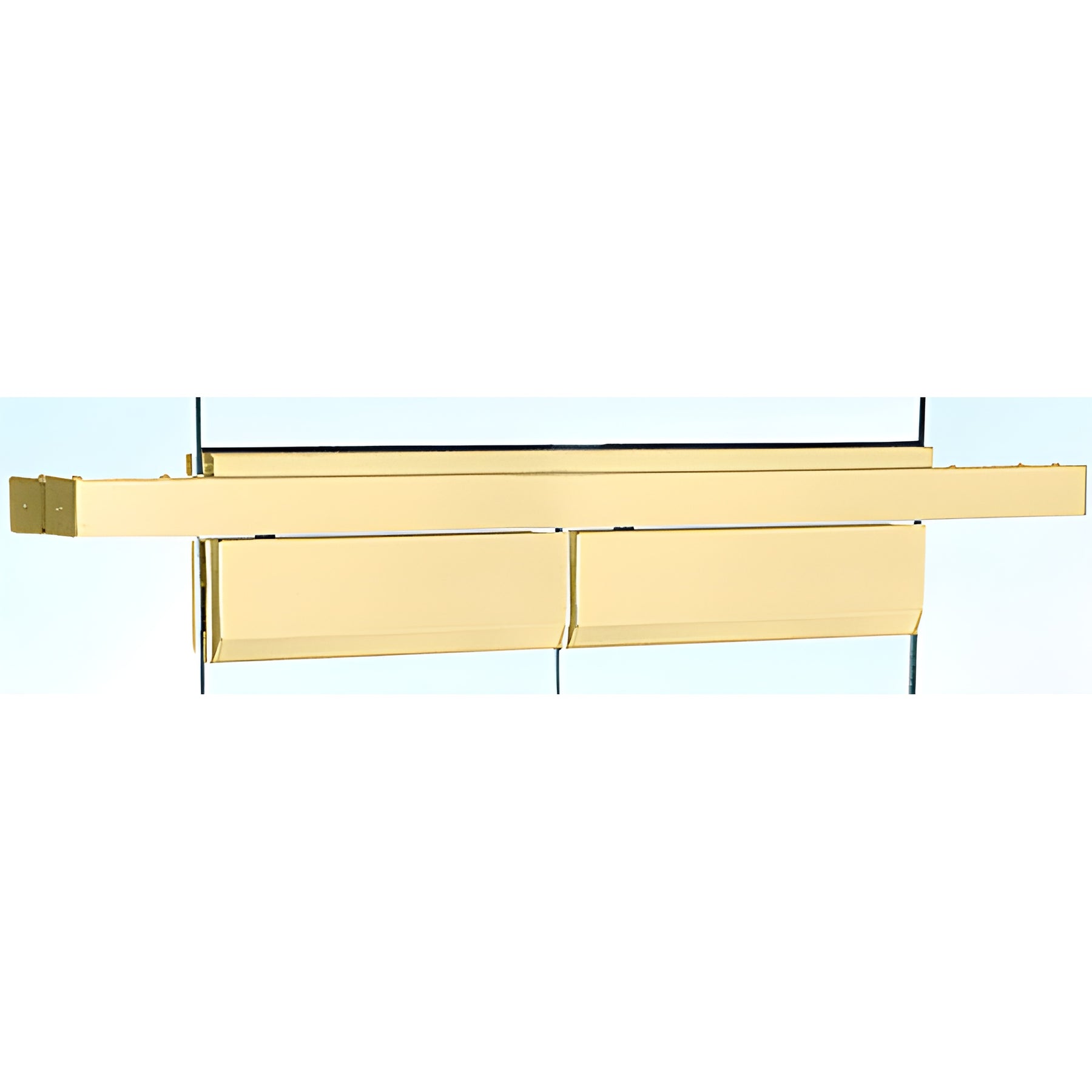

This CRL Floating Header System is available in custom lengths for both single and double door installations. The system is ideal for glass-to-glass or glass-to-wall doorways in all glass wall applications, and can be used with or without an Overhead Concealed Door Closer. Available in several stock architectural finishes. For information in regards to a special finish please contact CRL Technical Sales.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
