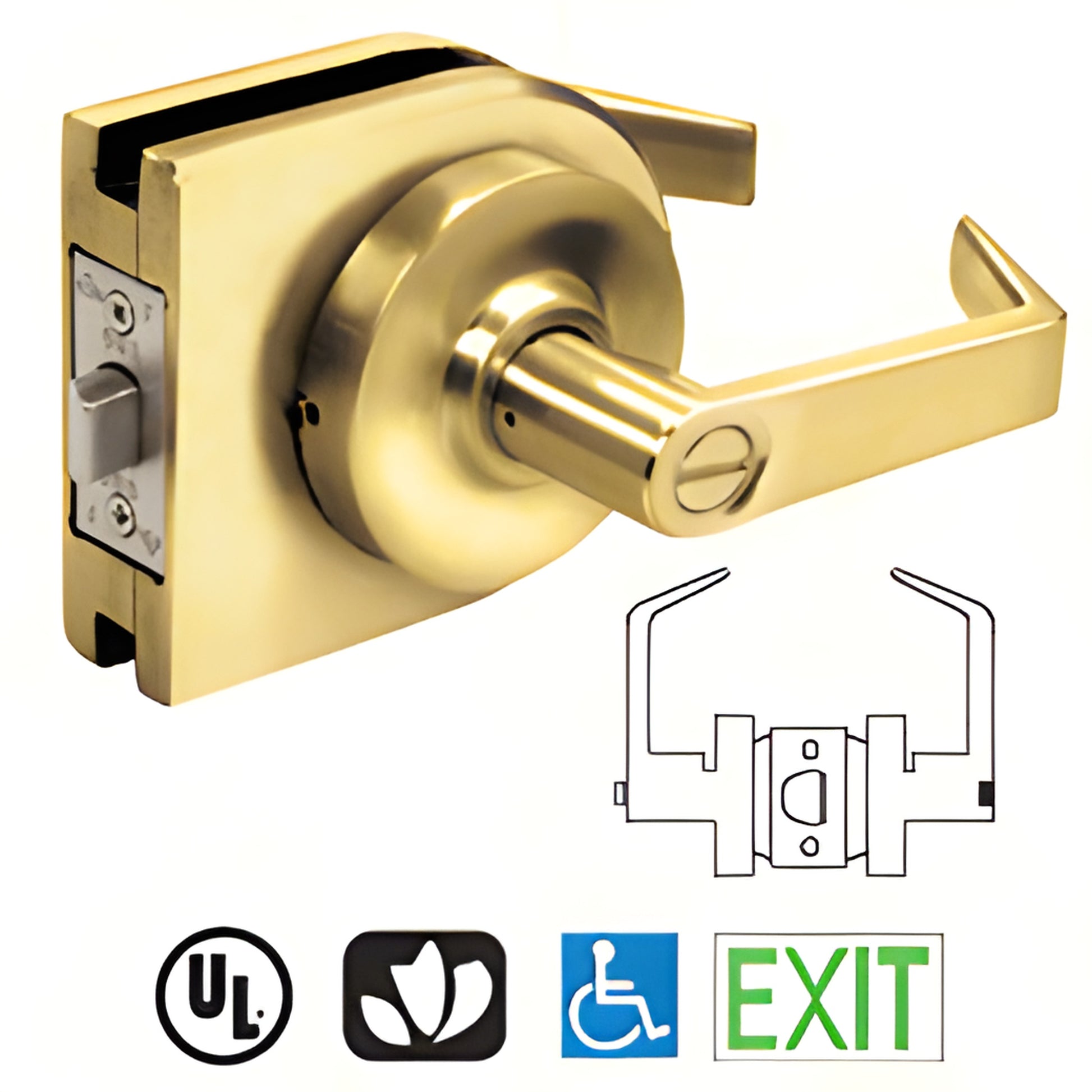

CRL Polished Brass Grade 2 Privacy Door Lever Lock Housing
CRL Polished Brass Grade 2 Privacy Door Lever Lock Housing
Regular price
$332.75 CAD
Regular price
Sale price
$332.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH45PB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
6 in. (152 mm)
Overview
- Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left or right glass doors
- Five architectural finishes available
- Four function options (Entrance, Storeroom, etc.)
CRL's Lever Lock Housings (SKU: LH45PB) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are available with a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included.
- Certifications: ANSI A156.2 Grade 2; UL10C and UBC 7.2 for positive pressure
- Accessibility: Complies with ANSI A117.1 and ADA for barrier-free access
- Code compliance: C-UBC California Amended Uniform Building Code (2001)
- Fire & life safety: NFPA-80 (1999) and NFPA 101 (Life Safety – 2000)
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template are included.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance recommendations.
Low-profile lever lock housing for glass doors with multiple finishes, ANSI-rated security, and ADA/fire code compliance — order LH45PB or contact us for specifications and pricing.
