Product Details
- Ready-to-Install
- Available in Several Architectural Finishes
- For 1-1/2" to 2" (38 to 50.8 mm) Diameter Hand Rail Tubing
This CRL Newport Series Glass Mounted Hand Rail Bracket is available in several architectural finishes for 1-1/2" to 2" (38 to 50.8 mm) diameter hand railing tubing. In and out measurement of bar, angle of bar and railing bracket all adjust. Brackets are individually packed and come with attachment screws and an outside disc for glass mounting.

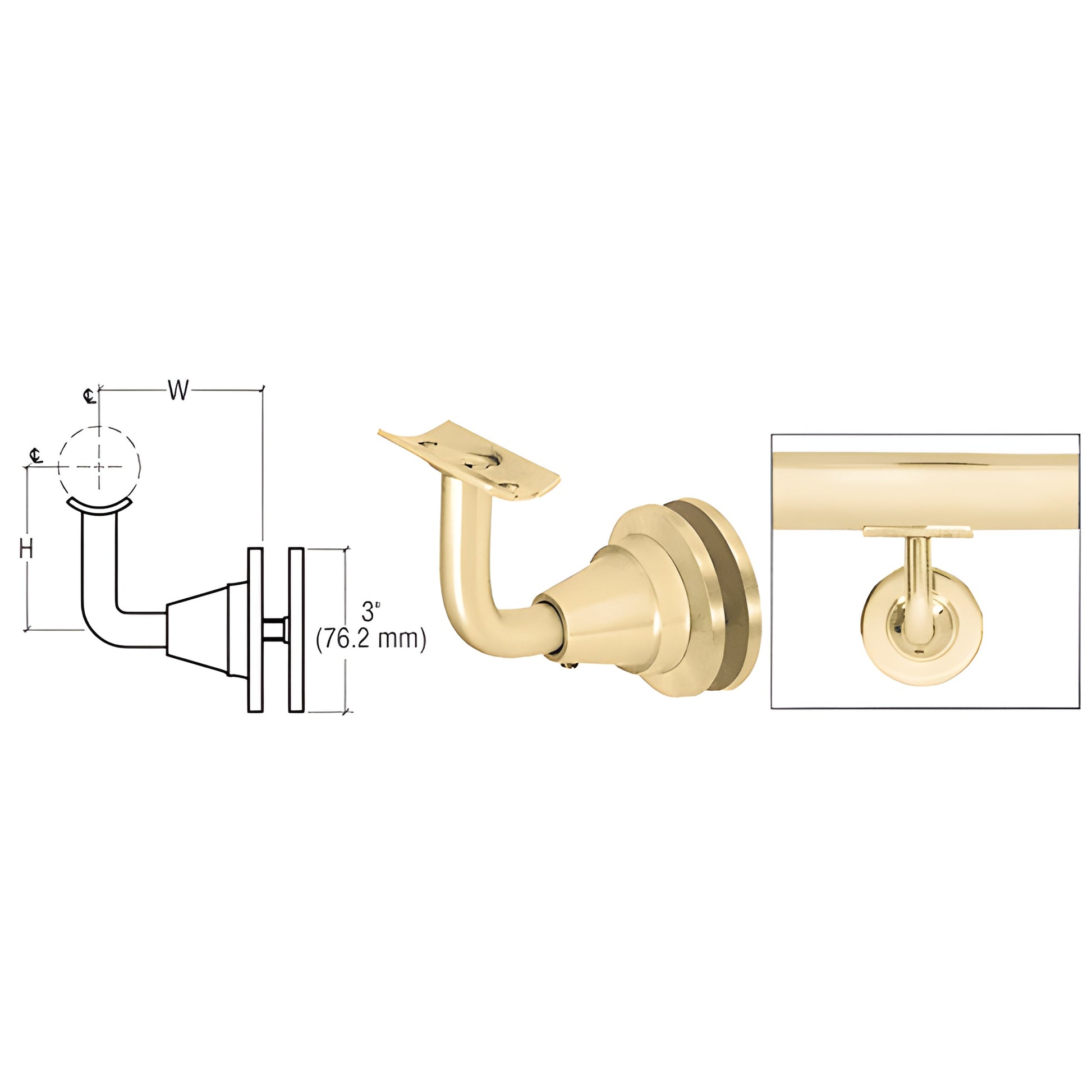

NOTE: Center line using 1-1/2" and 1.66" railing is 3" (76.2 mm). Center line using 1.9" and 2" railing is 3-1/4" (82.5 mm).
Product Warning:
Requires 3/4" (19 mm) hole in glass.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
