CRL Pinnacle 537 Polished Brass 5° Pre-Set Wall-Mount Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several durable finishes
• Three-year warranty
• 5 Degree Pre-Set Model (factory set for 5° tighter closure into shower interior)
• Use with monolithic tempered glass

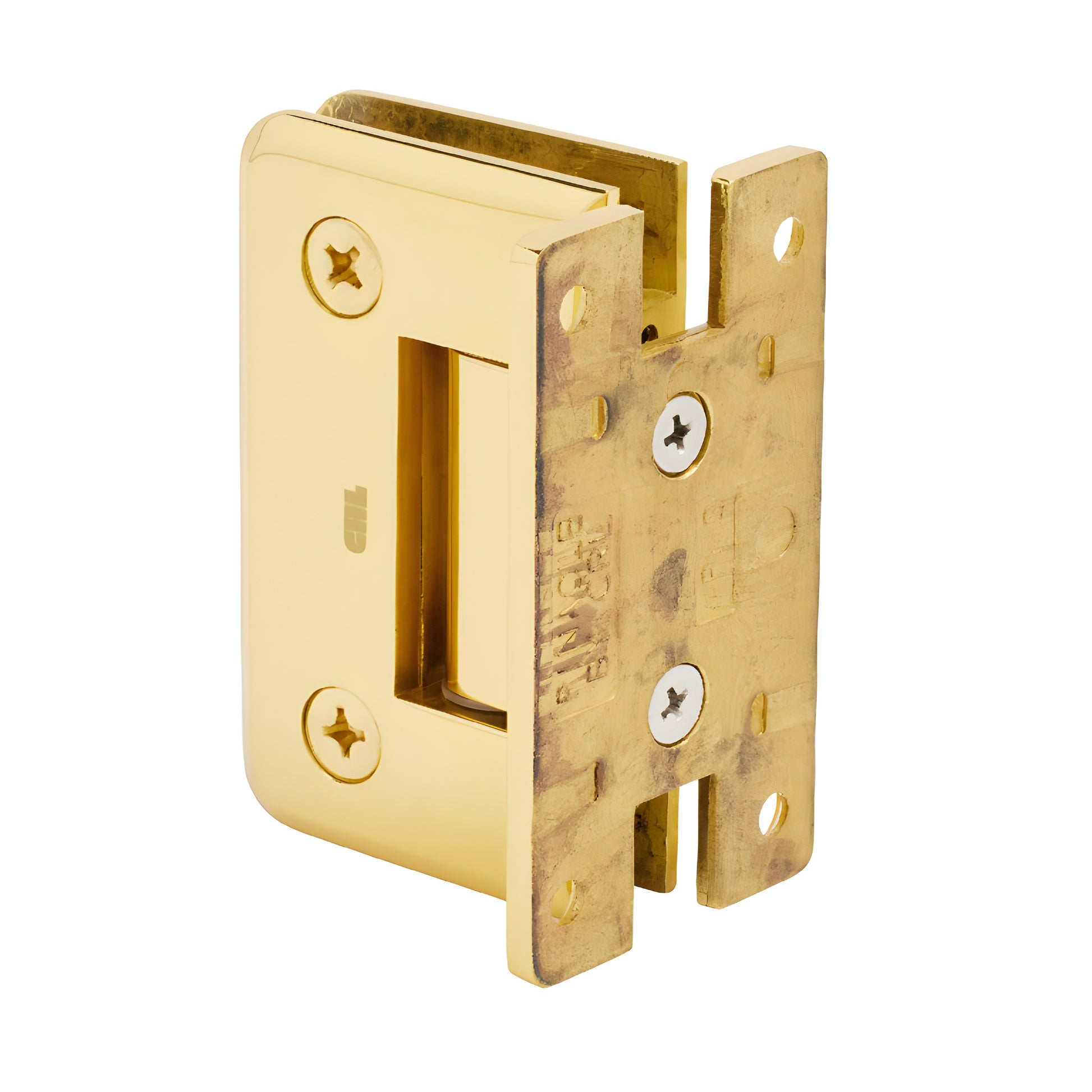

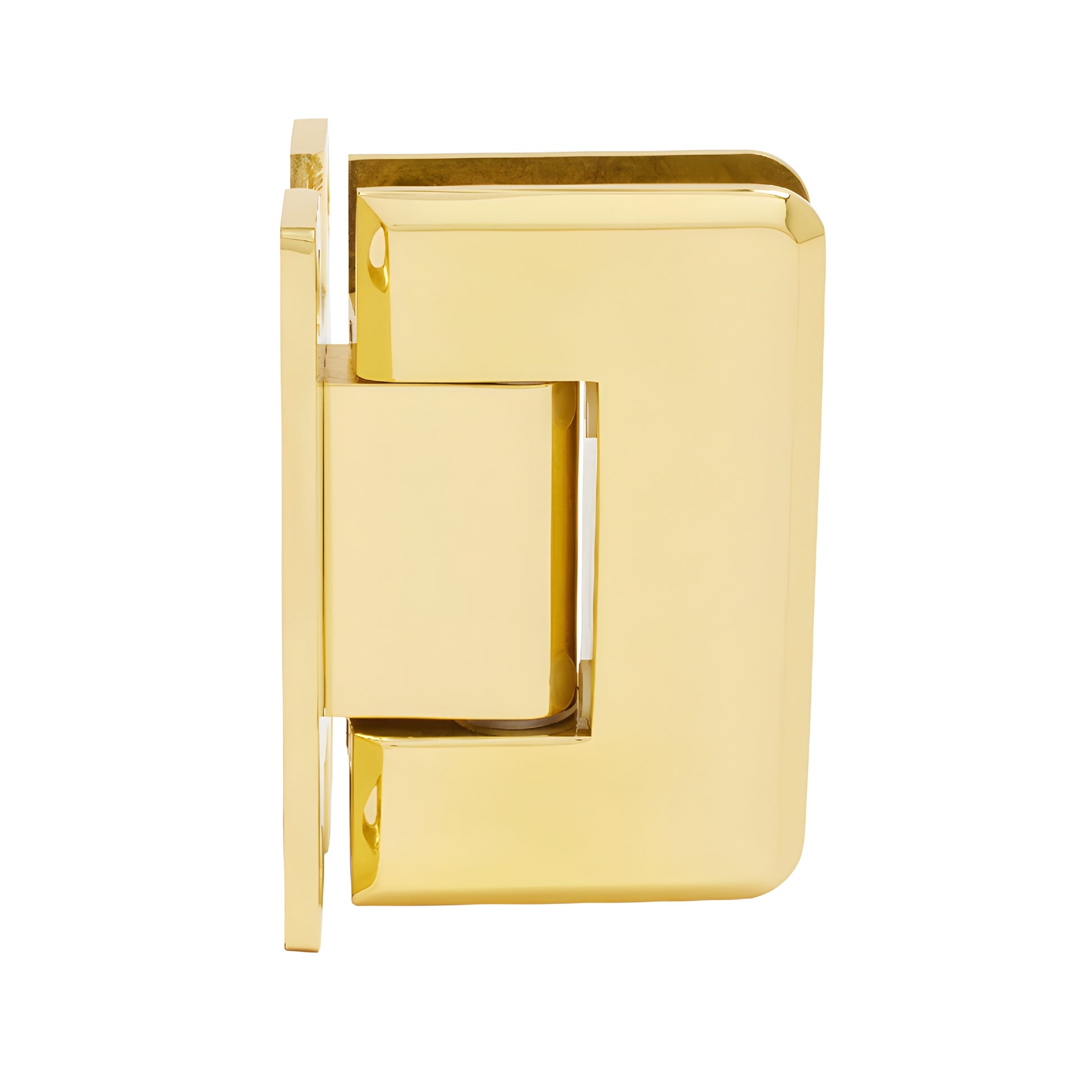

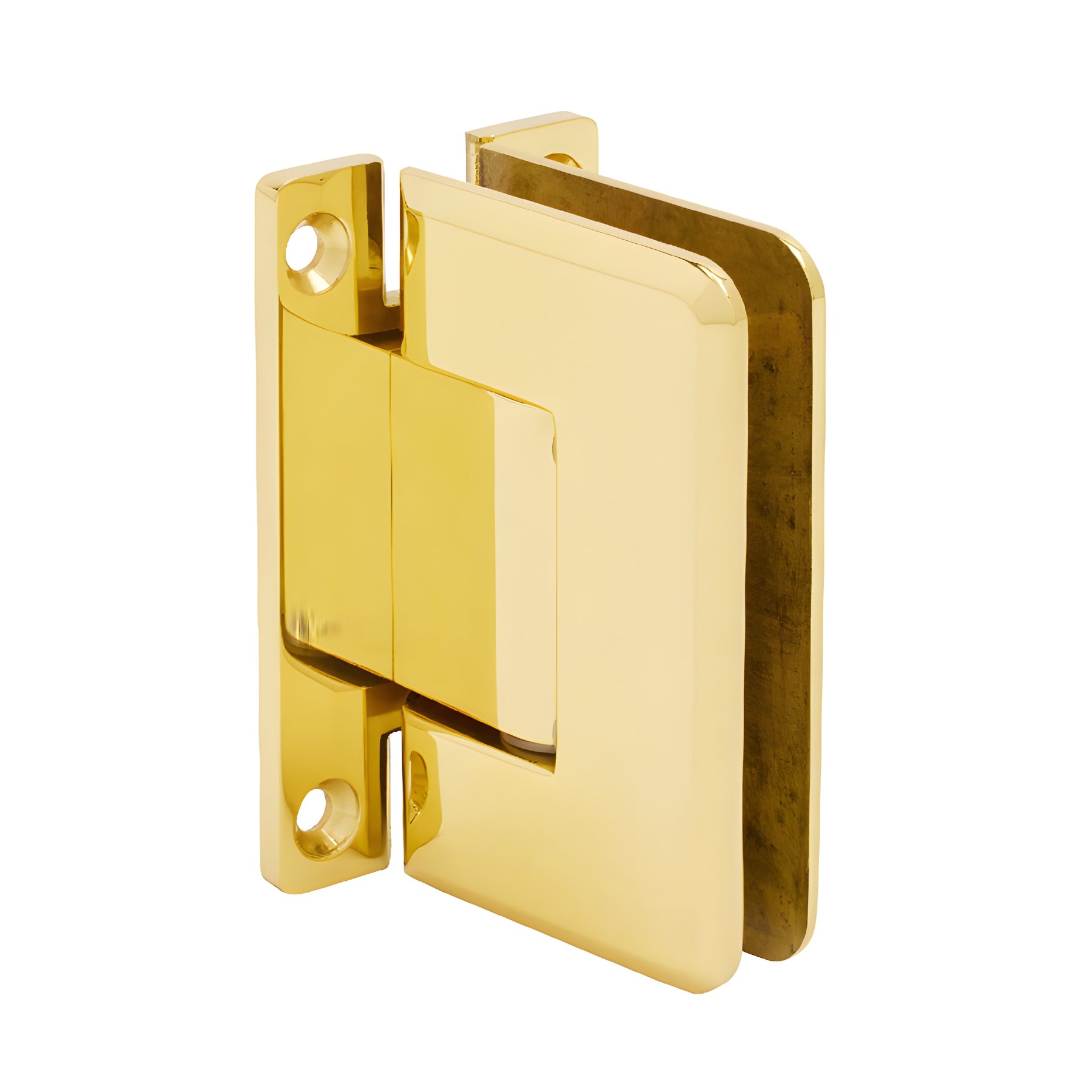

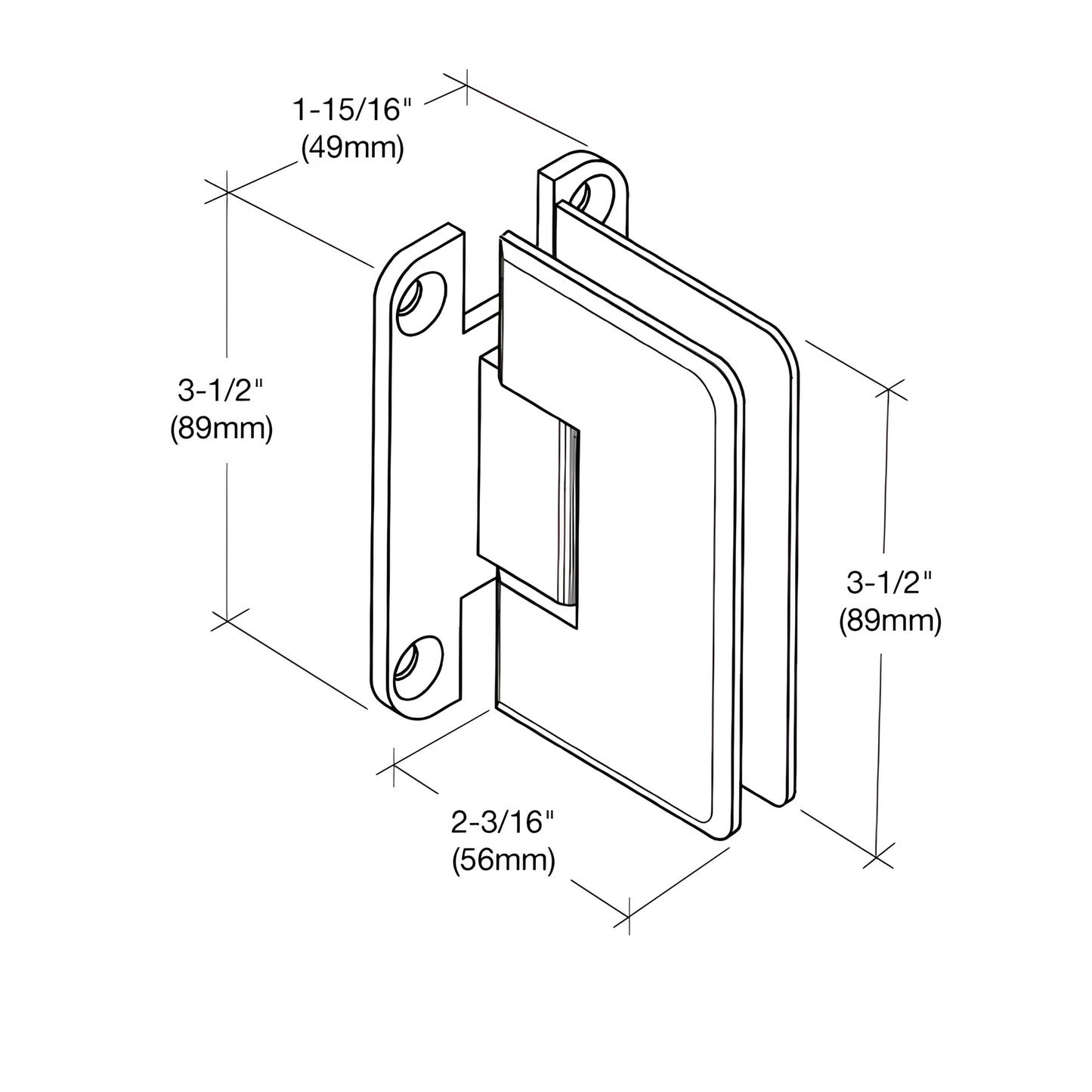

CRL Pinnacle Hinge (SKU: P1N537BR) — a radius-corner, beveled-edge alternative to the Geneva Series designed for a sleek, modern shower door appearance. Ideal as a brass shower door hinge for tempered glass, the Pinnacle accommodates 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and is self-centering within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Includes the reversible 5° pivot pin found on Geneva, Cathedral, Roman, Ultimate, and Elite Series hinges. Custom pivot pins are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Pre-Set models come factory-set to 85° (5° tighter closure into the shower interior). The pin can be rotated (not flipped) to activate the other setting.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45° to accommodate non-90° wall-to-door conditions for off-angle installations.

Load Capacity:

• Two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
• Three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount hinges and 180° glass-to-glass hinge available as Standard (0°) or 5° Pre-Set models for tighter shower closure
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

Product Warning:
CRL shower
