CRL Polished Brass Grade 2 Heavy-Duty Privacy Door Lever Lockset
Item# D45PRVPB
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
https://beta.crlaurence.com/All-Products/Door-%26-Window-Hardware/Door-Locks-%26-Hardware/Cylindrical-Lever-Locks-%26-Accessories/CRL-Matte-Black-Privacy-Heavy-Duty-Grade-2-Lever-Lockset/p/D35PRVMBL#:~:text=Aluminum%2C%20Wood%2C%20Hollow%20Metal
Finish/Color
Polished Brass
Fire Rating Hour
3
Function
Privacy
Handing
Non Handed and Reversible

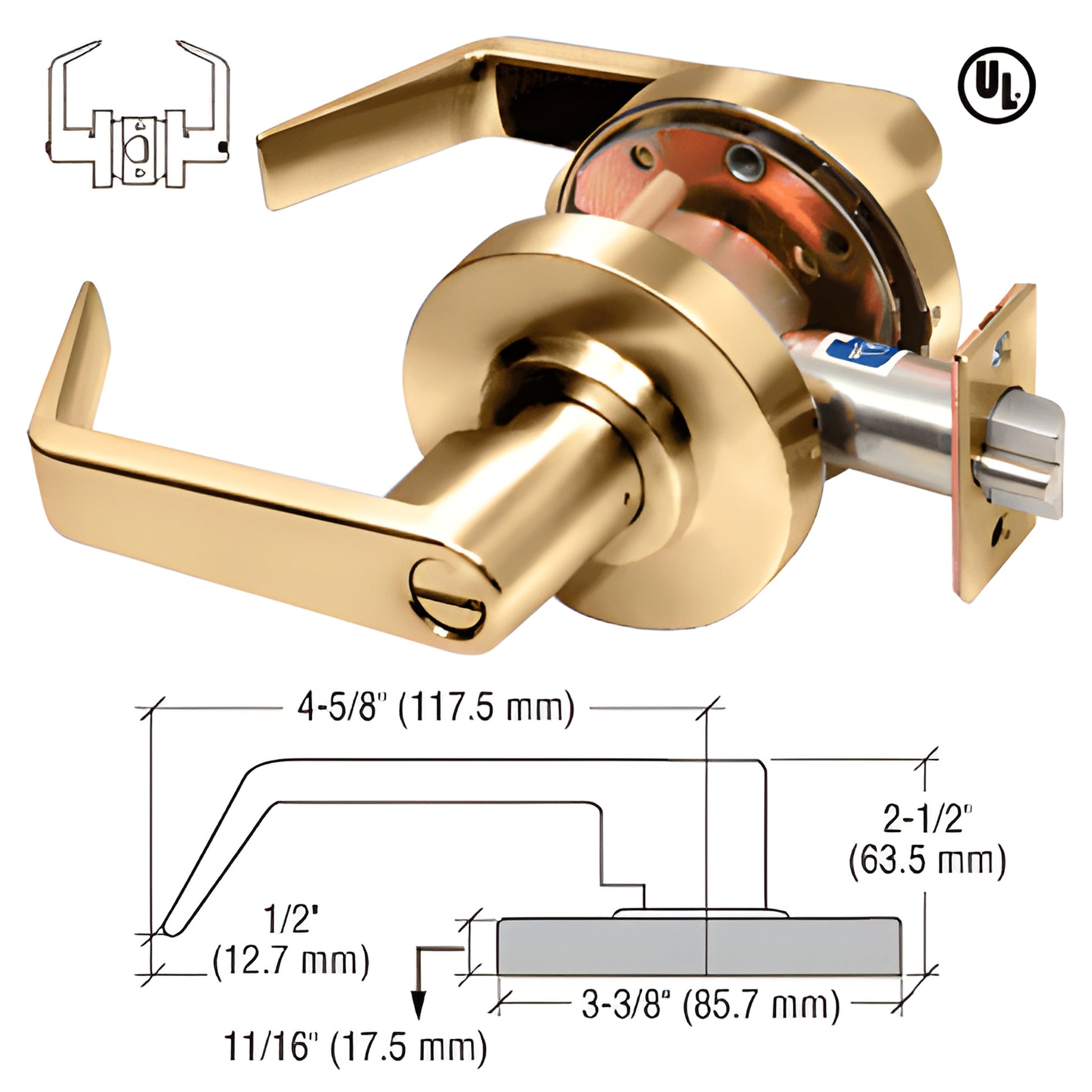

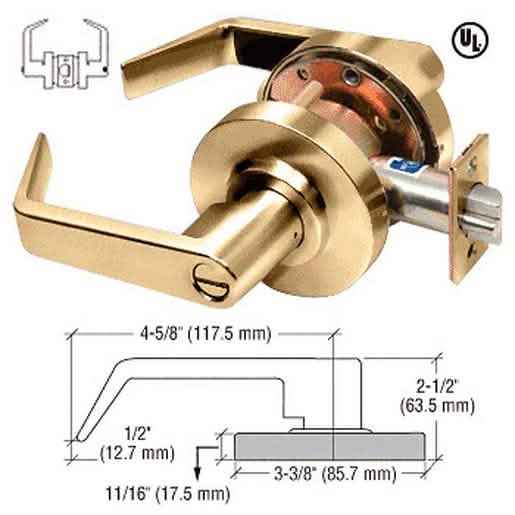

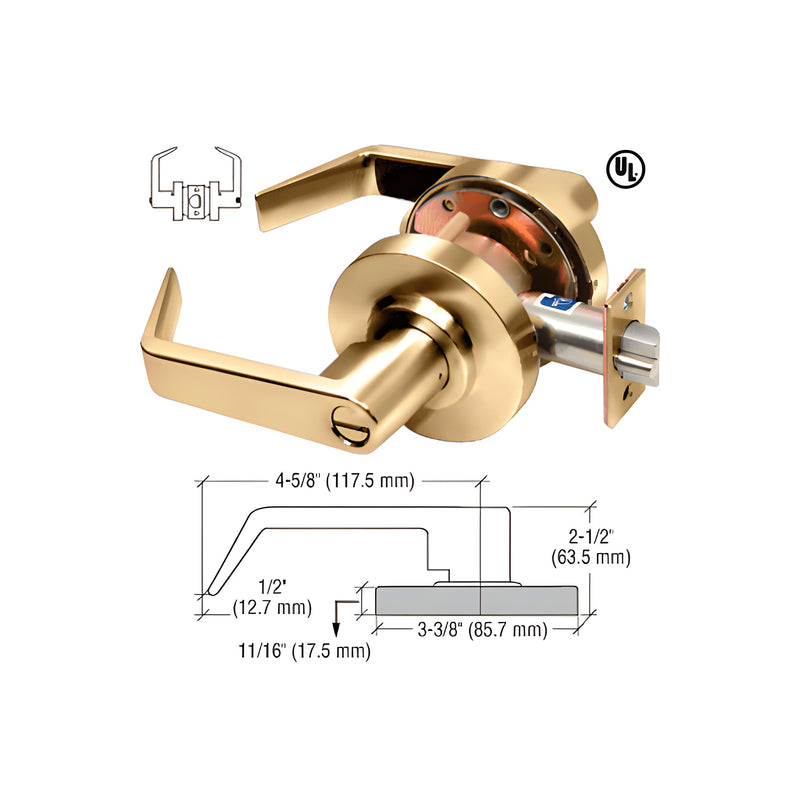

Handle Length
4-5/8
Includes
Strike
Operation Type
F76 Privacy Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
- ANSI A156.2 Grade 2 commercial lever lockset
- UL Listed, 3-hour fire rating
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible for easy installation. UL Listed with a 3-hour fire rating, they fit standard door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included for commercial door applications.
PRIVACY FUNCTION DESCRIPTION: Push-button locking from inside. Emergency access from outside using a narrow flat-head screwdriver or by rotating the inside lever — a common privacy function for commercial and multifamily applications.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before completing your order, contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor and settings.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
SKU: D45PRVPB — heavy-duty commercial lever lockset with UL 3-hour fire rating. Order now to secure reliable, code-compliant door hardware.
Cleaning & Maintenance
