CRL Polished Brass Square 180° Glass-to-Glass Shower Clamp
CRL Polished Brass Square 180° Glass-to-Glass Shower Clamp
Regular price
$50.91 CAD
Regular price
Sale price
$50.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC180BR
Shipping Weight: 1.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Brass
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Glass To Glass
Width
5 in. (127 mm)
Overview
- Joins two glass panels at 180 degrees
- Solid brass construction (durable, premium finish)
- Designed for monolithic tempered glass
- Clamps create an "all-glass" aesthetic versus traditional U-channel
- Glass fabrication required to accommodate clamps

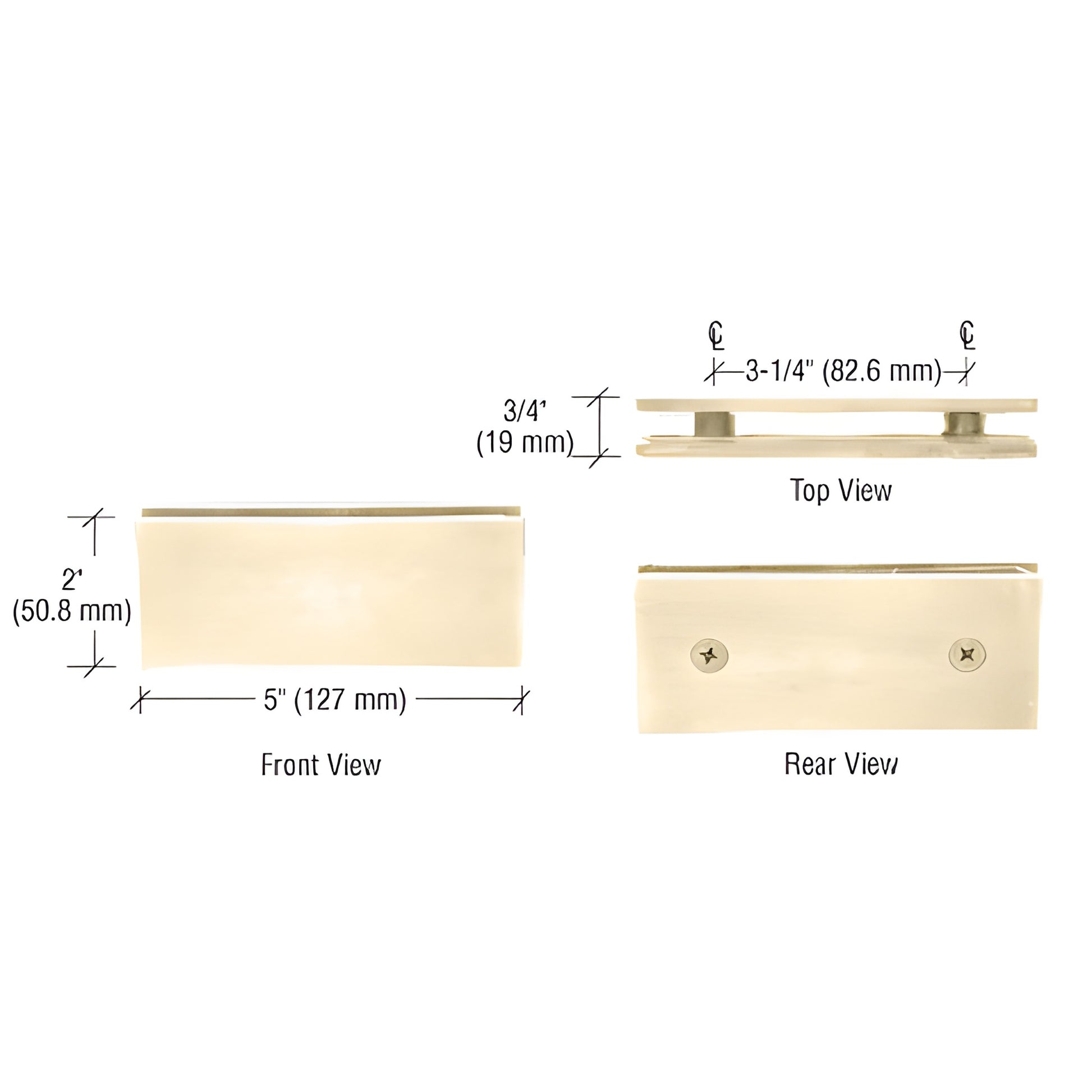

CRL Square 180 Degree Glass-to-Glass Clamp (SKU SGC180BR) are sharp, squared-off clamps for connecting two inline fixed glass panels. Ideal for tempered glass shower enclosures, frameless glass partitions, transoms, showcases and trophy cases, these solid brass clamps offer a premium look that enhances an all-glass design. Available in multiple finishes to match CRL door hinges and related hardware. Drawings and templates for all clamps are available for glass fabrication and installation planning.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished look over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Looking for a durable, low-profile 180-degree clamp for tempered glass shower enclosures or frameless partitions? Order SGC180BR or contact us for drawings and fabrication guidance.
