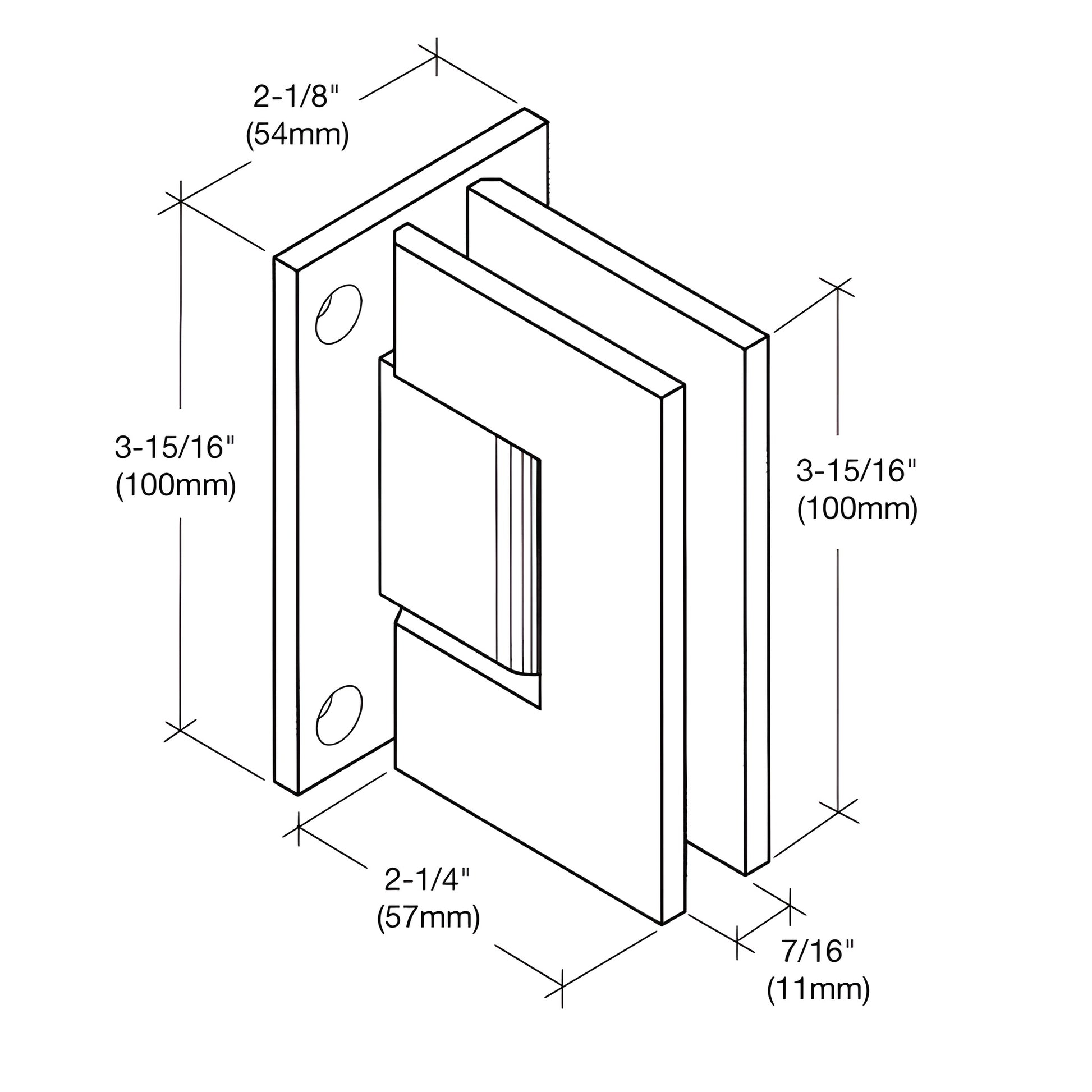

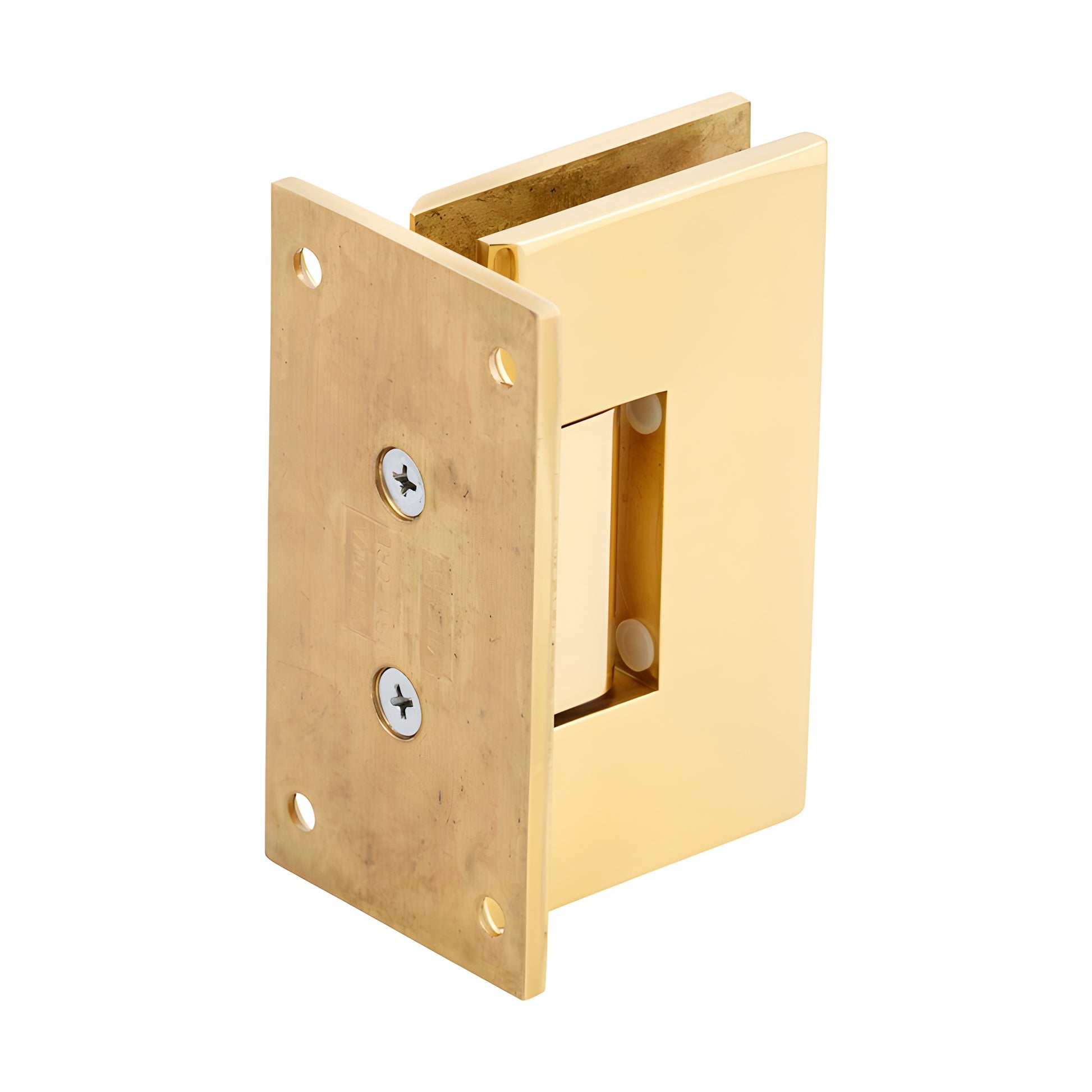

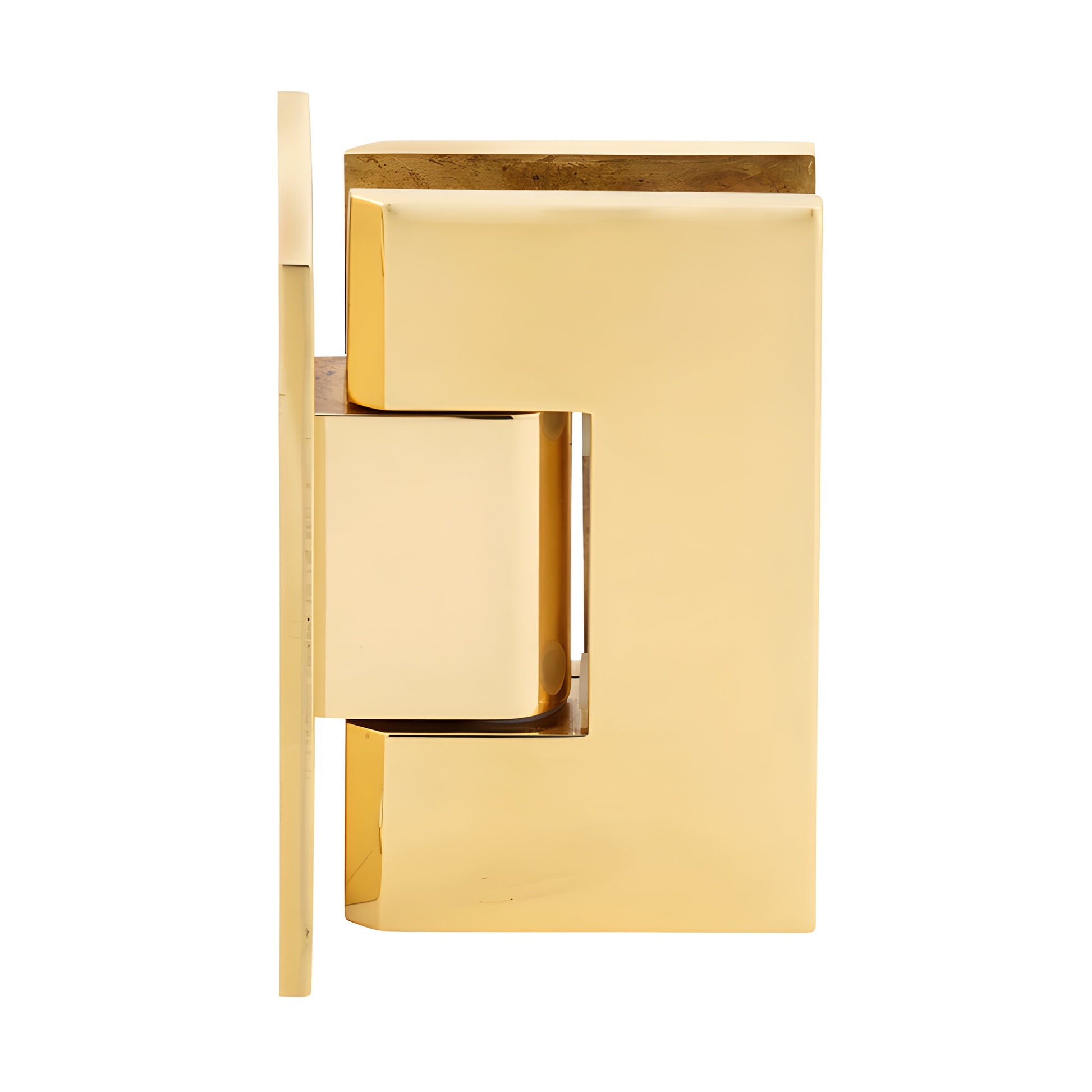

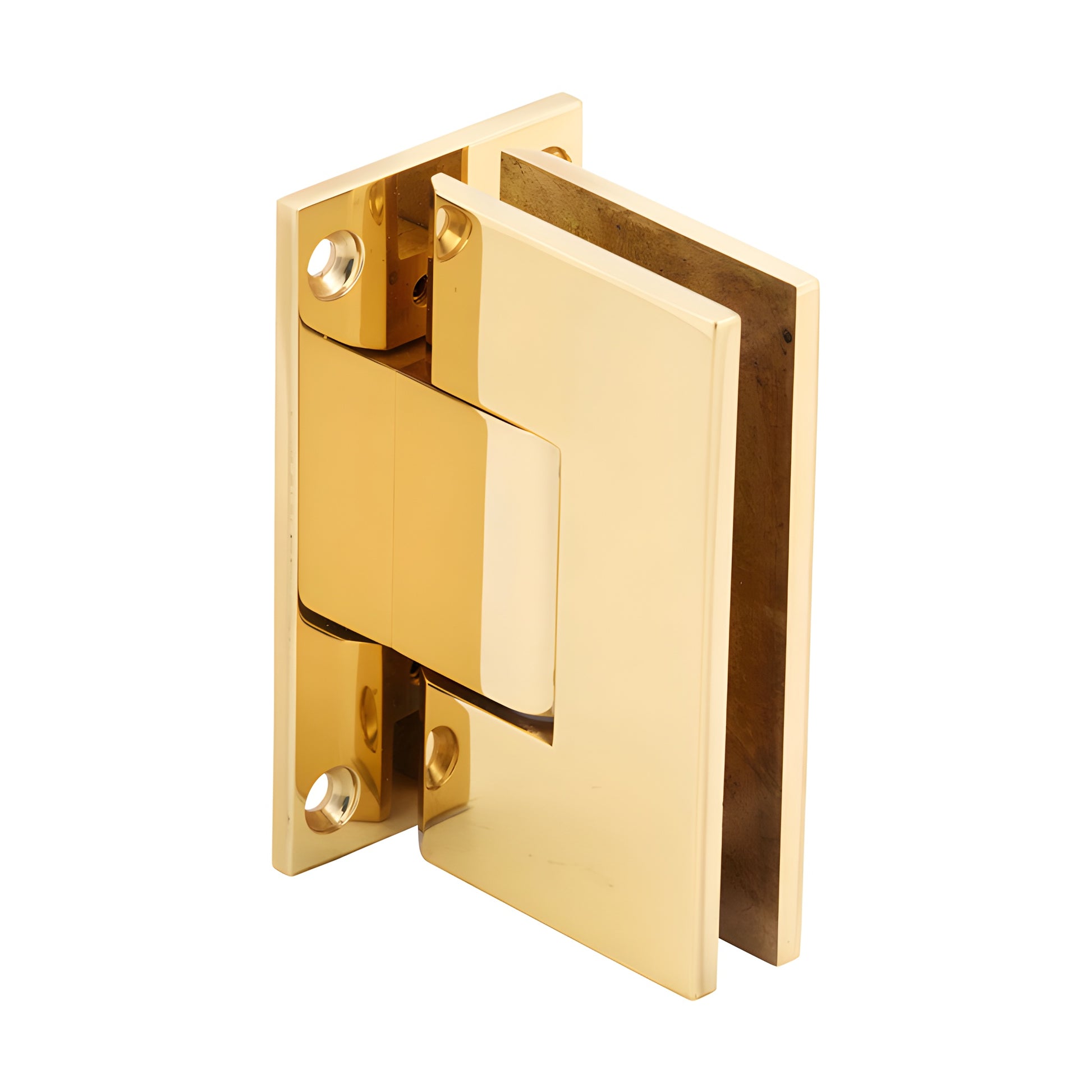

CRL Vienna 037 Polished Brass Wall-Mount Full Back Plate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several durable finishes
• 3-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E037BR) provide a heavy-duty solution for wider or heavier shower doors when standard hinges aren't strong enough. Designed for tempered safety glass, the Vienna Hinge uses two internal steel pins to offer mounting flexibility: leave both pins installed for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and to fit CRL or some competitive rectangular, square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the opposite side (5° tighter closure). Standard models ship with the 90° side active; Pre-Set models ship at 85°. Rotate the pin (do not flip) to change the active closure angle.

CUSTOM PIVOT PINS: Custom pivot pins are available for off-angle installations (specify angles up to 45°) when standard adjustment does not achieve the desired door closing position.

Load Capacity:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable shower door hinge)
Hinge Swings: 90° in / 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See product model details (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)<
