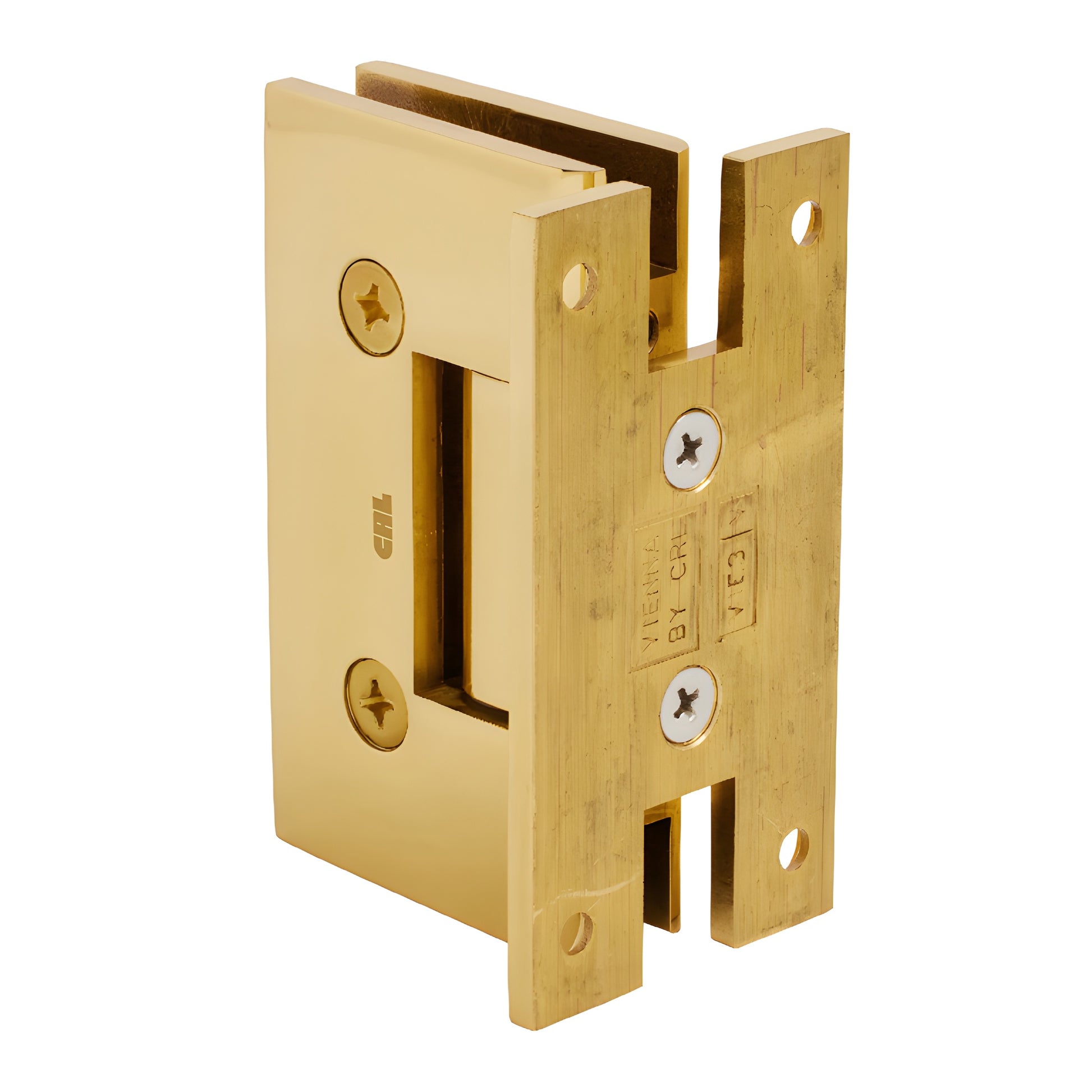

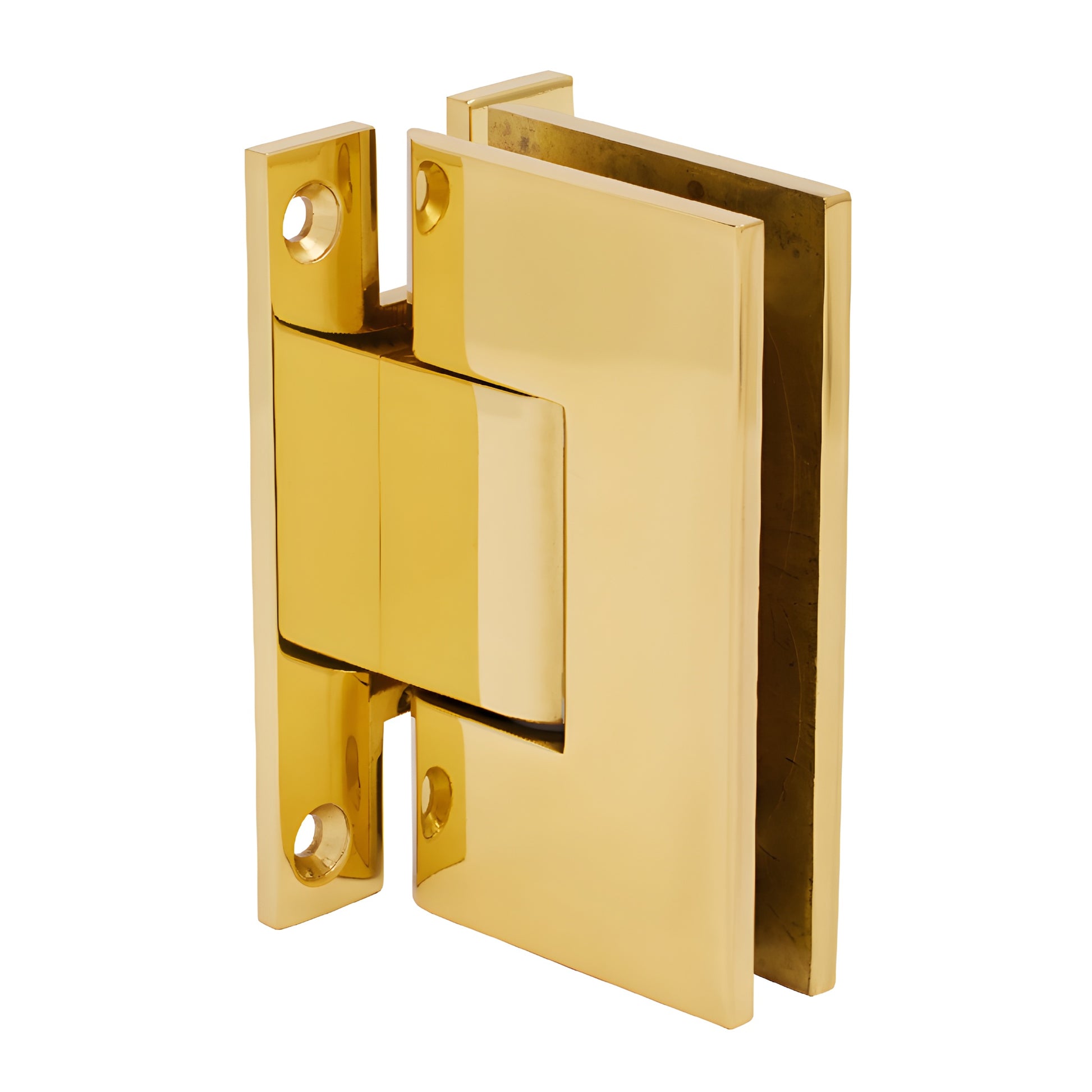

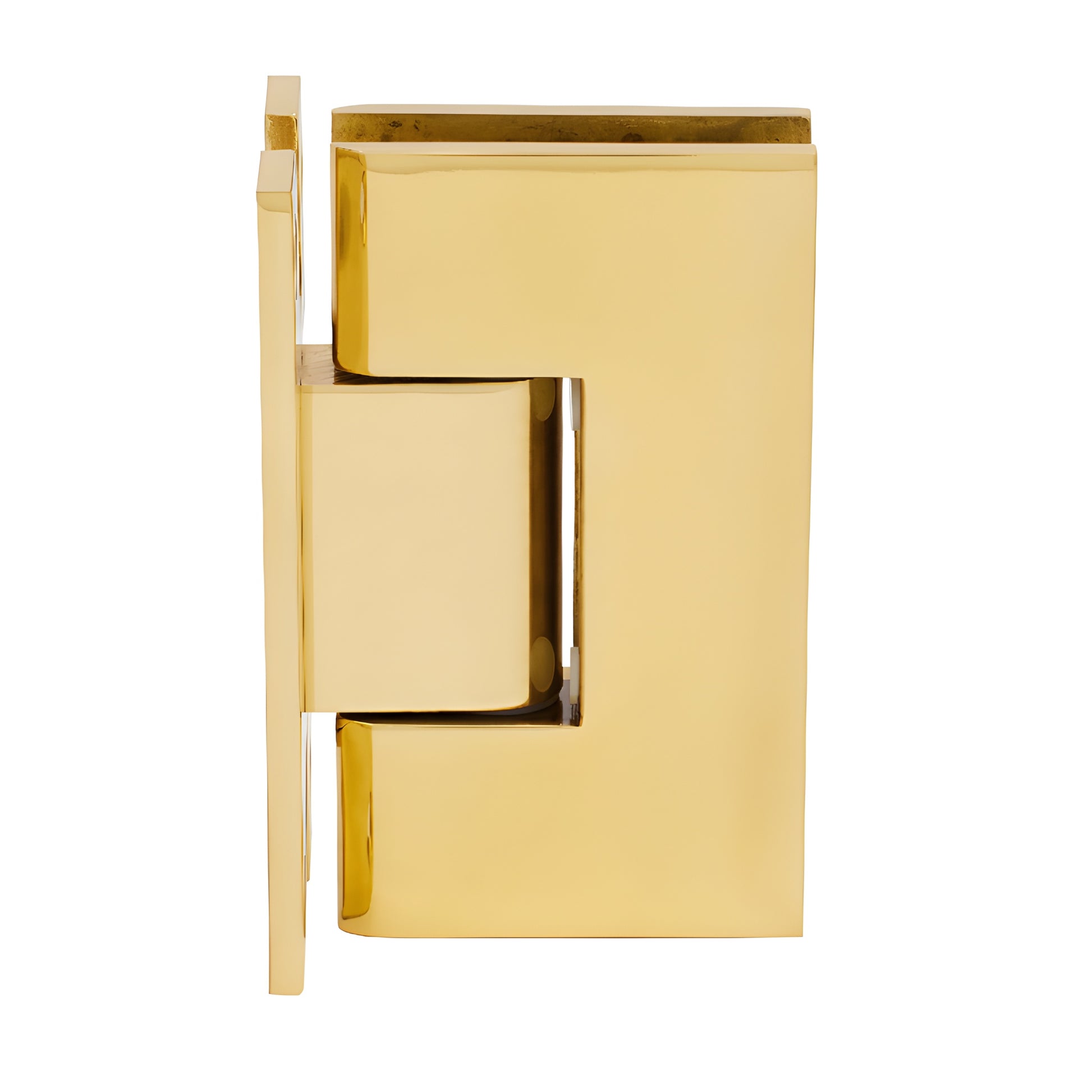

CRL Vienna 037 Polished Brass Wall-Mount H Back Plate Door Hinge
CRL Vienna 037 Polished Brass Wall-Mount H Back Plate Door Hinge
Regular price
$87.19 CAD
Regular price
Sale price
$87.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1EH037BR
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
'H'
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Brass
Glazing Thickness
1/2 in. (12 mm)

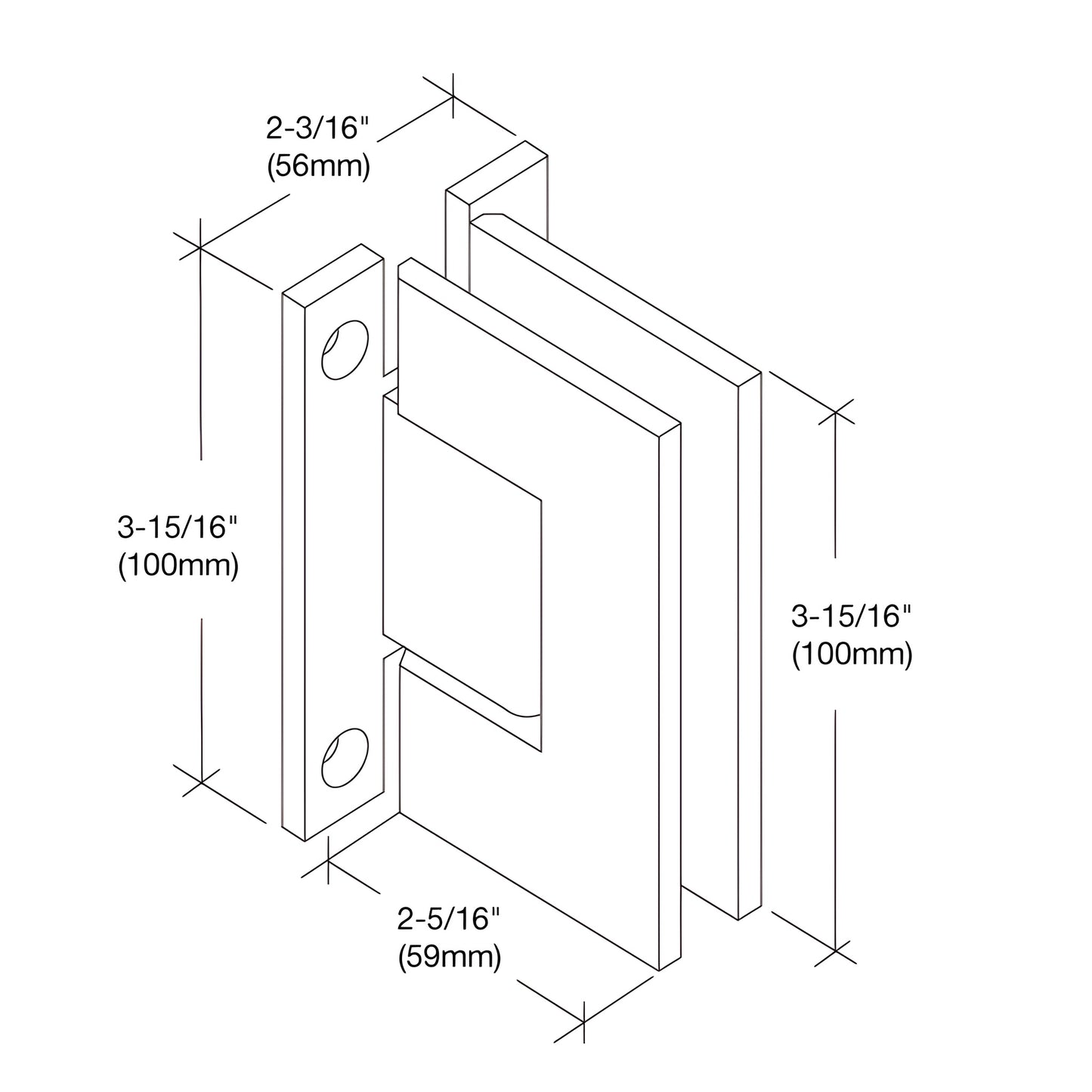

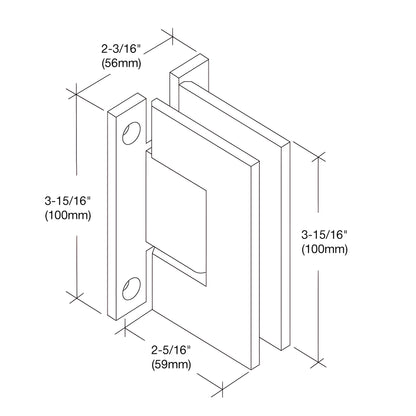

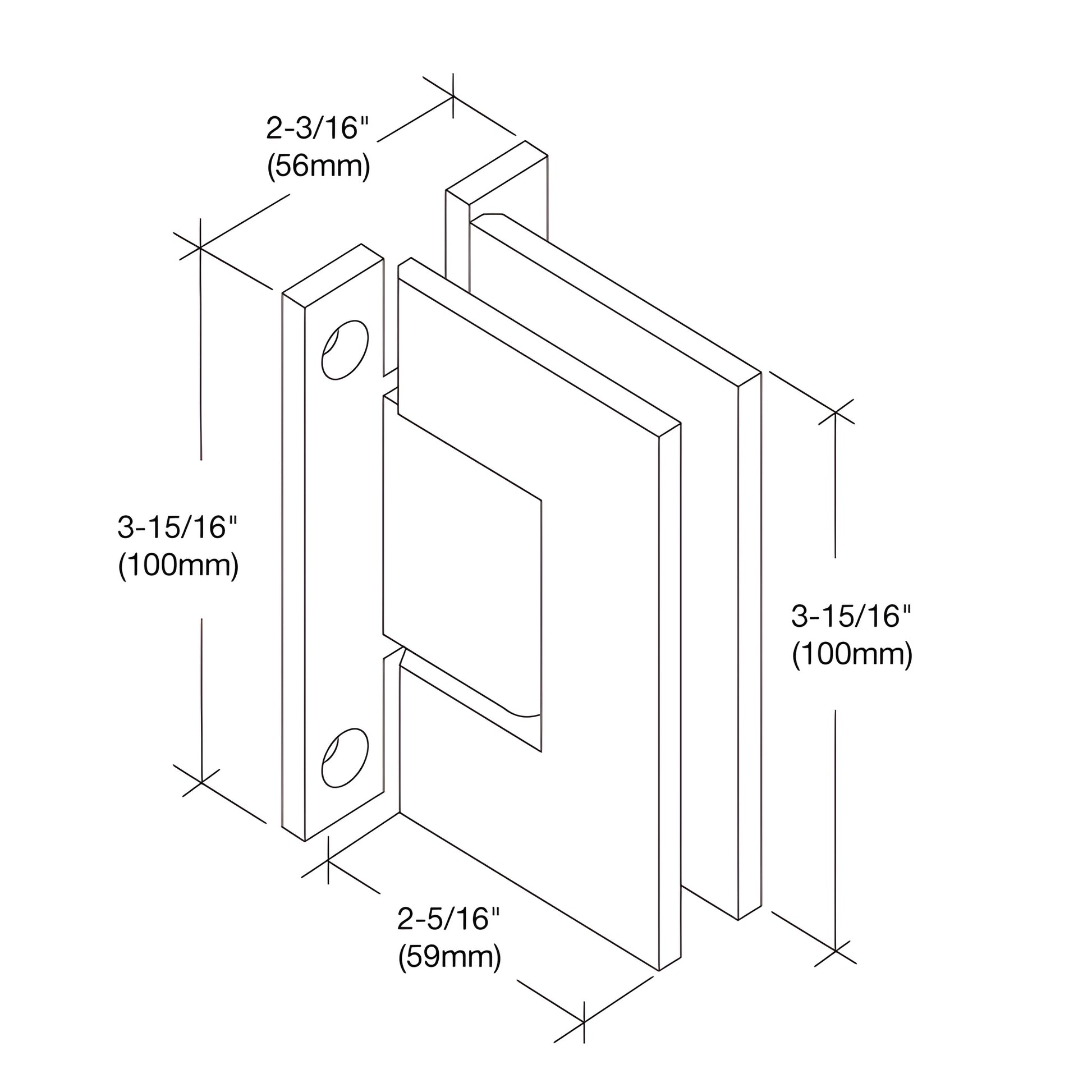

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)
Overview
- New H-shaped wall plate design for tighter glass-to-wall clearance
- Same Vienna quality and durability with an updated contemporary look
- Square profile offers a modern, minimalist aesthetic for glass shower doors
The Vienna product line now features an H-shaped wall mounting plate that lets installers position glass closer to the wall, increasing flexibility for low-clearance glass shower doors and other frameless glass applications. SKU: V1EH037BR — ideal when you need precise glass-to-wall clearance without sacrificing Vienna performance.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For care and maintenance, view the Brass Finish Disclaimer in the Technical References section below.
For pricing, availability, or installation guidance on the Vienna H-shaped wall plate (V1EH037BR), contact CRL or add to your quote now.
