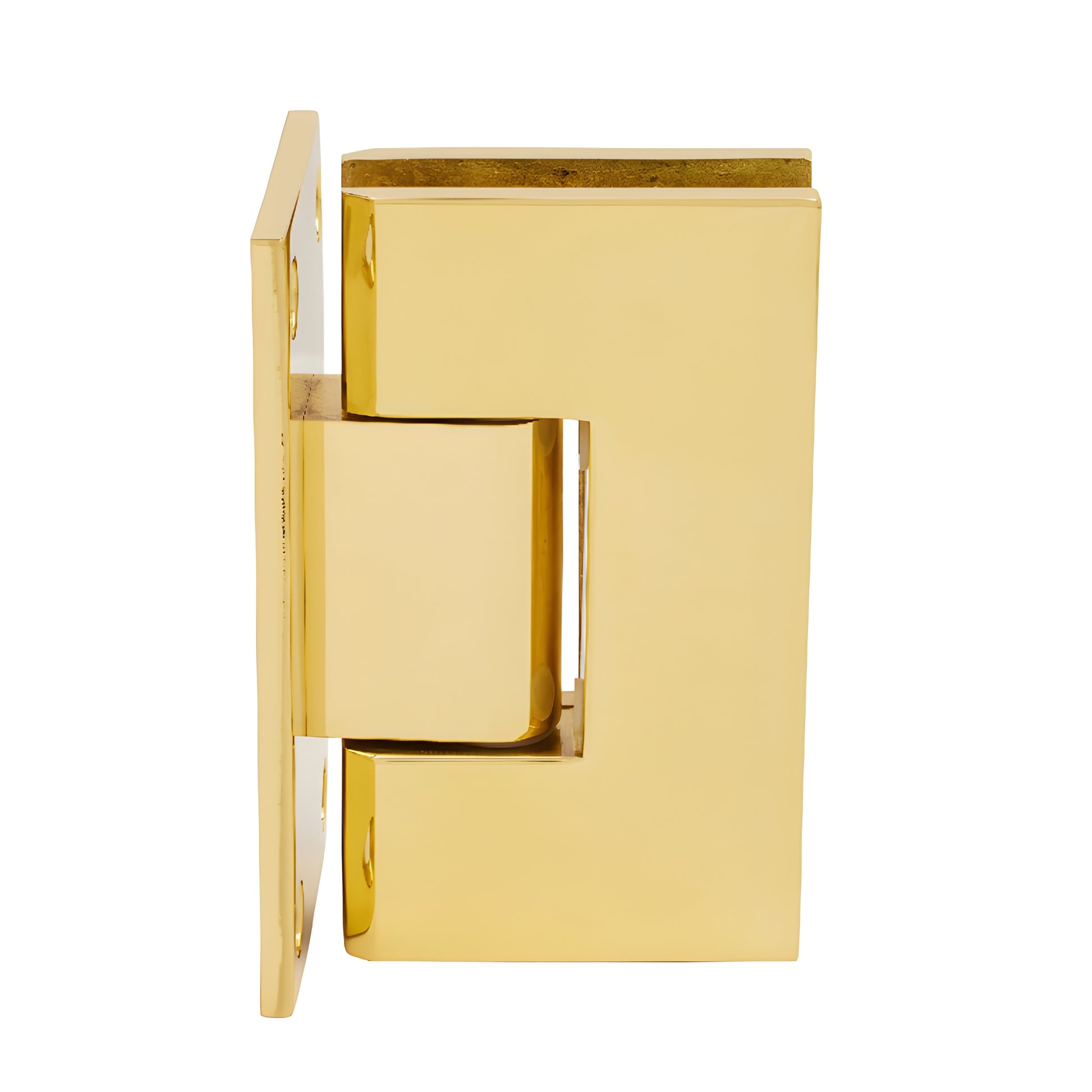

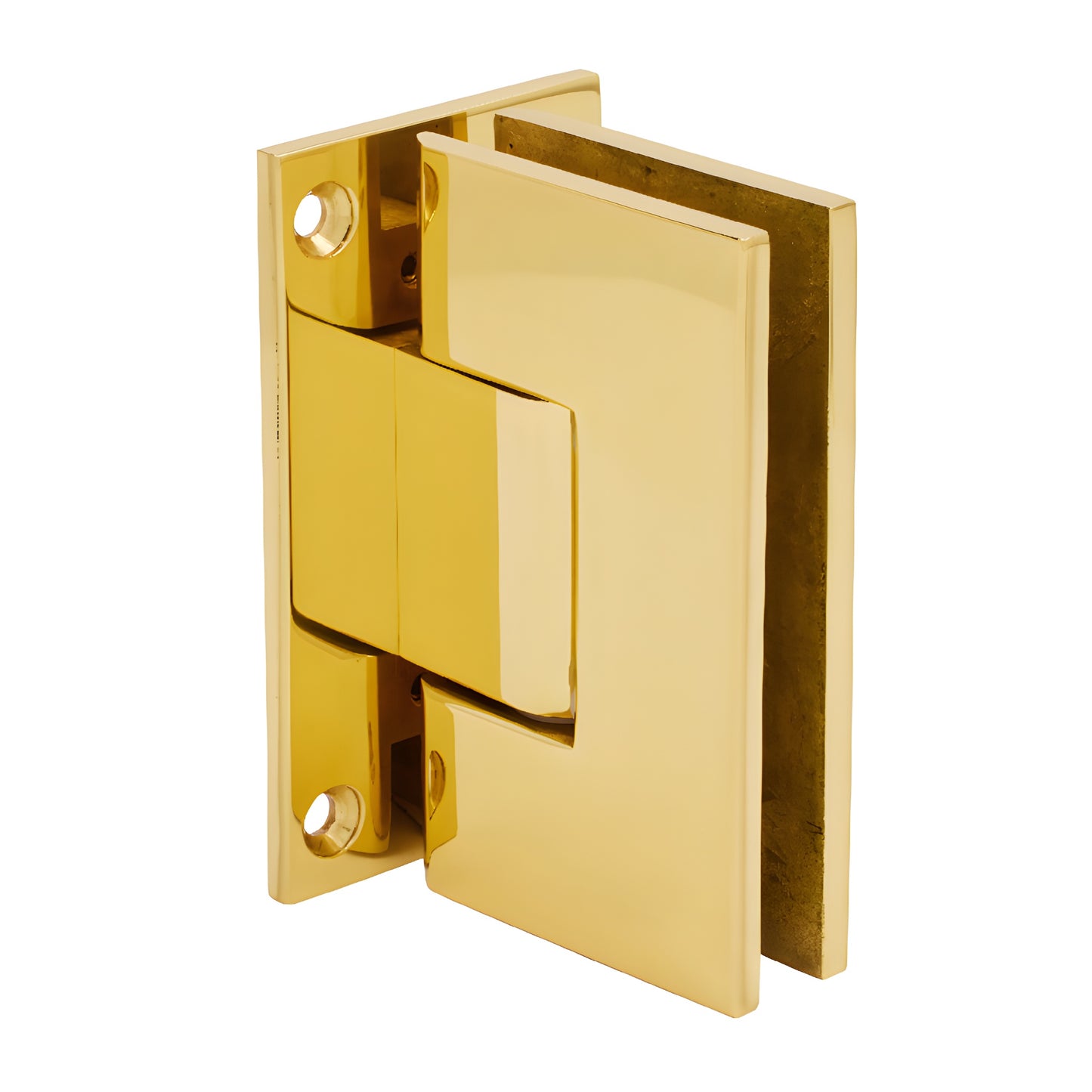

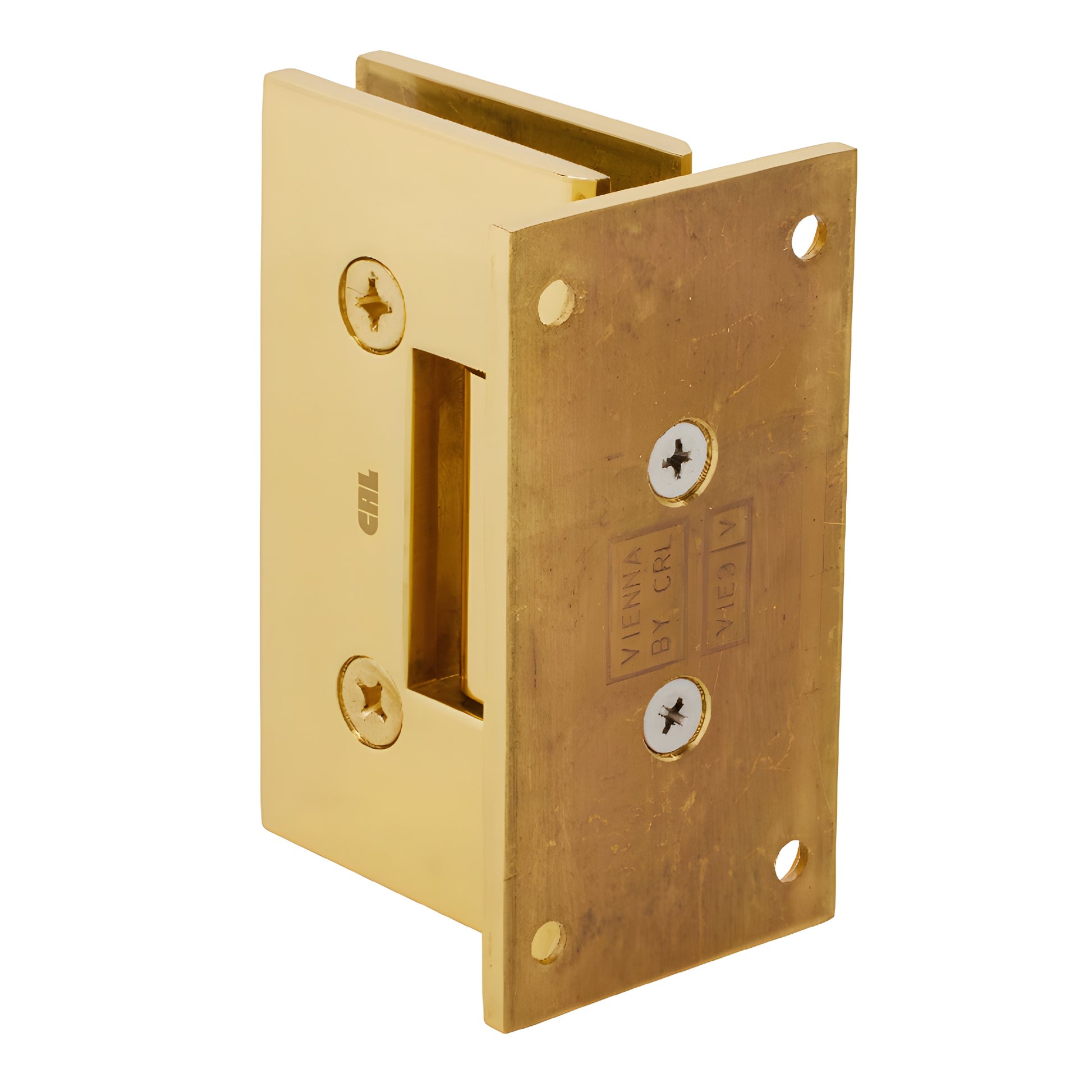

CRL Vienna 537 Polished Brass 5° Pre-Set Wall-Mount Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• 3 year warranty
• 5° pre-set model (factory set for tighter 5° closure into shower interior)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E537BR) are heavy-duty shower door hinges engineered for wider, heavier glass doors that standard hinges cannot reliably support. Two internal steel pins provide mounting flexibility: leave both pins in place for "mouse-ears" cut-outs, or remove them for rectangular, square-corner cut-outs (compatible with some competitive templates). These Vienna shower door hinges offer increased durability and reliable performance for heavy glass shower doors and frameless shower enclosures.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Pre-set models are factory-set to 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to change active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° does not achieve the desired closing position.

Using two hinges with 3/8" to 1/2" glass (10–12 mm), each hinge set supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges, capacity increases to 140 lbs (63 kg) for the same maximum door width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request; contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval
