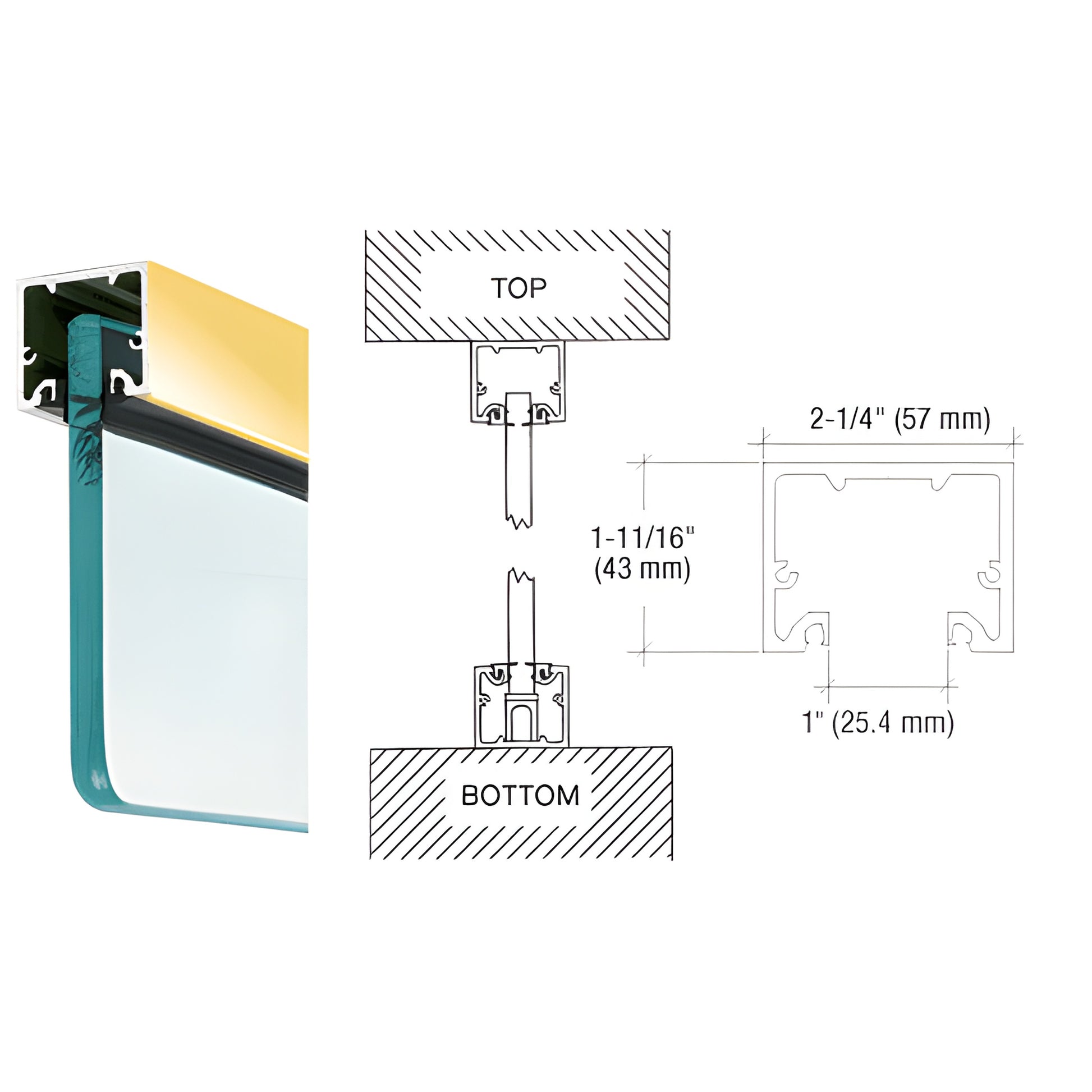

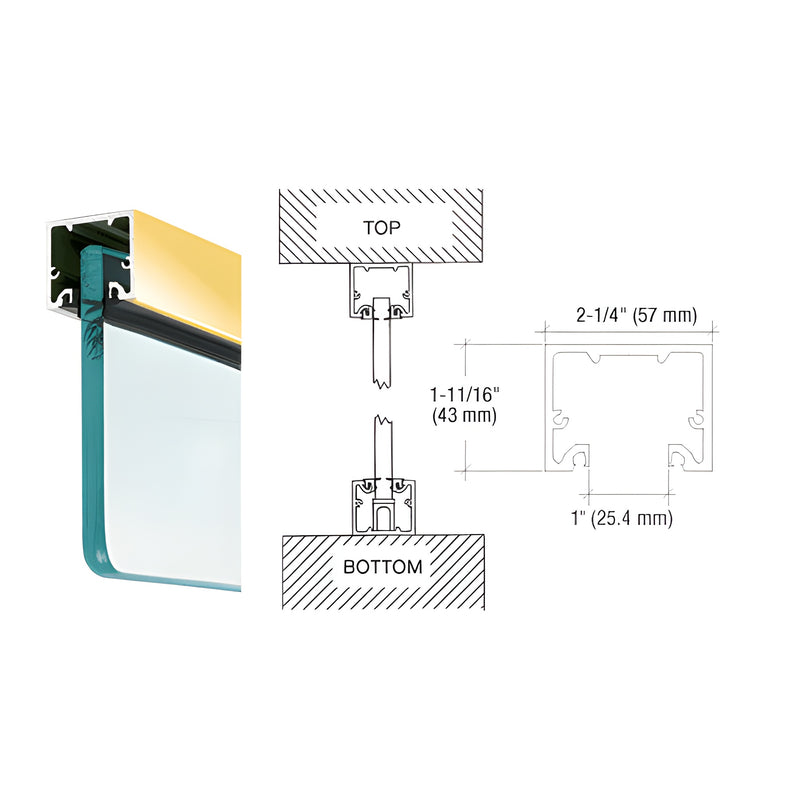

CRL Polished Brass Wide U-Channel 3/4" Glass - Roll-In Glazing Gasket
CRL Polished Brass Wide U-Channel 3/4" Glass - Roll-In Glazing Gasket
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH3PBCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/4 in. (19 mm)
Height
1-11/16 in. (43 mm)
Length
Specify
Width
2-1/4 in. (57 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert for secure glass door installation
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing—ideal for commercial storefronts and glass partition systems
- Special sidelite rail adapter enables a continuous sight line when used with the narrow header for seamless glass-to-frame alignment
This CRL Wide U-Channel and Narrow Header (SKU: NH3PBCL) was developed for three primary applications: as a U-channel matching our Sidelite and Door Rails; as a narrow header that accepts a top free‑swinging pivot to secure the top of doors; and as part of an Even Sight Line System, where the fabricated narrow header is secured to the opening and the sidelite rail is attached using the 1/4" (6.4 mm) header saddle to create a continuous sightline. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate the need for field fabrication. For technical assistance or project-specific recommendations, contact our Technical Sales Department.
Brass Finish Advisory:
Although durable, brass oxidizes over time and can develop a tarnished appearance regardless of packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Need project help or a quote for NH3PBCL? Contact CRL Customer Service or our Technical Sales team to get specifications, lead times, and pricing.
Specifications
Cleaning & Maintenance
