- Matches Width of Door and Sidelite Rails and Accepts Roll-In Gasket, Top Pivot Block and Flush Snap-In Insert
- Available in Stock Lengths, Fabricated Headers, or Headers with Side Pockets for "Lift and Drop" Panel Glazing
- Special Sidelite Rail Adapter Allows for a Continuous Sight Line Using the Sidelite Rail in Conjunction with the Narrow Header
This

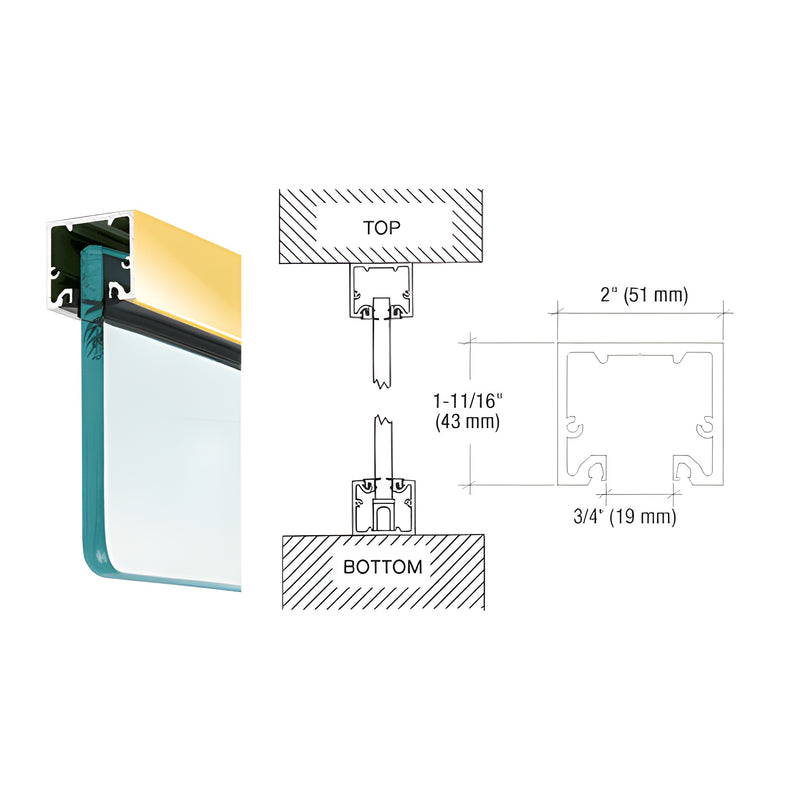

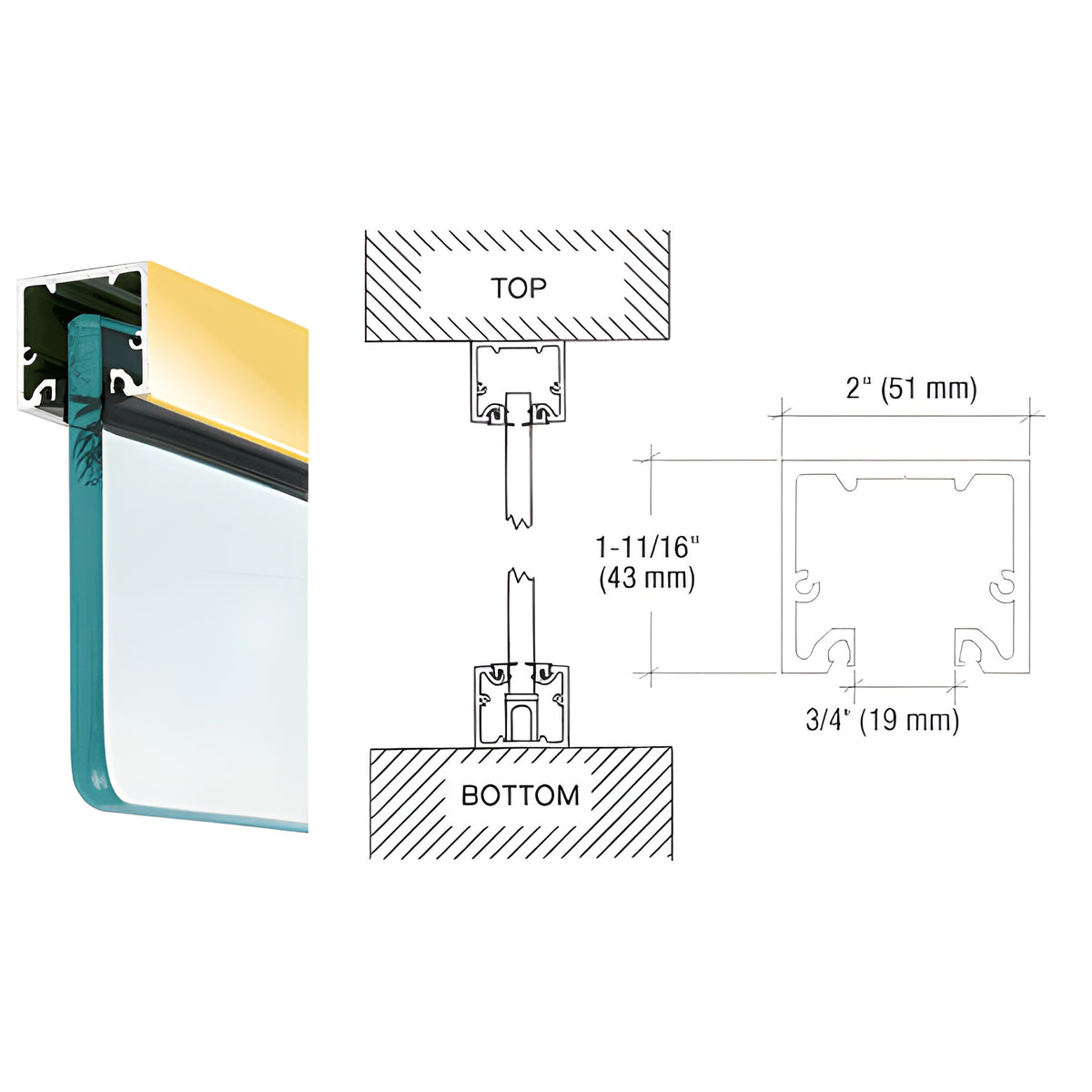

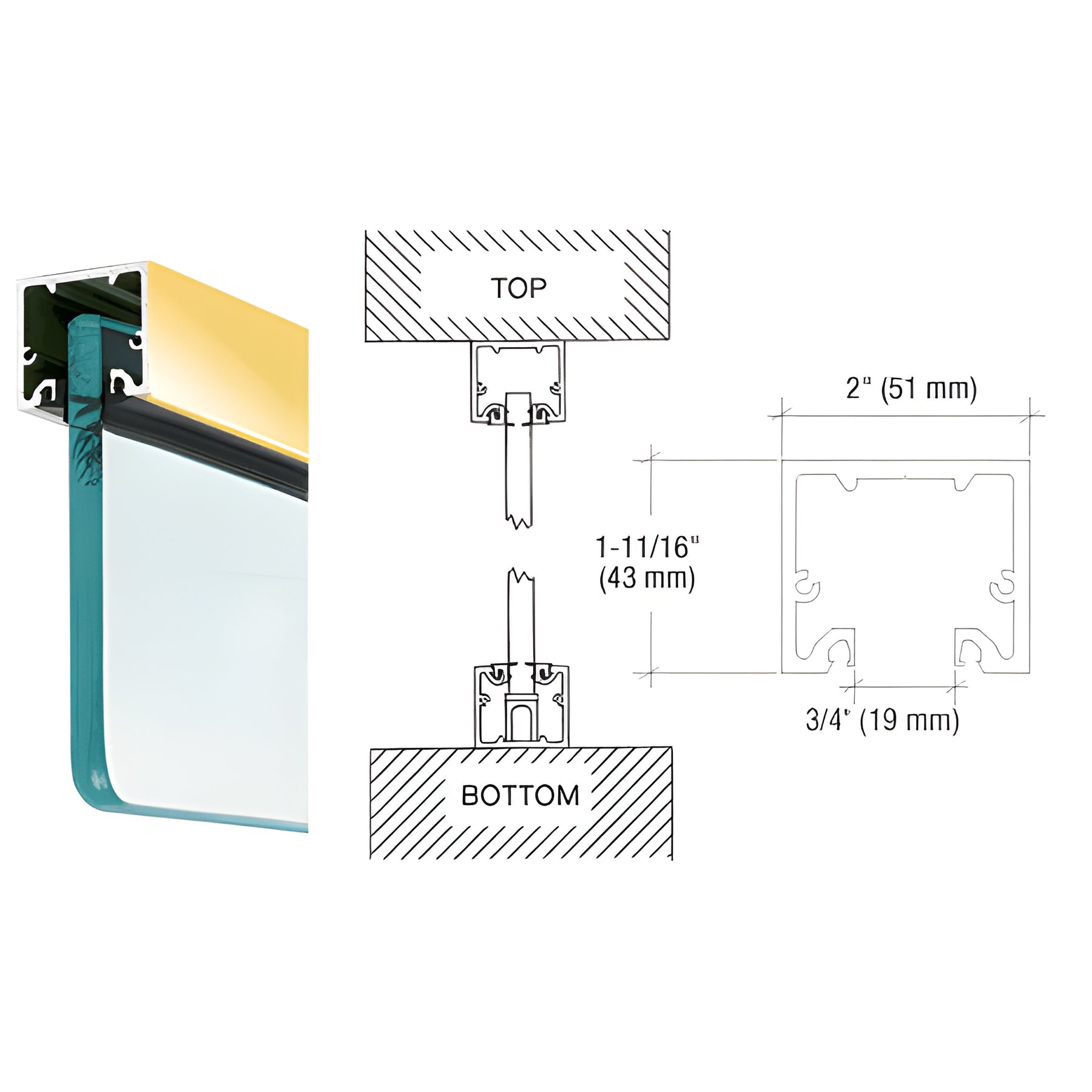

CRL Wide U-Channel and Narrow Header
was developed with three uses in mind: As a U-Channel that would be the same width as our
Sidelite and Door Rails
; as a Narrow Header that is the same width as our
, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication. For additional information, contact CRL Technical Sales Department.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
