CRL Z-Series Polished Brass Square Glass Clamp for 1/4 & 5/16 Glass

• For 1/4" to 5/16" (6 to 8 mm) glass
• Ideal for partitions, mezzanines, wind breaks, railings, and commercial glass applications
• May be used on wood or metal radius
• Use monolithic tempered glass
• Custom painted finishes available upon request

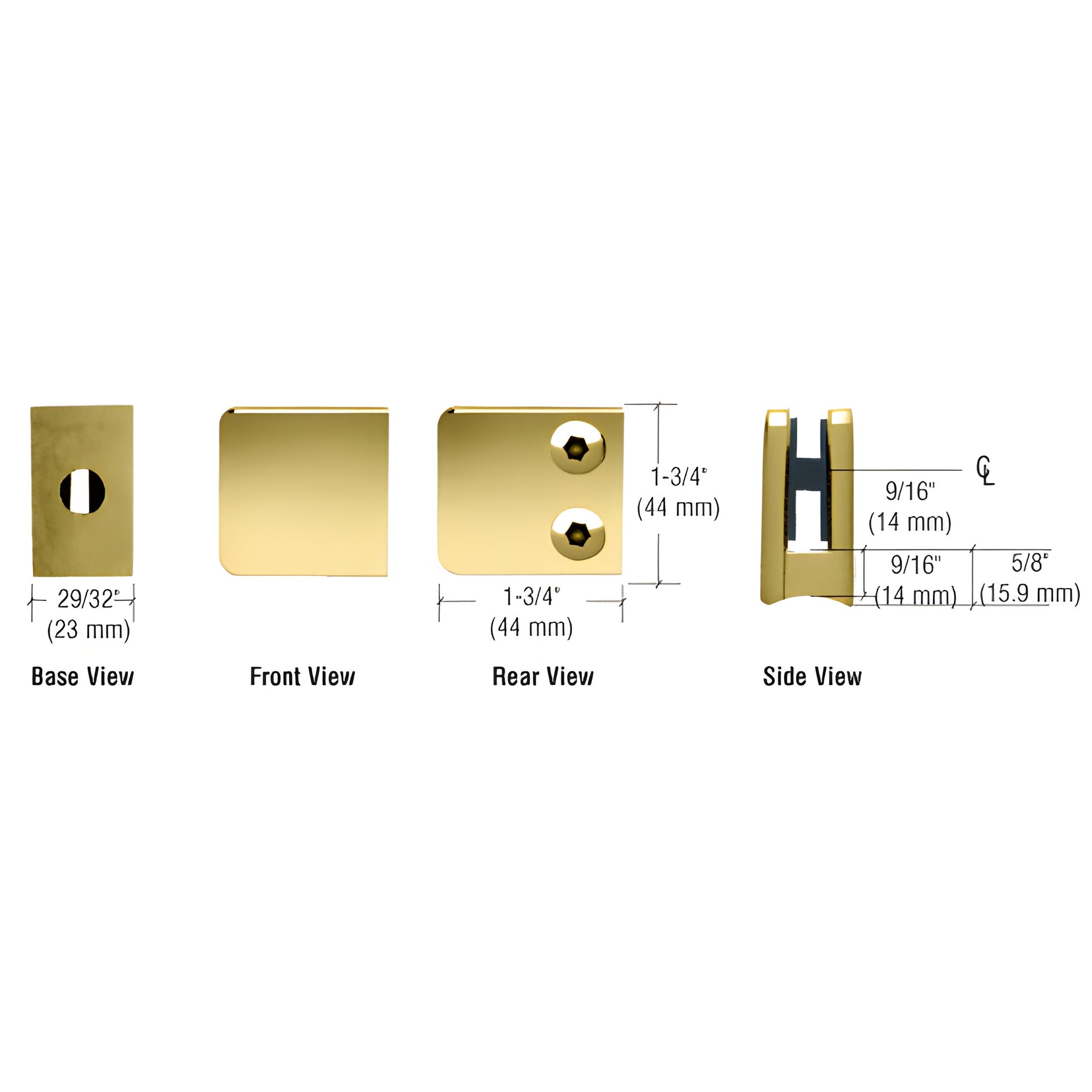

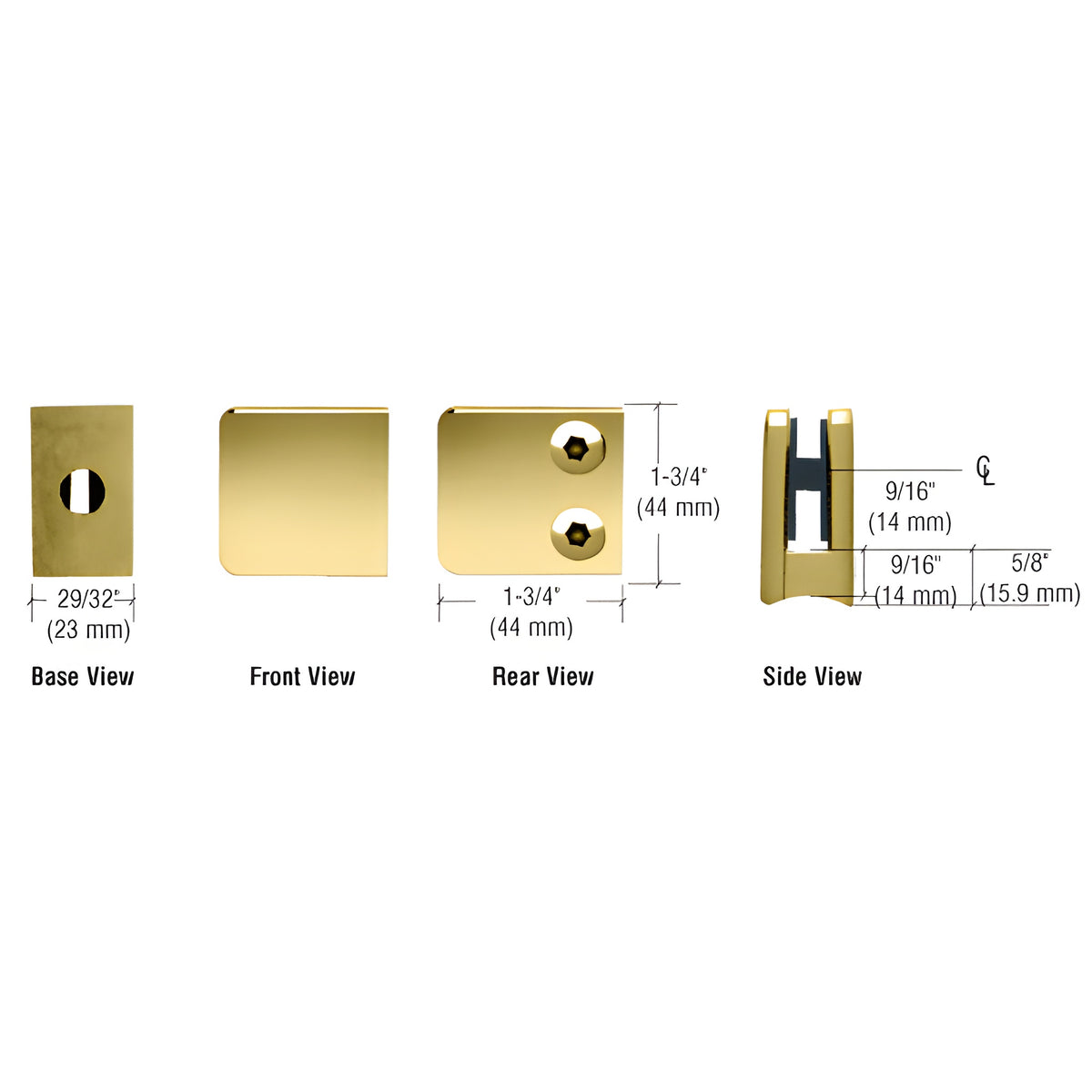

CRL Z-Series Clamps (SKU Z130BR) are available in round or square shapes and in economical zinc or durable stainless steel. The Z130 series glass clamp fits 1/4" to 5/16" (6–8 mm) glass and features a radius base designed for 2" (51 mm) tubing. Each clamp includes rubber gaskets and a steel pin to prevent glass slippage when a notch is drilled. Popular uses include glass partitions, mezzanines, wind breaks, and railing systems where a secure glass clamp for 6mm glass is required. Use CRL Cat. No. ZB0LT (Bolt) or ZRNUT (Rivet-Nut) to secure the clamp to tubing. A variety of finishes are offered to match commercial decor.

Glass Fabrication: 1/2" (12 mm) notch required if using the provided steel pin.
Replacement Hardware: CRL P612 replacement screws.

Product Warning:
For interior and exterior installations, CRL recommends pinning each glass panel when the bottom edge does not support the panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Brass Finish Advisory:

Need help choosing the right Z130 glass clamp for your project? Contact CRL Customer Service or order SKU Z130BR today.
