CRL Z-Series Polished Brass Square Glass Clamp - Fits 1/4" & 5/16"

• Fits 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets: Cat. No. Z14SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

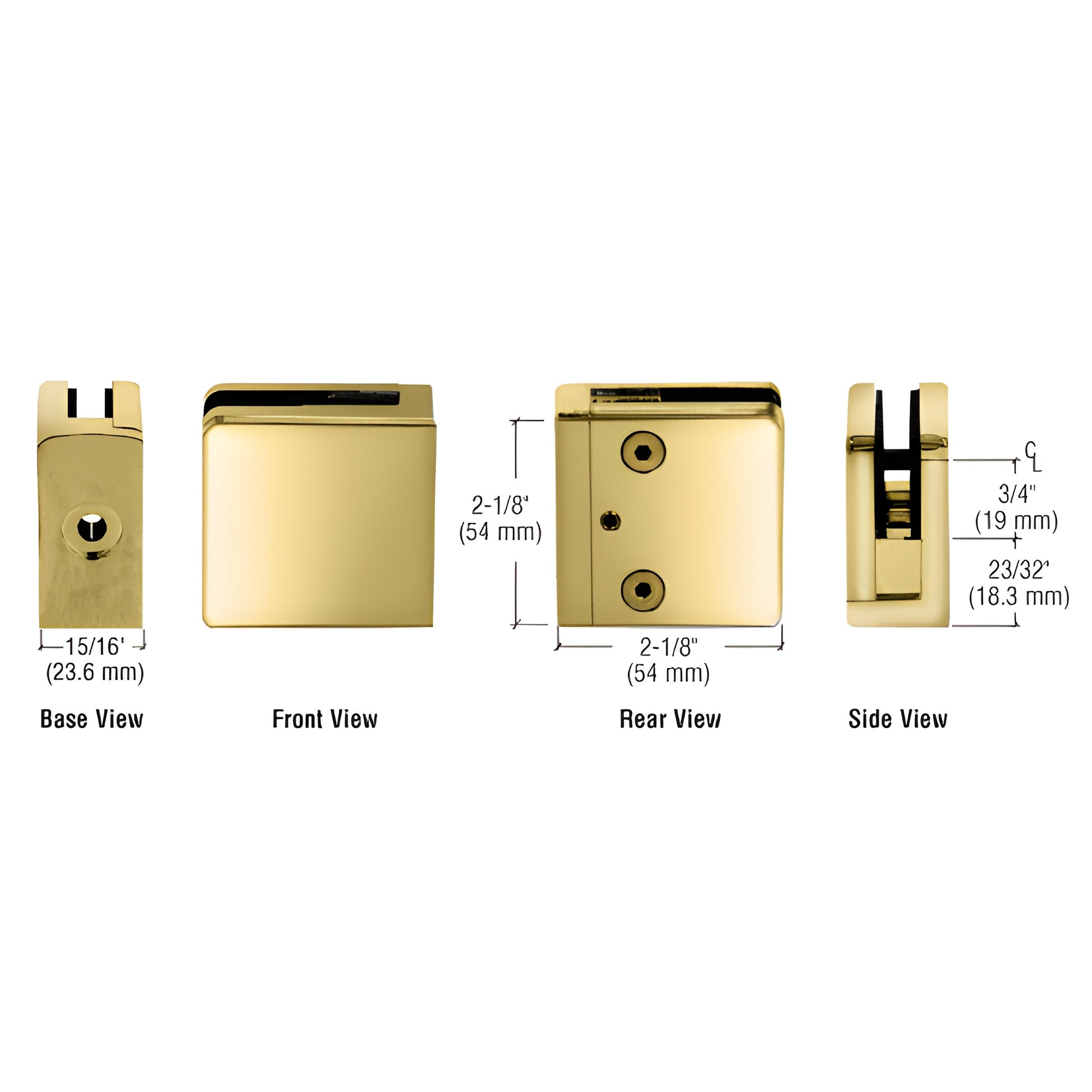

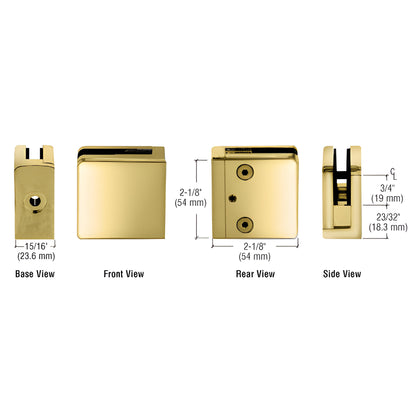

CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z806BR) — a compact, durable square-base glass clamp engineered for 1/4" to 5/16" (6–8 mm) glass. Available in zinc or stainless steel, this Z-clamp is designed for secure installation on square tubing or other flat surfaces and is ideal for interior and exterior railing, partition, mezzanine and windbreak applications.

For securing the clamp to thin-wall tubing (less than 1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool and the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: 1/4" and 5/16" (6 and 8 mm)
• Base design: Flat
• For use with: Square tubing or other flat surfaces
• Material options: Zinc or stainless steel. For exterior durability choose stainless steel or powder-painted zinc.
• Glass fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) hole required when using the steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) hole required when using the steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement screws: CRL ZCS5X5BR

Product warning: For interior installations where the glass bottom edge is not supported, CRL recommends pinning each glass
