Product Details
- Low Profile End Caps are Ideal for Bypass Sliding Doors
- Several Sizes in Our Most Popular Finishes
- Heavy 3/4" (19 mm) Diameter Tubular Construction (1.5 mil Thick)
- No Metal Washers Creates a Sleek, Continuous Profile
- Use Monolithic Tempered Glass

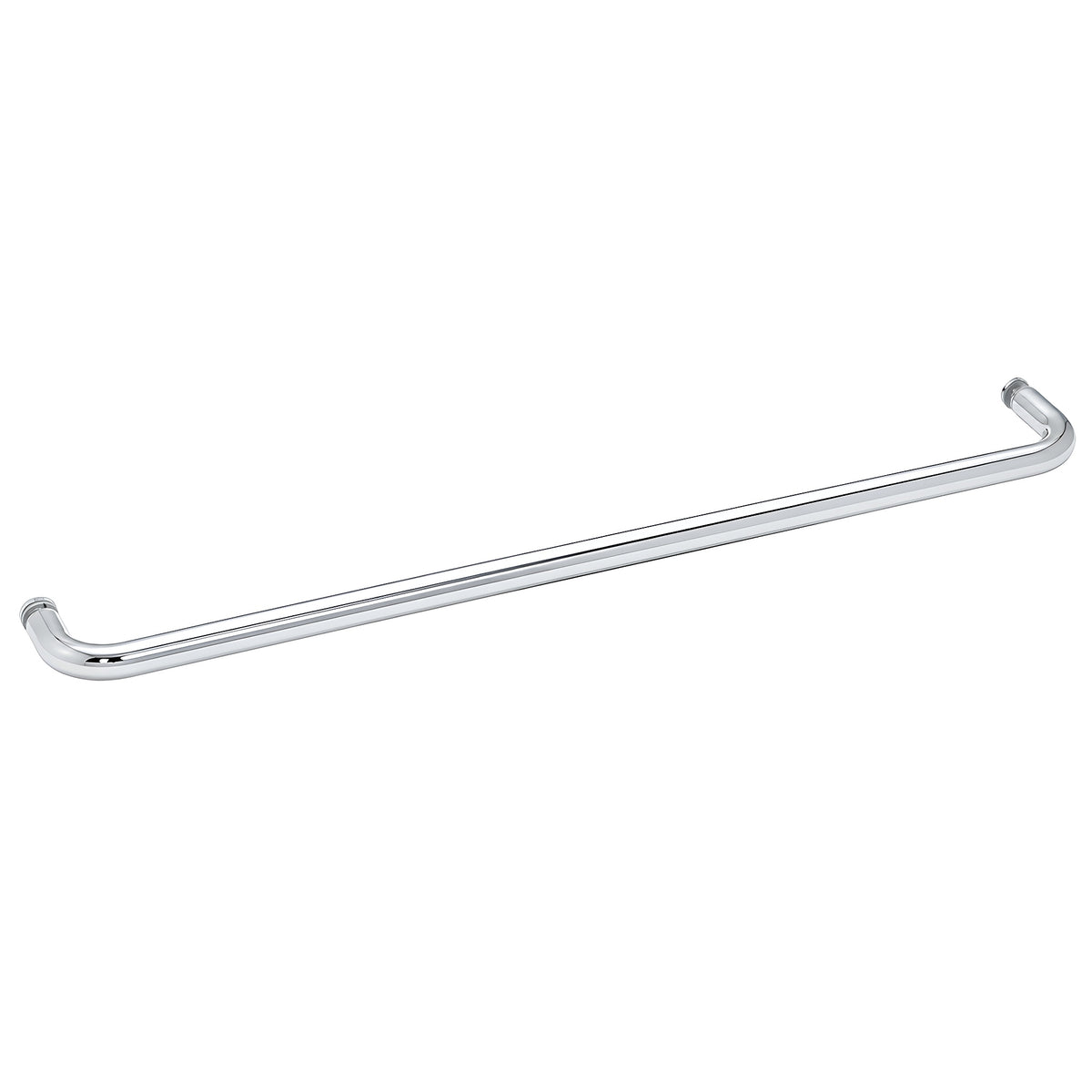

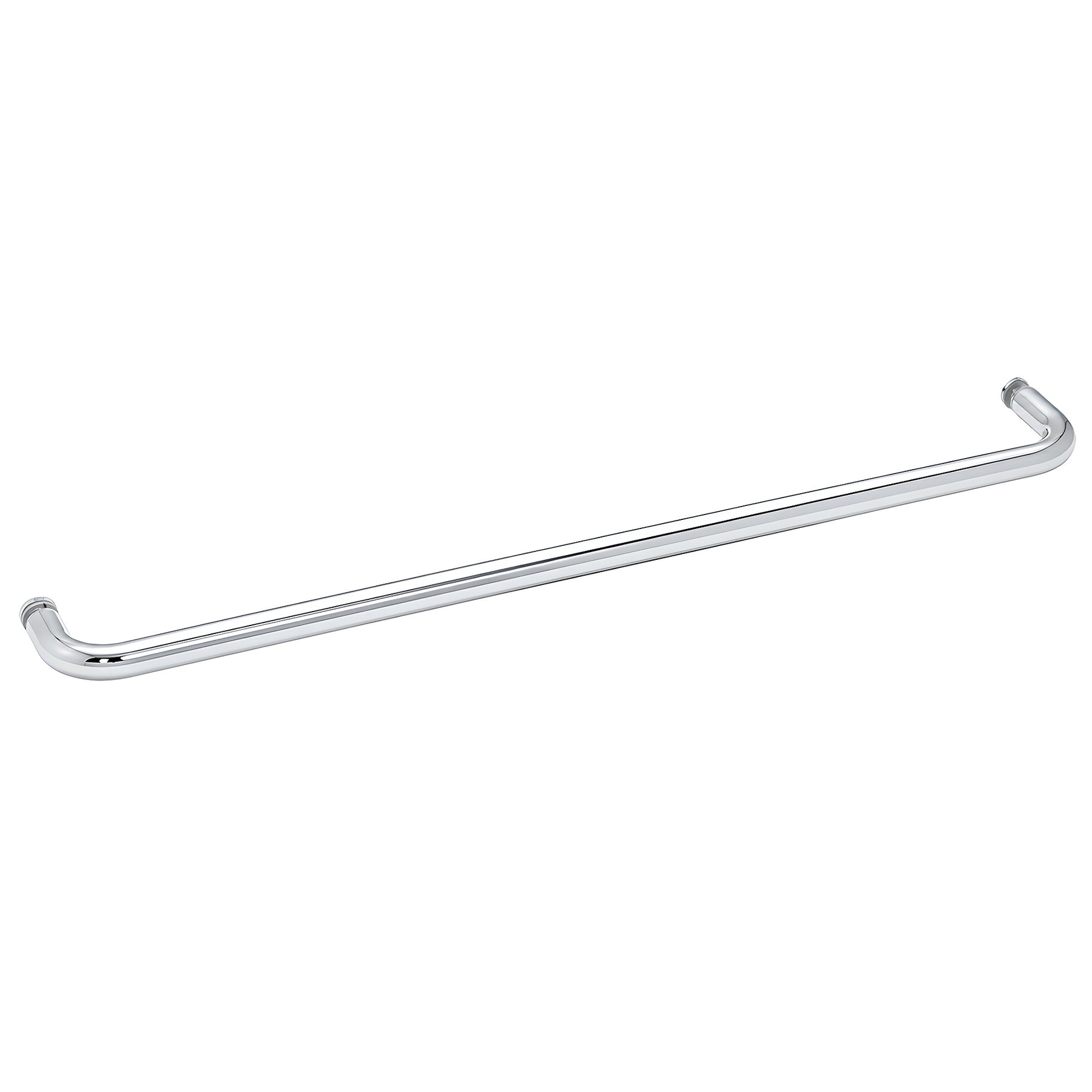

The CRL BM Series of Single-Sided Towel Bars Without Metal Washers are designed for glass mounting on fixed panels or doors. The 1/8" low profile end caps make this an ideal bar for sliding bypass doors as well. The bars are constructed of 1.5 mil thick heavy brass tubing. Plastic washers protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
CAT. NO. BMNW12 12" Towel Bar
CAT. NO. BMNW18 18" Towel Bar
CAT. NO. BMNW20 20" Towel Bar
CAT. NO. BMNW22 22" Towel Bar
CAT. NO. BMNW24 24" Towel Bar
CAT. NO. BMNW26 26" Towel Bar
CAT. NO. BMNW27 27" Towel Bar
CAT. NO. BMNW28 28" Towel Bar
CAT. NO. BMNW30 30" Towel Bar
