CRL Polished Chrome 5-1/8" Tubular Back-to-Back Circular Style Brass Shower Door 3/4" Diameter Pull Handles

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUSDPC575CH
Pack Size1
ConstructionTubular
Design StyleBeveled
Diameter3/4 in. (19 mm)
Enclosure TypeCorner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:Polished Chrome
Glazing Thickness1/4 in. To 1/2 in. (6 mm To 12 mm)
MaterialBrass
Mounting Center To Center5-1/8 in. (130 mm)
Mounting TypeGlass Mount - Back To Back
Opening StyleSlide, Fold, Swing(side), Pivot(floor)
Projection From Surface2-3/4 in. (70 mm)
Style Washer Diameter1-1/4 in. (32 mm)
Style WashersYes

Description

Product Details

  • 3/4" (19 mm) Diameter Brass Tubing
  • Circular Shape Ideal for Matching Softer or Curved Decors
  • Fits 1/4" to 1/2" (6 to 12 mm) Thick Glass
  • Available in Several Popular Sizes and Finishes
  • Use 1/4" to 1/2" (6 to 12 mm) Monolithic Tempered Glass

CRL Circular Style Door Pulls are made of a heavy wall brass tubing to match hinge hardware. Consists of one pull for each side of the door. Brass back-up washers and nylon spacer washers prevent glass-to-metal contact. Available only in 5-1/8" (130 mm) size.

Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There's a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

SPECIFICATIONS:

Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Washers

Glass Thickness Range: 1/4" (6 mm) to 1/2" (12 mm)

Hole Diameter Required: 1/2" (12 mm)

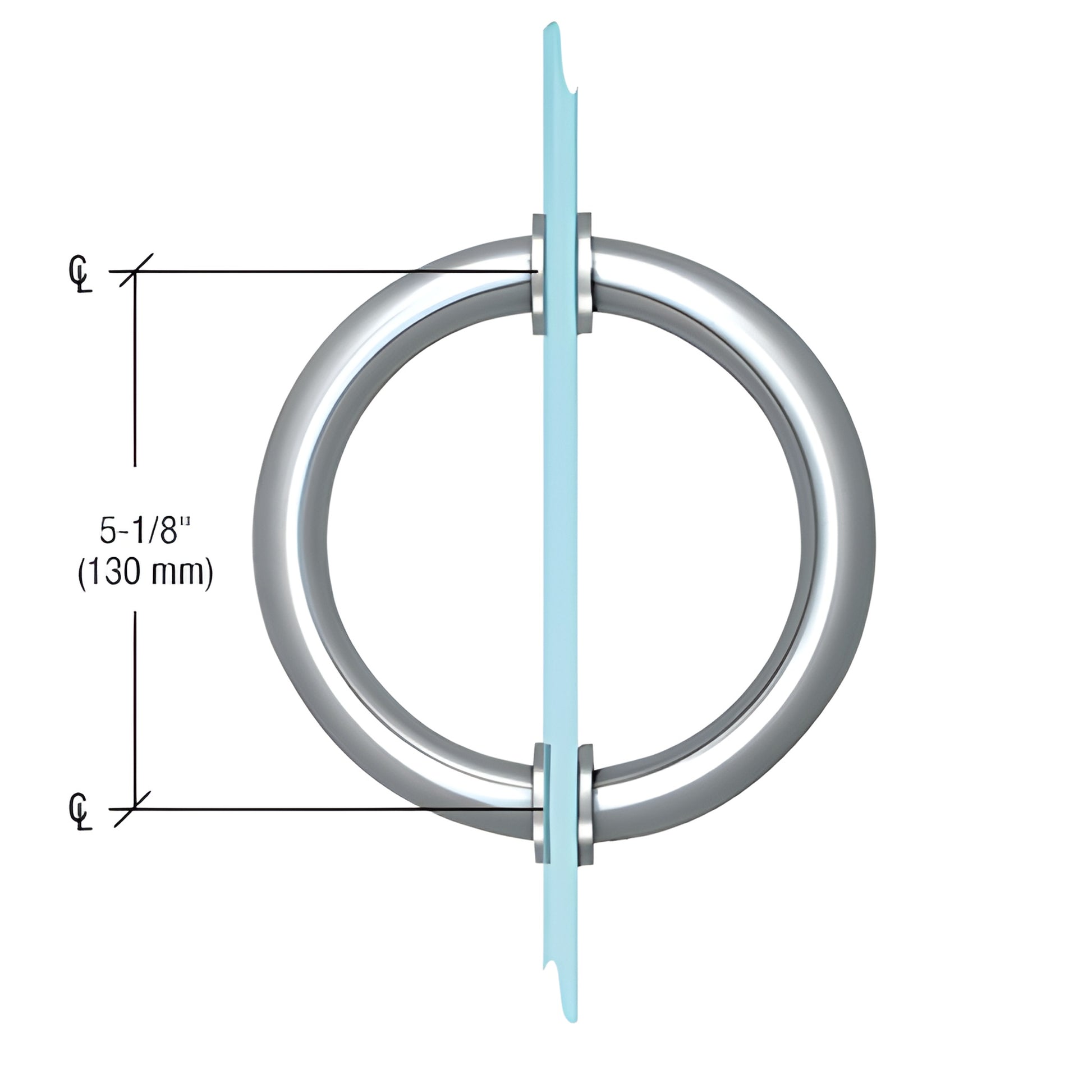

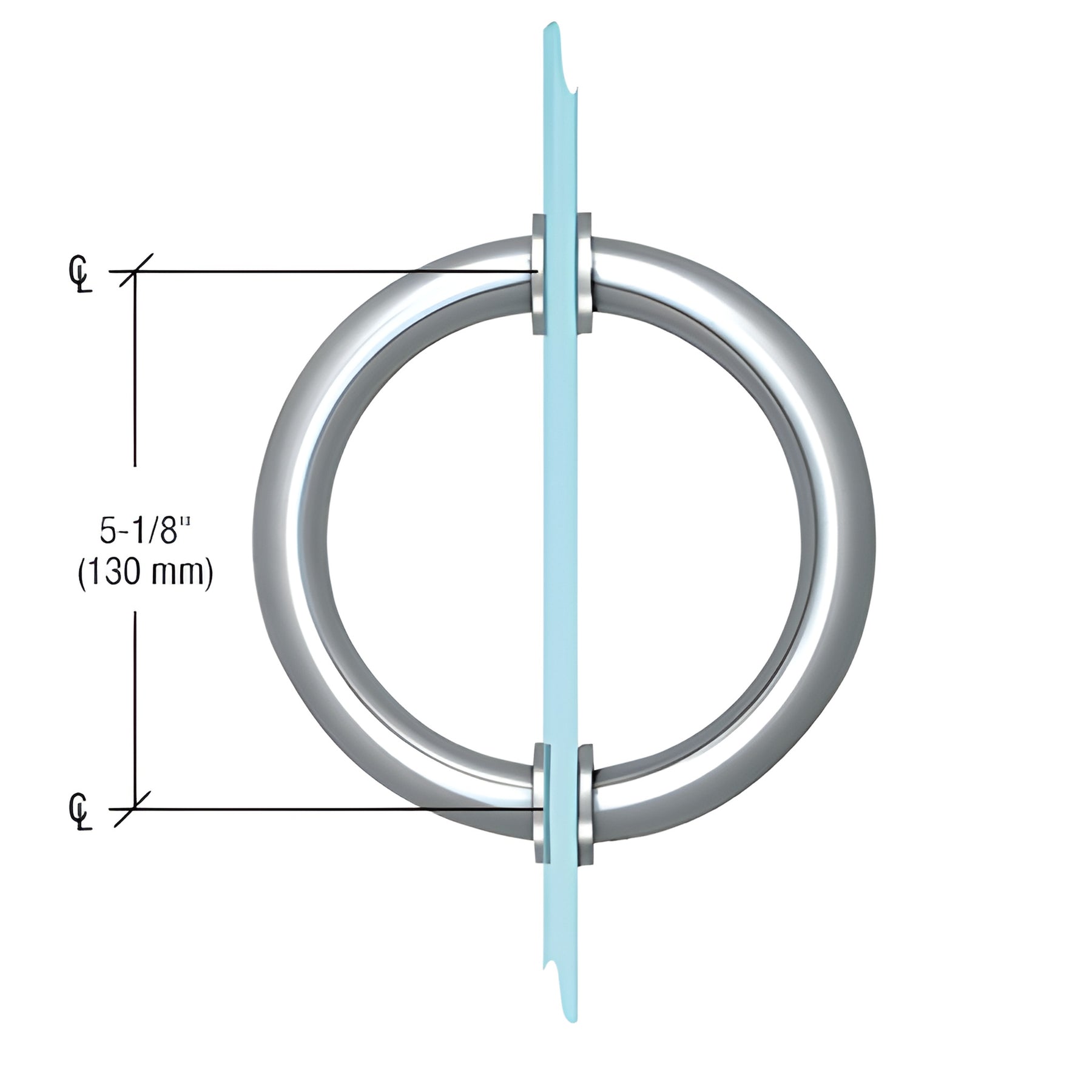

Center-to-Center Hole Spacing: 5-1/8" (130 mm)
