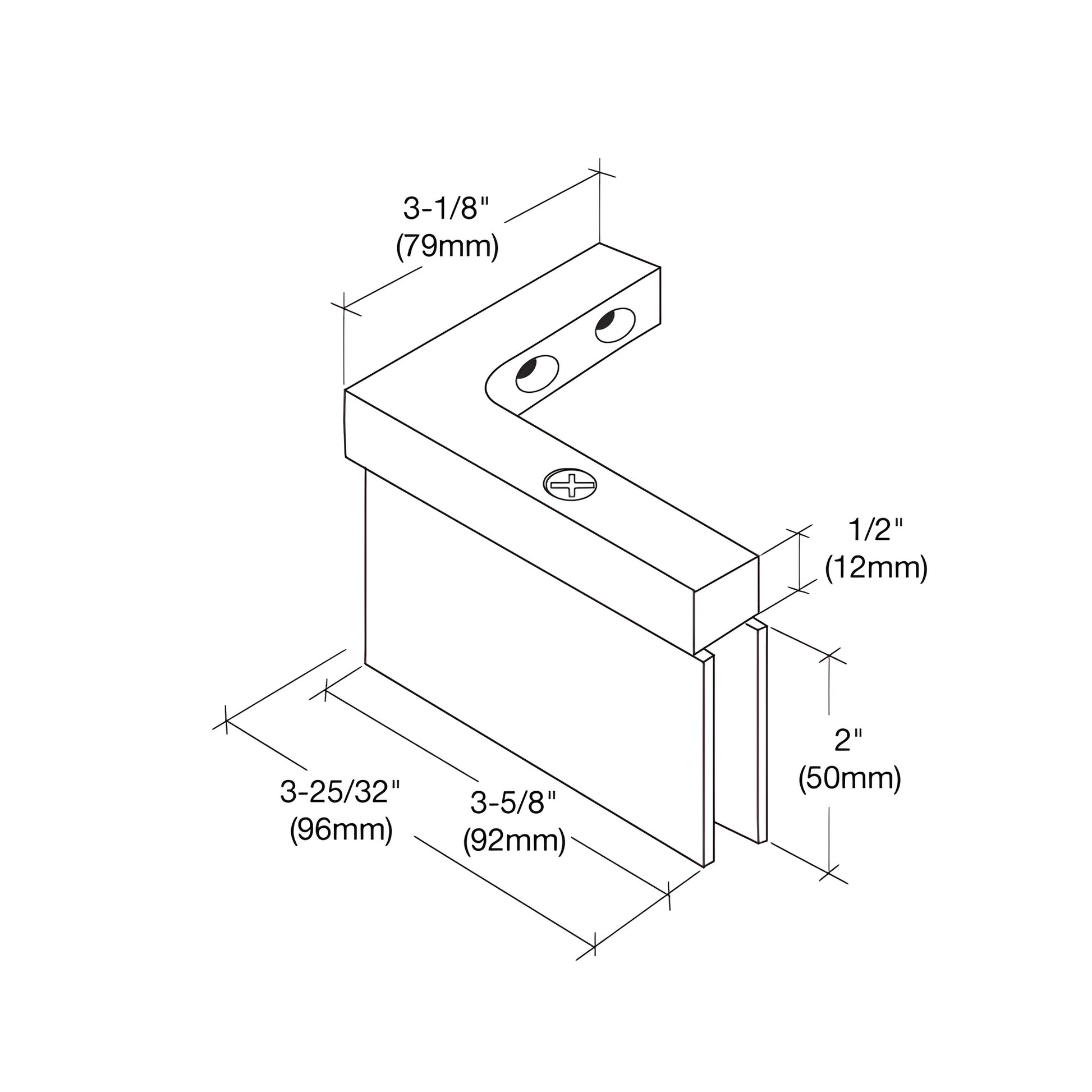

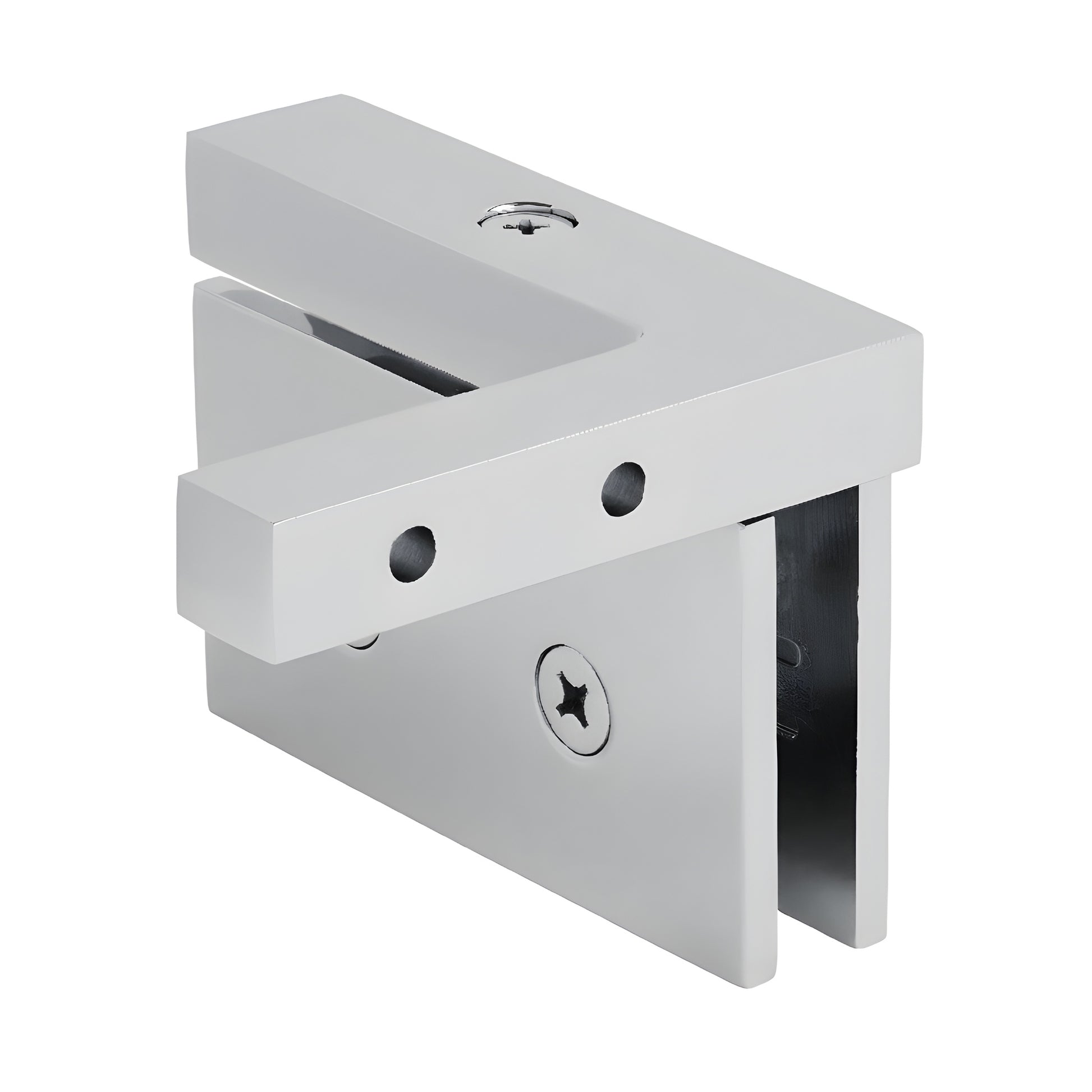

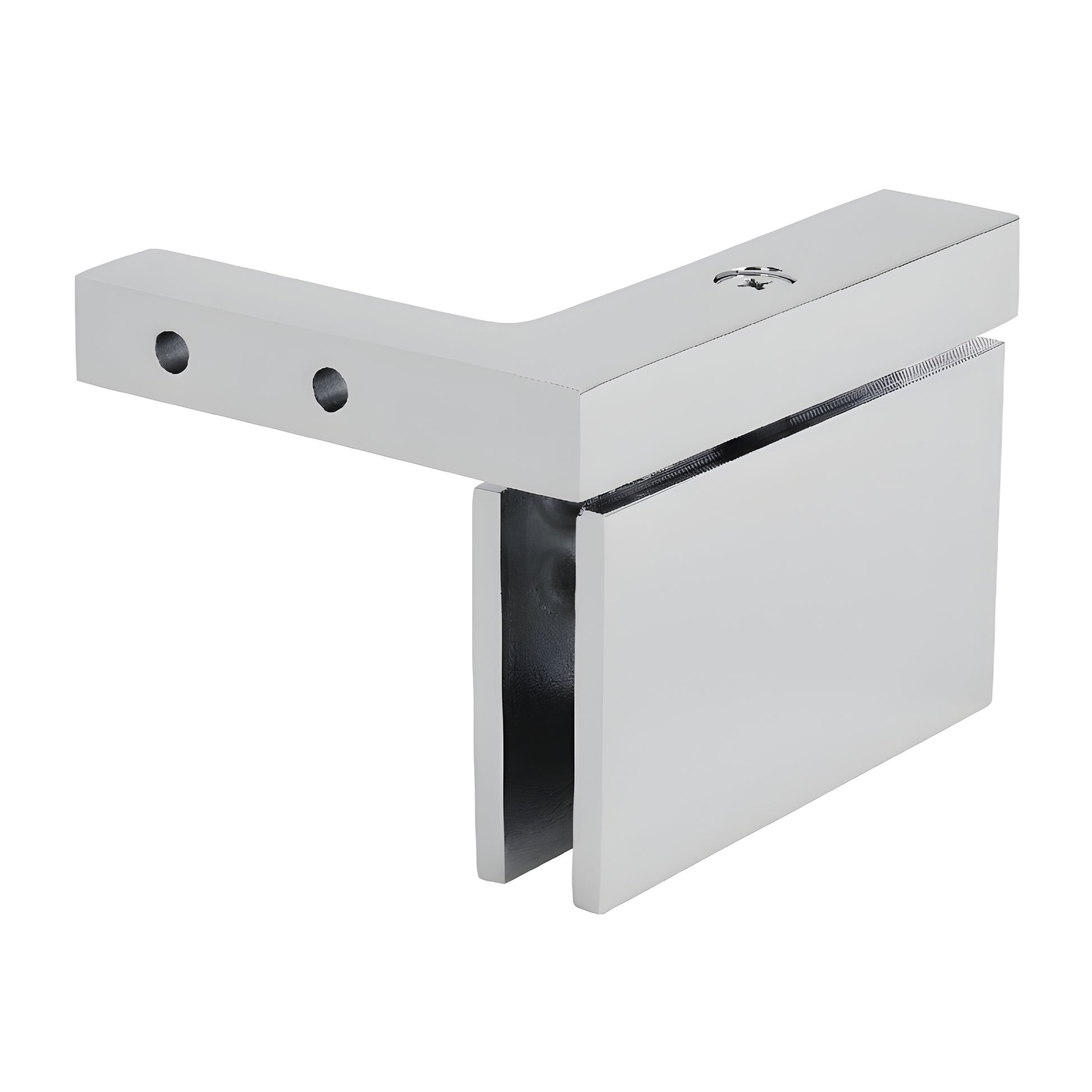

CRL Cardiff Series Polished Chrome Left-Hand Door Hinge

• Offset Bracket Wall Mount (Left hand mount when viewed from outside of shower)
• Available in several beautiful finishes
• 3 Year Warranty
• Use with monolithic tempered glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application options for frameless and semi-frameless shower doors. These Cardiff pivot hinges carry the majority of door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections—making them an ideal choice for left-hand offset bracket wall mount shower doors and other custom glass shower installations. The hinges are self-centering with four springs for maximum retention strength. Optional 5º pre-set pivot pin sets are available separately. The Cardiff Series is also adaptable to the Deluxe Header System for enclosures that do not extend to the ceiling. SKU: CAR05LCH.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) can alter the door closing position by 5º. Pivot pins may be installed prior to or retrofitted after installation. Sold as a set of two (top and bottom). Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
