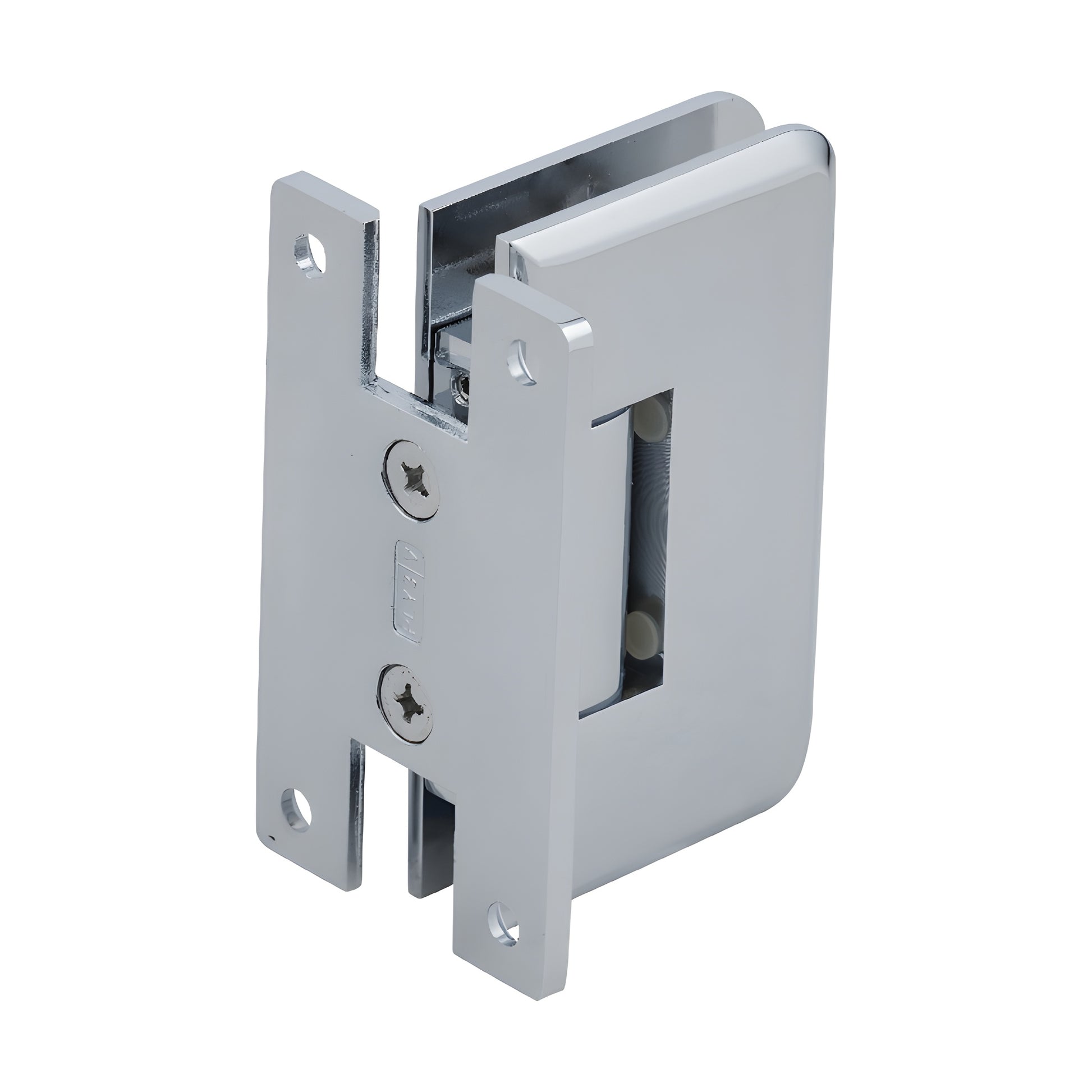

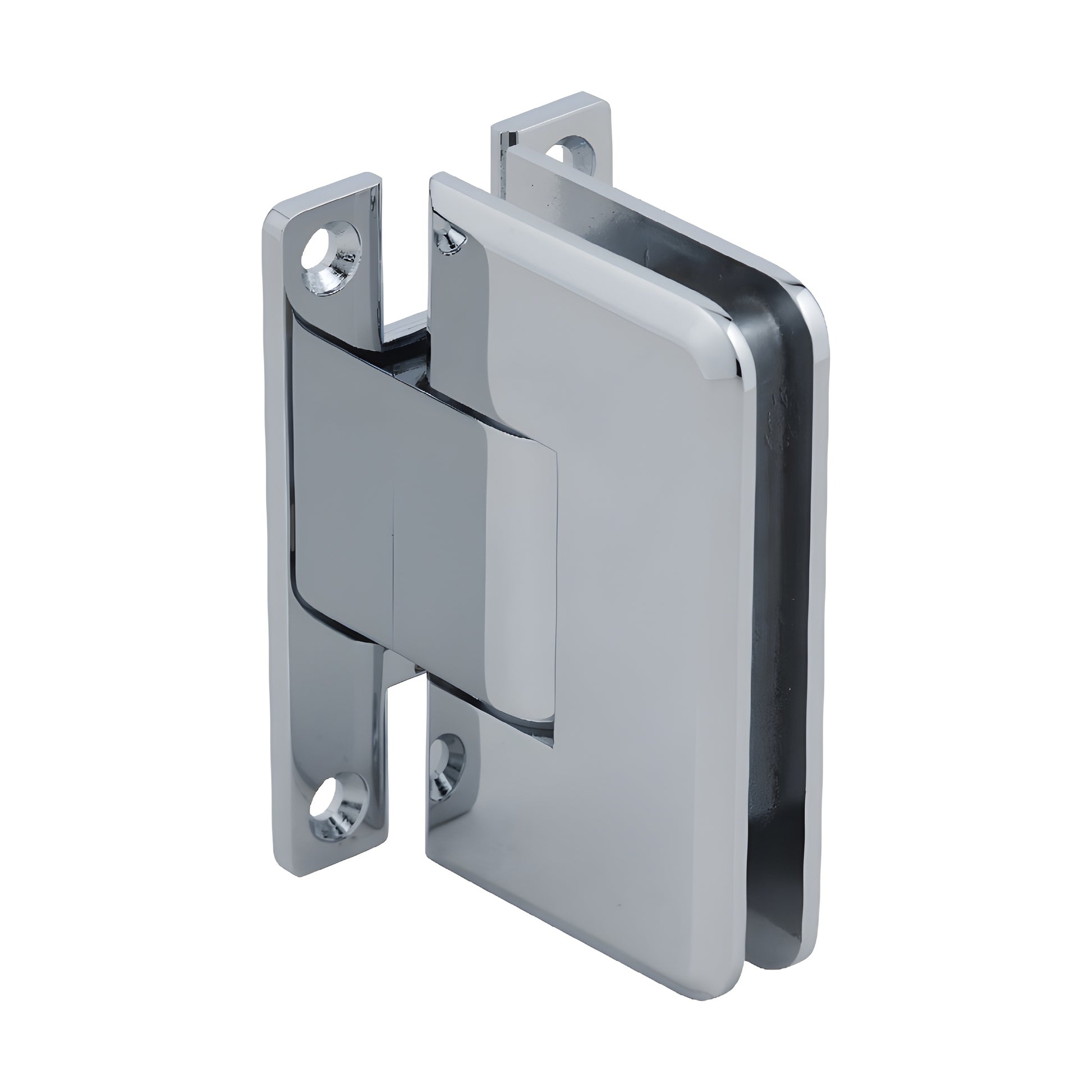

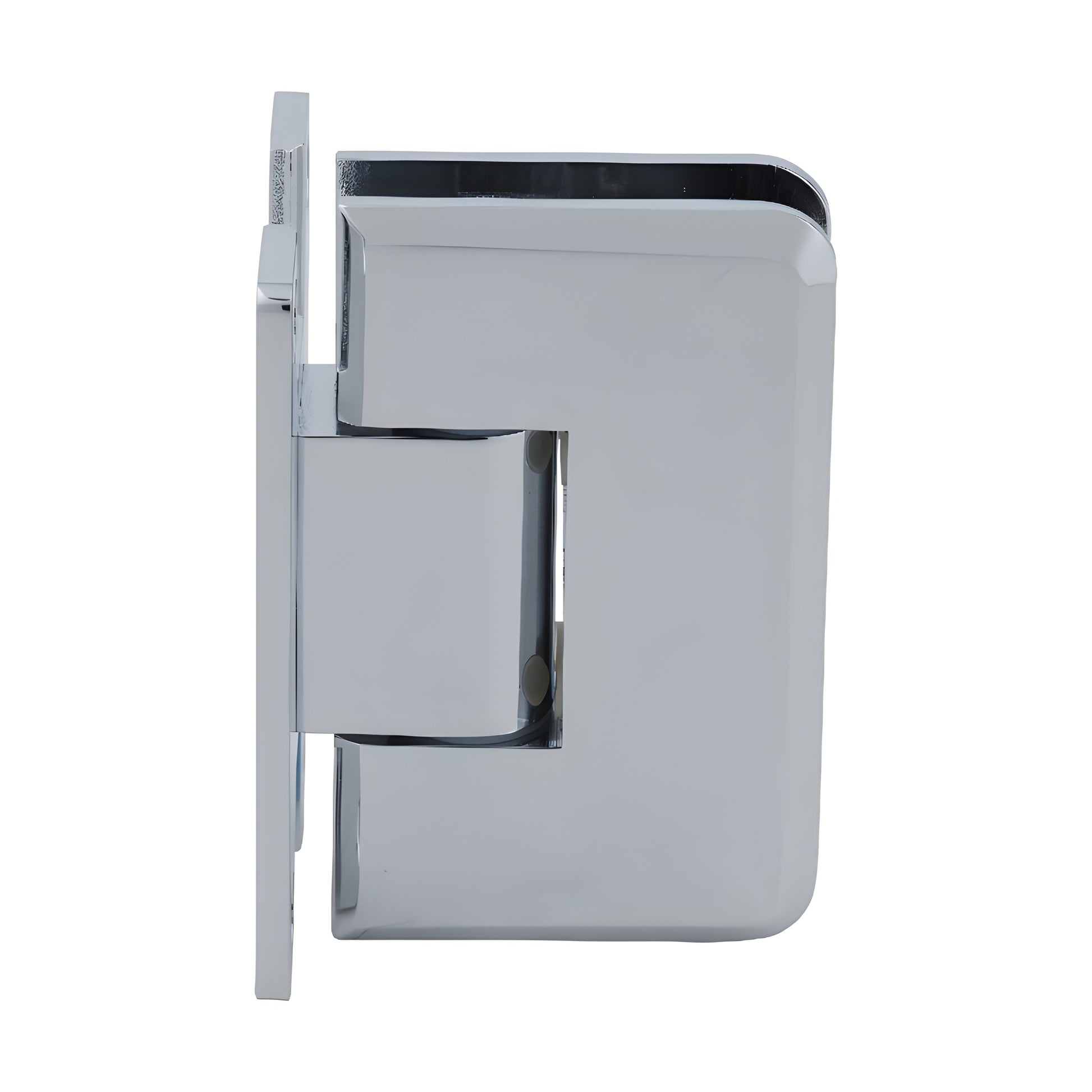

CRL Plymouth Polished Chrome Wall-Mount H Back Plate Hinge

• An excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Wall-mount and 180° glass-to-glass models available
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Plymouth Series Hinges — SKU: PLY037CH support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m) using only two hinges. These heavy-duty shower door hinges create a clean frameless aesthetic by minimizing visible hardware. They use an integrated stiffening beam to reduce clamping plate flex for exceptional holding power and increased self-centering force. Heat-treated stainless steel springs improve durability. Stocked in six popular finishes; custom finishes available.

Important: Do not use three hinges. Maximum two hinges per door. Do not exceed door weight or width capacities. Glass fabrication is required.

Using two hinges: With 3/8" to 1/2" (10–12 mm) glass and a 39" (1 m) door width, two hinges will hold up to 140 lbs (64 kg).

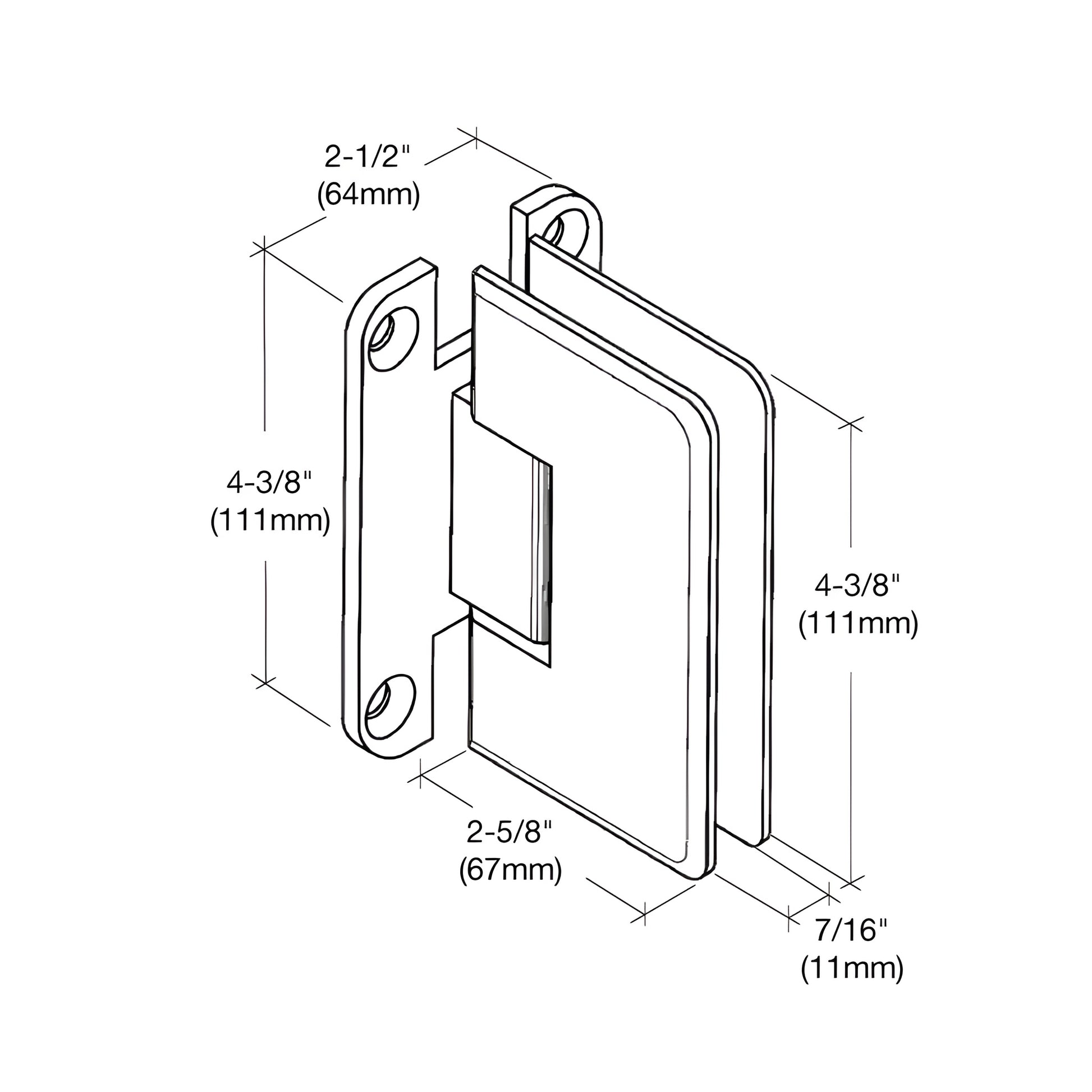

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
